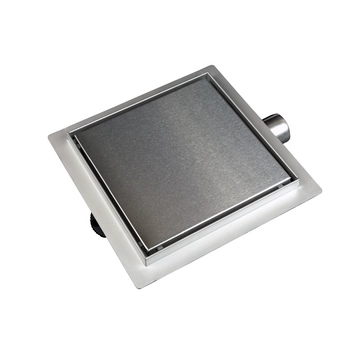

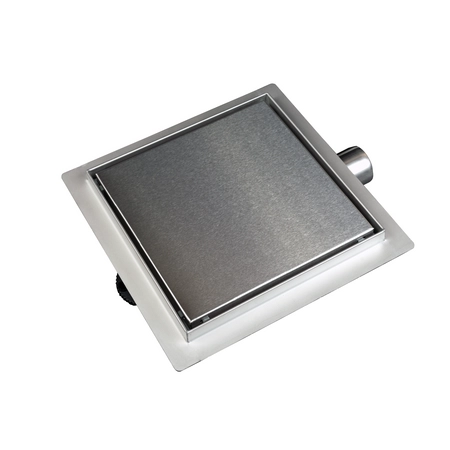

Odpływ podłogowy kwadratowy Balneo SQ-Drain 15 x 15 cm dwustronny ze stali nierdzewnej szczotkowanej
Odpływ podłogowy kwadratowy Balneo SQ-Drain 15 x 15 cm dwustronny ze stali nierdzewnej szczotkowanej
Technical data
Brand
Balneo
EAN
5907699005222
SKU
SQ15
Producer code
5907699005222
Series
SQ-DRAIN
Drain type
Square
Length
15 cm
Minimum installation depth
52 mm
Drain diameter
40 mm
Width of drain cover
15 cm
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Gutter and grate thickness
1,2 cm
Swivel siphon
No
Throughput
49 l/min.
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg
Dimensions
15 x 15 x 7 cm
Size
15 cm
SQ-DRAIN SQUARE DRAINS: COMPACT SOLUTION
For Every Bathroom

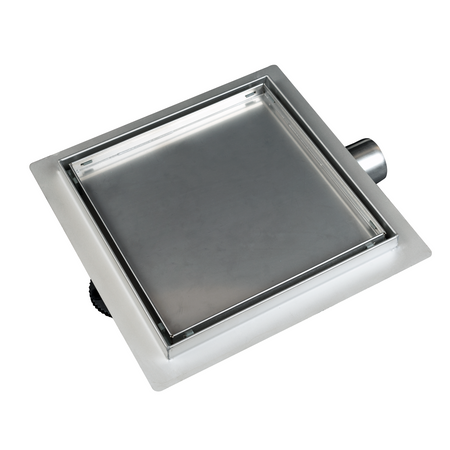

The SQ-Drain series consists of modern and functional square drains distinguished by high-quality workmanship and universal design. Made of AISI 304 stainless steel, the products in this series offer durability, corrosion resistance, and an aesthetic appearance, fitting perfectly with any bathroom style. The reversible panel allows you to choose between a smooth surface or tile insertion, enabling full customization of the space.
SQ-DRAIN INOX – DURABILITY AND ELEGANCE IN ONE
The SQ-Drain Inox model is a classic offering made of high-quality stainless steel with a matte finish. Available in two sizes (15×15 cm and 20×20 cm), it ensures versatility and fits various bathroom designs. The drain is equipped with a basket strainer and adjustable legs, providing easy installation and user convenience.
The dual-function panel allows the appearance to be adapted to your needs – a smooth surface for minimalist interiors or the option to insert a tile for a more personalized effect. With increased water flow capacity up to 55 l/min and a wet trap, the drain remains reliable even under heavy use.
FLEXIBILITY AND FIT FOR EVERY BATHROOM
The SQ-Drain Inox model is an excellent choice for those who value universal solutions. Thanks to its availability in two sizes and the option to customize the panel, the product integrates perfectly into both modern and classic bathroom designs. It offers the flexibility that meets the needs of the most demanding users.
EASE OF INSTALLATION AND MAINTENANCE

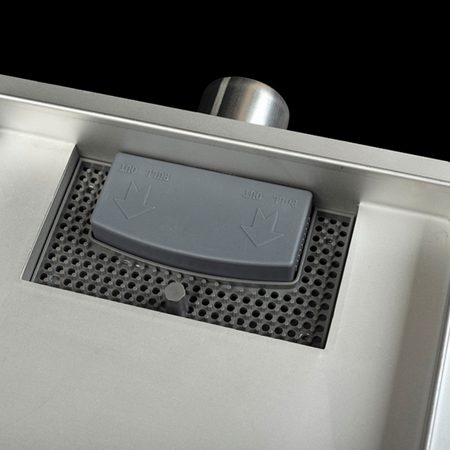

The set includes a sealing mat, a reducer coupling, and a hook for panel removal, significantly simplifying the installation process. The trap design and basket strainer ensure quick and easy cleaning, while the adjustable legs guarantee a precise fit in any bathroom.
QUALITY AND DURABILITY GUARANTEE
Products from the SQ-Drain series stand out for their high-quality workmanship. The offered 10-year warranty on the body confirms their reliability and longevity. The SQ-Drain Inox model is an investment for years to come, combining functionality and elegance in one.
TECHNICAL DATA
BRAND: Balneo
SERIES: SQ DRAIN
COLOR: Chrome
SIZE: 15 cm
DIMENSIONS: 15 x 15 x 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 303 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Square
FLOW RATE: 49 l/min.
PATTERN: Smooth
DRAIN DIAMETER: 40 mm
COVER WIDTH: 15 cm
CHANNEL AND GRATE THICKNESS: 1.2 cm
SURROUNDING FLANGE: 2 cm
ROTATING TRAP: No
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDED: body, reversible panel, trap, strainer, sealing mat, adjustable legs, 40/50 reducer, panel removal hook
EAN: 5907699005222
SKU: SQ15
WARRANTY: 10 years
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.
What is the water flow capacity of the drain?
The water flow capacity is 49 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel in which a tile can be installed.
What is the panel size?
The panel size is 15×15 or 20×20 cm.
What is the minimum installation depth for this drain?
52 mm
Are the drain legs adjustable?
Yes, the drain legs are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not dedicated for this type of installation.
Does the drain have a dry trap?
No. The drain is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain come with a full installation kit?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
1 mm thick.
How to remove the panel from the linear drain?
The set includes a key that allows lifting the panel from the linear drain.
Can you purchase a panel for the linear drain?
Yes, you can purchase a panel for this drain or a decorative panel.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays firmly in the drain.
