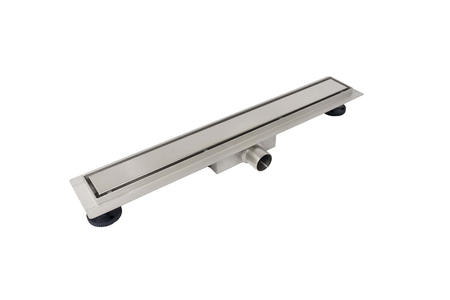

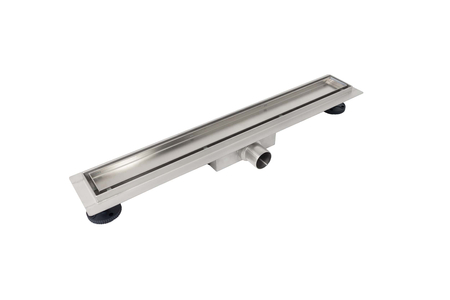

Odpływ liniowy Balneo Duplex Standard 70 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Odpływ liniowy Balneo Duplex Standard 70 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Technical data
Brand
Balneo
EAN
5907699005024
SKU
Duplex70
Producer code
5907699005024
Series
DUPLEX STANDARD
Drain type
Linear
Length
70 cm
Minimum installation depth
52 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Gutter and grate thickness
1,2 cm
Swivel siphon
No
Throughput
49 l/min.
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg
Dimensions
70 x 7 x 5,2 cm
Size
70 cm
DUPLEX STANDARD INOX - CLASSIC STYLE AND FUNCTIONALITY
in Your Bathroom
The Duplex Standard Inox linear drain is an excellent solution for any modern bathroom. Made of stainless steel, it features durability, corrosion resistance, and an attractive appearance. Precisely crafted with a two-function panel that adapts to any interior design, it offers unparalleled functionality and elegance. The Duplex Standard Inox model fits both minimalist and more classic bathroom arrangements, ensuring comfort of use for many years.
DUPLEX STANDARD INOX - STRENGTH AND ELEGANCE IN ONE
The Duplex Standard Inox drain guarantees the highest quality. Made from durable AISI 304 stainless steel, it is protected against mechanical damage and corrosion, making it a long-lasting investment. Precisely executed welds ensure tightness, and the 1.2 mm wall thickness sets it apart from competing products, providing exceptional solidity.
Thanks to adjustable legs, installation is easy and flexible, and the sealing mat included in the kit enhances safety. With a flow rate of 49 l/min, it effectively drains water even under heavy use. The reversible panel allows for tile installation, enabling full integration with the bathroom floor and giving the space a cohesive, modern look.

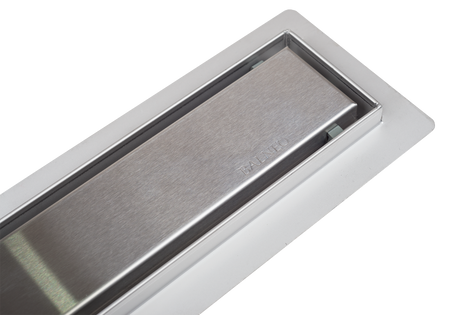

TWO-FUNCTION PANEL – ADAPTS TO ANY INTERIOR
The two-function panel of Duplex Standard Inox enables tile installation, allowing the drain to blend seamlessly with the bathroom floor. This feature ensures a modern, minimalist look while enhancing the product’s functionality.
EASE OF USE AND MAINTENANCE

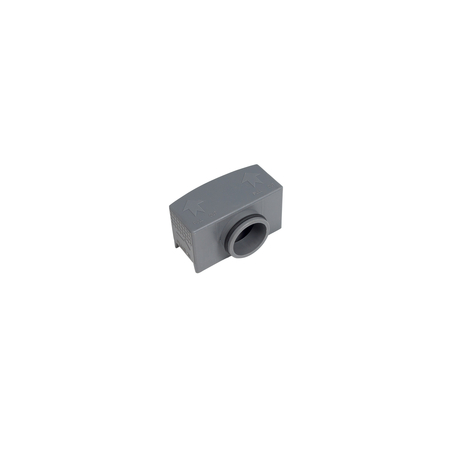

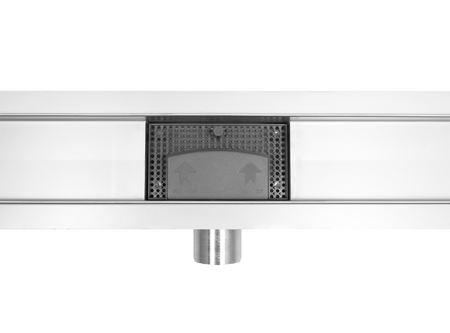

The Duplex Standard Inox model is designed with the user in mind. Its convenient panel removal system using the included key, along with a durable ABS trap, ensures effortless cleaning and maintenance.
SAFETY AND COMFORT
The Duplex Standard Inox drain combines aesthetics with functionality. Thanks to the included sealing mat and precisely welded seams, it guarantees safe use and prevents leaks.

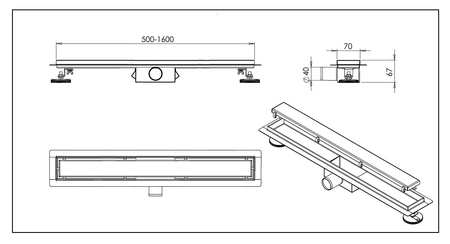

TECHNICAL DATA
BRAND: Balneo
SERIES: DUPLEX STANDARD
COLOR: Chrome
SIZE: 70 cm
DIMENSIONS: 70 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 303 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 49 l/min
DRAIN DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
SURROUND FLANGE: 2 cm
ROTATING SYPHON: No
TILE INSERTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDED: body, double-sided panel, siphon, trap, sealing mat, adjustable legs, 40/50 reducer, panel removal hook
EAN: 5907699005024
SKU: Duplex70
WARRANTY: 10 years, 2 years for coating
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.
How does the trap in the Duplex Standard differ from the Duplex Next?
The trap in this drain has a flat base with legs.
What is the water flow rate of the drain?
The flow rate is 49 l/min.
Does the drain have a reversible panel?
Yes, the drain has a reversible panel that allows for tile insertion.
What is the width of the panel?
The panel width is 5 cm.
What is the minimum installation depth for this drain?
52 mm.
Are the drain legs adjustable?

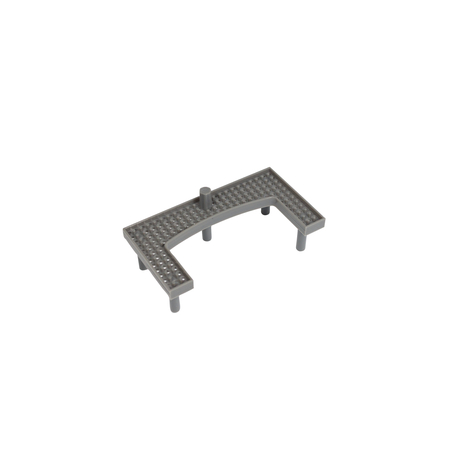

Yes, the drain legs are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not intended for that type of installation.
Does the drain include a dry siphon?
No. The drain is equipped with a wet siphon.
Can the siphon be replaced with a dry one?
No.
Does the drain come with a complete installation kit?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
1 mm.
How do you remove the panel from the linear drain?
The set includes a key that allows you to lift the panel from the linear drain.
Can a panel be purchased separately for the linear drain?
Yes, a panel can be purchased separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel remains securely in place in the drain.
