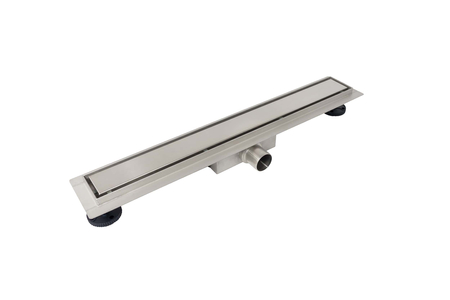

Odpływ liniowy Balneo Duplex Standard 80 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Odpływ liniowy Balneo Duplex Standard 80 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Technical data
Brand
Balneo
EAN
5907699005048
SKU
Duplex80
Producer code
5907699005048
Series
DUPLEX STANDARD
Drain type
Linear
Length
80 cm
Minimum installation depth
52 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Gutter and grate thickness
1,2 cm
Swivel siphon
No
Throughput
49 l/min.
Siphon included
Yes
Contents of the kit

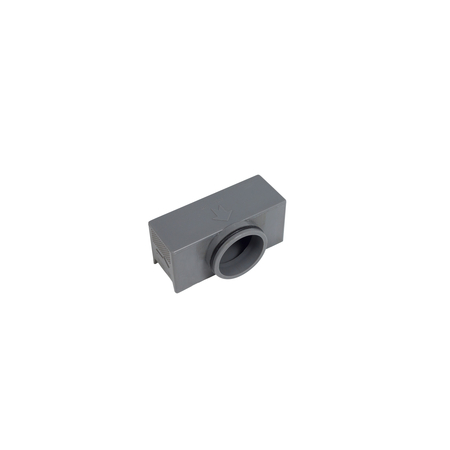

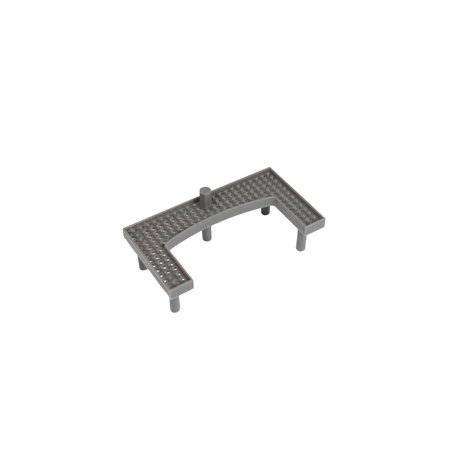

Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg

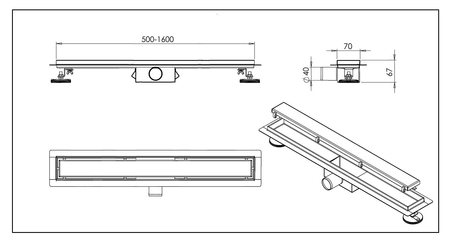

Dimensions
80 x 7 x 5,2 cm
Size
80 cm
DUPLEX STANDARD INOX - CLASSIC AND FUNCTIONALITY
in Your Bathroom
The Duplex Standard Inox linear drain is the perfect solution for any modern bathroom. Made of stainless steel, it offers durability, corrosion resistance, and an elegant appearance. Precisely crafted with a dual-function panel that allows customization to any interior style, it delivers unparalleled functionality and sophistication. The Duplex Standard Inox model fits both minimalist and more classic bathroom designs, ensuring years of comfortable use.
DUPLEX STANDARD INOX - STRENGTH AND ELEGANCE IN ONE
The Duplex Standard Inox drain guarantees top quality. Made of durable AISI 304 stainless steel, it is protected against mechanical damage and corrosion, making it a long-lasting investment. Precisely executed welds ensure watertightness, and the 1.2 mm wall thickness sets it apart from competing products, ensuring exceptional sturdiness.
Thanks to adjustable feet, installation is easy and flexible, and the included sealing mat enhances safety. With a flow rate of 49 l/min, it effectively drains water even under heavy use. The reversible panel allows for tile installation, enabling seamless integration with your bathroom floor for a consistent and modern look.

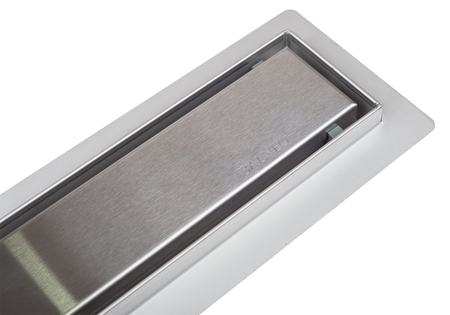

DUAL-FUNCTION PANEL - CUSTOMIZATION FOR ANY INTERIOR
The dual-function Duplex Standard Inox panel allows tile installation, enabling the drain to blend seamlessly with the bathroom floor. This feature provides a modern, minimalist appearance while enhancing the product’s functionality.
EASE OF USE AND MAINTENANCE

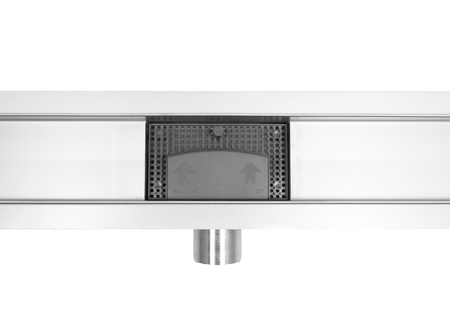

The Duplex Standard Inox model is designed with users in mind. A convenient panel removal system with the included key and a durable ABS trap make cleaning and maintenance easy.
SAFETY AND COMFORT
The Duplex Standard Inox drain combines aesthetics with functionality. Thanks to the included sealing mat and precisely executed welds, it guarantees safe use and prevents leaks.
TECHNICAL SPECIFICATIONS
BRAND: Balneo
SERIES: DUPLEX STANDARD
COLOR: Chrome
SIZE: 80 cm
DIMENSIONS: 80 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 303 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 49 l/min
OUTLET DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
SURROUNDING FLANGE: 2 cm
ROTATING TRAP: No
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
IN THE SET: body, reversible panel, trap, sedimenter, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5907699005048
SKU: Duplex80
WARRANTY: 10 years, 2 years on the coating
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURN
FAQ
What is the drain made of?
The drain is made of stainless steel.
What is the difference between the trap of the Duplex Standard and Duplex Next drains?
The trap in this drain is flat on feet.
What is the water flow rate of the drain?
The water flow rate is 49 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel in which tiles can be installed.
What is the panel width?
The panel width is 5 cm.
What is the minimum installation depth for this drain?
52 mm.
Are the drain feet adjustable?
Yes, the drain feet are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not designed for that type of installation.
Does the drain have a dry trap?
No. The drain is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain come with a complete installation kit?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
1 mm thick.
How do you remove the panel from the linear drain?
The set includes a key that allows you to lift the panel from the linear drain.
Can I purchase the panel for the linear drain separately?
Yes, the panel can be purchased separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays securely in place.
