with Decorative Panels
Decor Next series linear drains are a harmonious combination of elegance, functionality and modern design. Thanks to the decorative panels – Stripes, Wave and Drops – these products are the perfect complement to contemporary bathrooms. Made from premium AISI 304 stainless steel, they feature durability and moisture resistance while adding unique style to interiors. Their functionality is highlighted by a water flow capacity of 55 l/min and a range of conveniences such as adjustable feet and an easily accessible sediment trap.

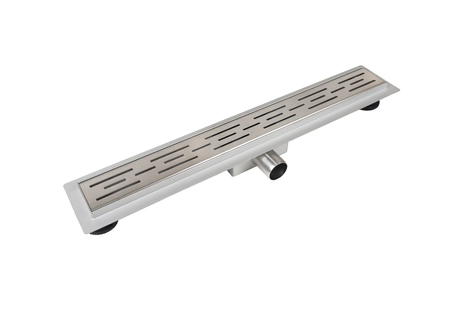

Model Decor Next Stripes is an offering for those who appreciate subtle and aesthetic accents in bathroom design. The decorative panel featuring cut-out stripes not only attracts attention but also allows water to drain freely, increasing drain efficiency. The product stands out with its thoughtful construction: from adjustable feet and an easily accessible basket siphon to the decorative panel that stays securely in the body thanks to precise spacers. With an installation height of only 52 mm, the drain can be installed even in low-floor constructions, making it a versatile solution for modern bathrooms.
The Stripes panel is more than just aesthetics – the cutouts are designed to maximize water drainage efficiency while introducing an element of modern design to the bathroom. It’s the perfect solution for those who want every interior detail to be well thought out.
The Decor Next Stripes drain is equipped with adjustable feet, allowing perfect adaptation to various bathroom designs. With an installation height of 52 mm, it is exceptionally versatile, and the accessory set ensures hassle-free installation.

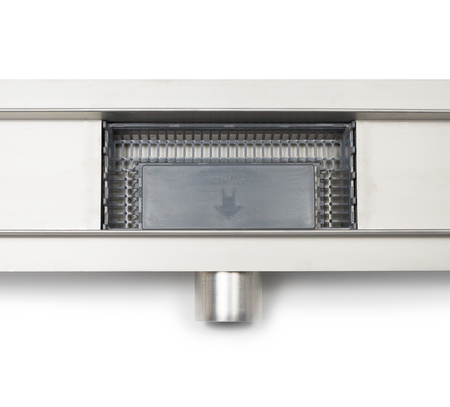

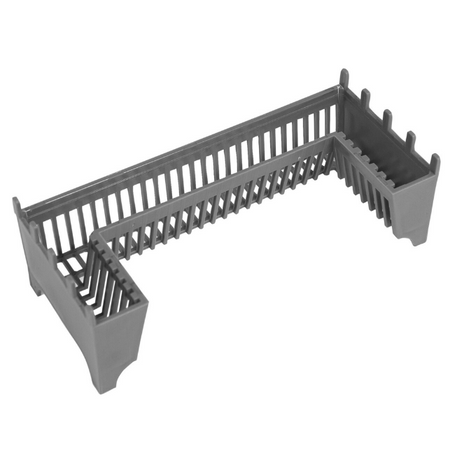

Made from top-quality AISI 304 stainless steel, the Decor Next Stripes drain resists moisture and corrosion, ensuring the product's longevity. The basket trap and easy access to the siphon make maintenance quick and trouble-free.
BRAND: Balneo
SERIES: DUPLEX NEXT DECOR
COLOR: Chrome
SIZE: 100 cm

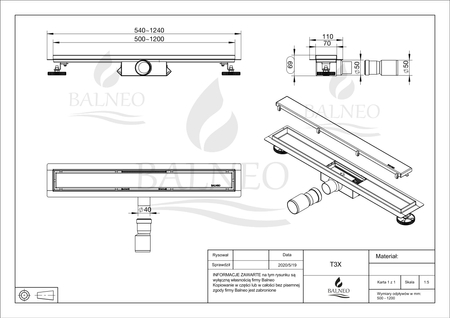

DIMENSIONS: 100 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW CAPACITY: 55 l/min
PATTERN: Stripes
DRAIN DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
CHANNEL AND GRATE THICKNESS: 1.2 cm
SURROUNDING FLANGE: 2 cm
ROTATING SIPHON: No
TILE INSERTION POSSIBILITY: No
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDES: body, reversible panel, siphon, sediment trap, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5907699005796
SKU: Stripes100N
WARRANTY: 10 years
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
The drain is made of stainless steel.
The water flow capacity is 55 l/min.
No, the drain has a decorative panel that cannot be reversed. A reversible panel for the Duplex Next model is available separately.
No, it is not possible to install tiles. The drain has a decorative panel. A reversible panel for the Duplex Next model can be purchased separately.
The panel width is 6 cm.
52 mm.
Yes, the drain feet are adjustable.
No, this drain is not designed for that type of installation.
No. The drain is equipped with a wet trap.
No.
Yes. All necessary installation components are included.
Thickness is 1 mm.
Yes, you can purchase a panel for this drain or a smooth panel.
Yes, the decorative panel is wide, which keeps it fixed securely in the drain.
