Duplex Next Series – Modern Linear Drains for Every Interior. Linear drains from the Duplex Next series are synonymous with innovation, durability, and elegance. Made of high-quality AISI 304 stainless steel, they offer reliability and ease of use. The reversible panels allow full personalization – you can choose a smooth surface or inset a tile to perfectly match any bathroom decor. Duplex Next stands out with its modern design, wide color range, and advanced sediment trap construction, which reduces cleaning frequency by up to four times.

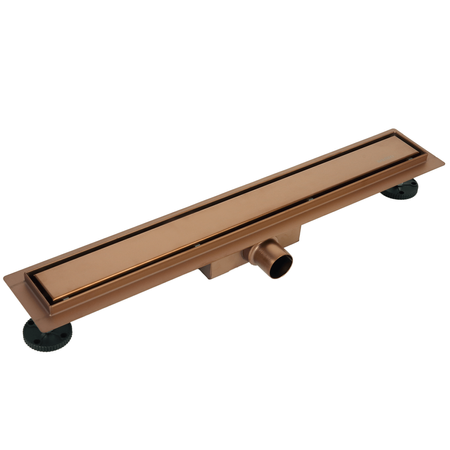

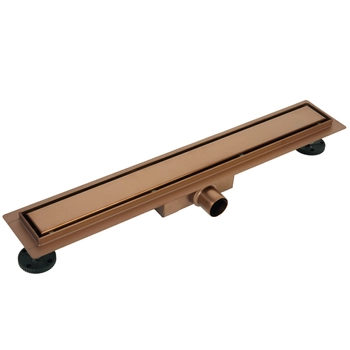

The Duplex Next Copper model is designed for those who value extraordinary solutions combining style and functionality. The warm tone of the copper PVD coating not only draws the eye but also offers exceptional corrosion resistance and everyday durability. Thanks to advanced finishing technology, the drain fits perfectly into various bathroom styles – from industrial and loft to luxurious glamour interiors. A water flow rate of 55 l/min ensures reliable performance even under heavy use, while the basket-style sediment trap, requiring cleaning four times less often, increases user comfort. Additionally, adjustable feet and a low installation profile enable precise fitting to any surface, making Duplex Next Copper a universal solution for both smaller bathrooms and larger, characterful projects.

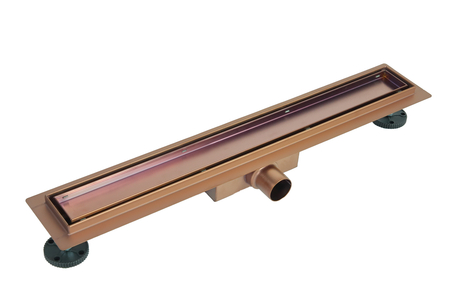

The Duplex Next Copper drain features a double-sided panel that allows full bathroom personalization. You can choose a classic smooth finish or inset a tile into the panel to create a unique visual effect. This solution provides design flexibility and the ability to adapt the product to any interior style.
Thanks to adjustable feet, installing Duplex Next Copper is quick and precise, even on uneven floors. The advanced basket-style sediment trap minimizes cleaning needs, translating into user convenience and time savings. The product is also resistant to aggressive detergents, ensuring long-term durability.
BRAND: Balneo
SERIES: DUPLEX NEXT
COLOR: Copper
SIZE: 70 cm

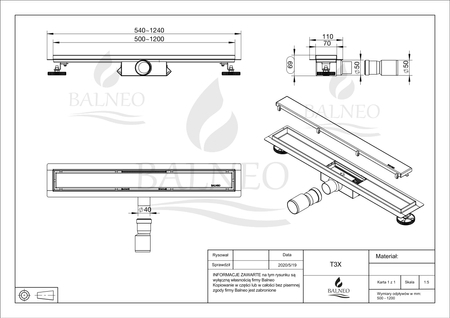

DIMENSIONS: 70 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: PVD
DRAIN TYPE: Linear
FLOW RATE: 55 l/min.
PATTERN: Smooth
DRAIN DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
CHANNEL AND GRATE THICKNESS: 1.2 cm
SURROUNDING FLANGE: 2 cm
ROTATING SIPHON: No
TILE-IN CAPABILITY: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDED: body, double-sided panel, siphon, sediment trap, sealing mat, adjustable feet, reducer 40/50, panel removal hook
EAN: 5903943983940
SKU: CO-70N
WARRANTY: 10 years, 2 years on paint coating
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
The drain is made of stainless steel.

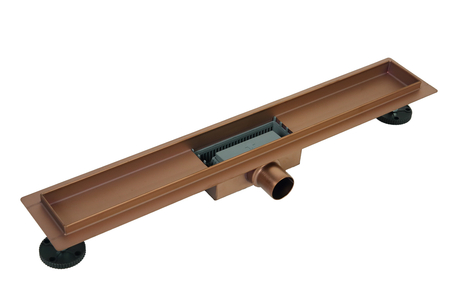

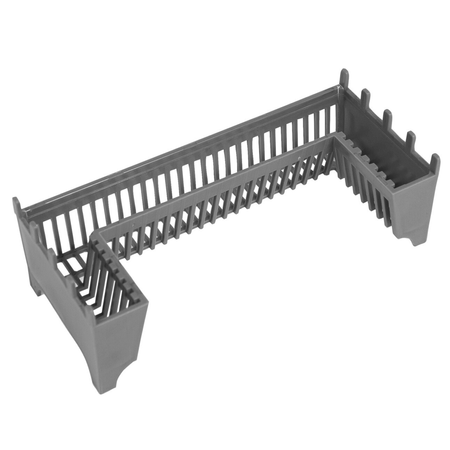

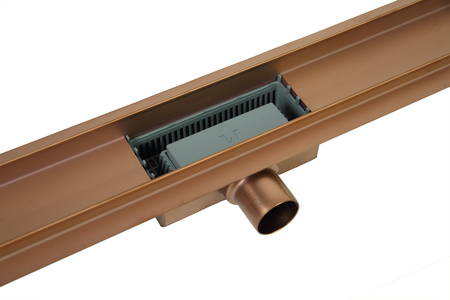

The improved trap requires cleaning four times less often. The enlarged siphon chamber allowed for a basket-style sediment trap.
The water flow rate is 55 l/min.
Yes, the drain has a reversible panel that can accommodate a tile.
The panel width is 5 cm.
52 mm
Yes, the drain feet are adjustable.
This drain is not dedicated to that type of installation.

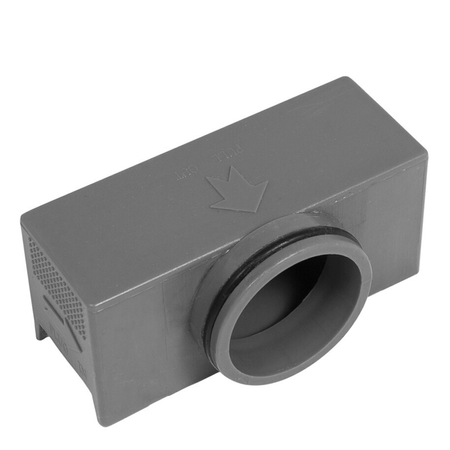

No. The drain is equipped with a wet siphon.
No.
Yes. Our drains come with everything needed for installation.
Thickness: 1.2 mm.
The set includes a key that allows you to lift the panel from the linear drain.
Yes, you can buy this drain’s panel or a decorative panel separately.
Yes, thanks to the included spacers, the panel stays securely in place.
Yes. The customer can purchase a glass decorative panel to replace the one included in the set.
