Duplex Next Series – Modern Linear Drains for Every Interior. Linear drains from the Duplex Next series are synonymous with innovation, durability, and elegance. Made of high-quality AISI 304 stainless steel, they offer reliability and ease of use. The reversible panels allow full personalization – you can choose a smooth surface or fill it with a tile, perfectly adapting the product to any bathroom design. Duplex Next stands out with its modern design, wide range of colors, and advanced sediment trap construction that reduces cleaning frequency by up to four times.
The Duplex Next Copper model is an offer for those who appreciate distinctive solutions that combine style and functionality. The warm hue of the PVD copper coating not only draws the eye but also offers exceptional corrosion resistance and durability in daily use. Thanks to advanced finishing technology, the drain fits perfectly into various bathroom designs – from industrial and loft to luxurious glam interiors. A water flow rate of 55 l/min ensures reliable performance even under heavy use, and the basket-type sediment trap, providing cleaning intervals four times less often, enhances convenience. Additionally, adjustable legs and a low installation profile allow precise fitting of the drain to any surface, making Duplex Next Copper a universal solution for both smaller bathrooms and larger, more expressive projects.
The Duplex Next Copper drain features a reversible panel that allows full bathroom personalization. You can choose a classic smooth finish or insert a tile into the panel, creating a unique visual effect. This solution provides design flexibility and the ability to tailor the product to any interior style.
Thanks to the adjustable legs, installing Duplex Next Copper is quick and precise, even on uneven floors. The advanced basket‐type sediment trap minimizes the need for cleaning, translating into user convenience and time savings. The product is also resistant to aggressive detergents, ensuring durability for years to come.
BRAND: Balneo
SERIES: DUPLEX NEXT
COLOR: Copper
SIZE: 80 cm
DIMENSIONS: 80 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: PVD
DRAIN TYPE: Linear
FLOW RATE: 55 l/min
PATTERN: Smooth
OUTLET DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
CHANNEL AND GRATE THICKNESS: 1.2 cm
SURROUNDING FLANGE: 2 cm
ROTATING TRAP: No
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDES: body, reversible panel, trap, sediment trap, sealing mat, adjustable legs, 40/50 reducer, panel removal hook
EAN: 5903943983957
SKU: CO-80N
WARRANTY: 10 years, 2 years on the coating
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATION
90-DAY RETURNS
The drain is made of stainless steel.

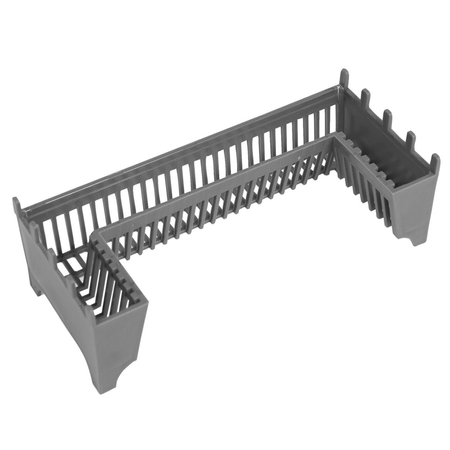

The improved sediment trap requires cleaning four times less often. The enlarged syphon chamber allowed for the installation of a basket-type trap.
The water flow rate is 55 l/min.
Yes, the drain has a reversible panel in which a tile can be installed.
The panel width is 5 cm.
52 mm.
Yes, the drain’s legs are adjustable.
This drain is not dedicated to that type of installation.

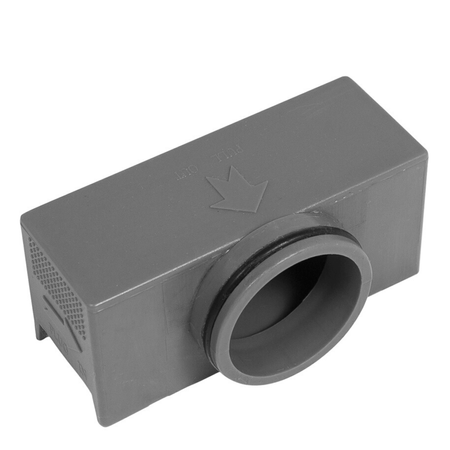

No. The drain is equipped with a wet trap.
No.
Yes. Our drains include everything needed for installation.
Thickness is 1.2 mm.
A key is included in the set, which allows you to lift the panel from the linear drain.
Yes, you can buy a replacement panel for this drain or a decorative panel.
Yes, thanks to the included spacers, the panel remains fixed in the drain.
Yes. The customer can purchase a decorative glass panel, replacing the panel included in the set.
