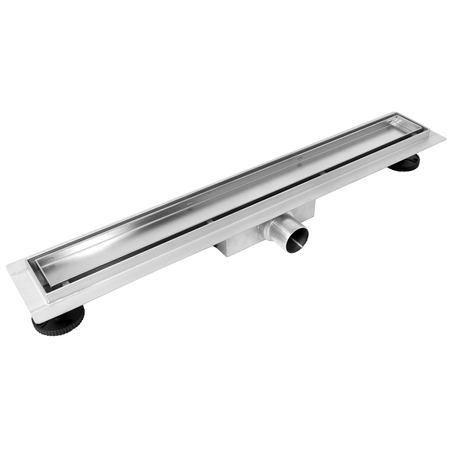

Duplex Next Inox linear drain is the perfect solution combining advanced functionality with aesthetics and reliability. Made from top-quality AISI 304 stainless steel, this product stands out for its durability, corrosion resistance, and ease of cleaning. Available in lengths from 50 to 160 cm, Duplex Next Inox fits any shower space, offering both practical use and a stylish finish for every bathroom.
Model Duplex Next Inox was designed with user comfort and convenience in mind. Equipped with an innovative reversible panel, it offers the choice of a smooth surface or the option to insert a tile, allowing perfect integration with your bathroom décor. With a flow rate of 55 l/min, it efficiently drains water even under heavy use.

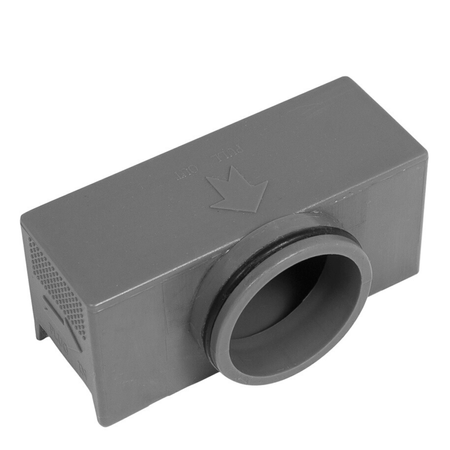

The siphon and basket-style strainer made of durable ABS simplify cleaning and reduce maintenance needs by up to four times compared to traditional models. Adjustable legs enable precise installation, while the included sealing mat enhances safety by preventing leaks.

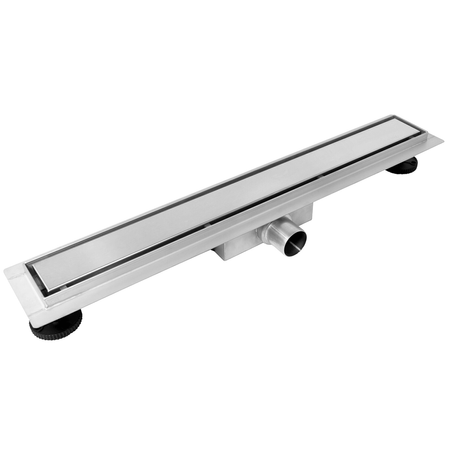

The reversible panel of the Duplex Next Inox allows you to choose between an elegant smooth surface and the option to inset a tile. This feature ensures seamless integration of the drain with the bathroom floor, providing a modern and minimalist look.
Thanks to its advanced design, the Duplex Next Inox drain is an excellent solution for anyone who values reliability and ease of use. Precisely engineered spacers prevent the panel from shifting, while the sealing mat guarantees watertightness and eliminates the risk of leaks.
The Duplex Next Inox drain combines aesthetics with functionality, offering unique technical solutions such as an enhanced basket strainer and grounding for the drain. It’s a product that perfectly meets the needs of modern users while emphasizing bathroom elegance.
BRAND: Balneo
SERIES: DUPLEX NEXT
COLOR: Chrome
SIZE: 100 cm

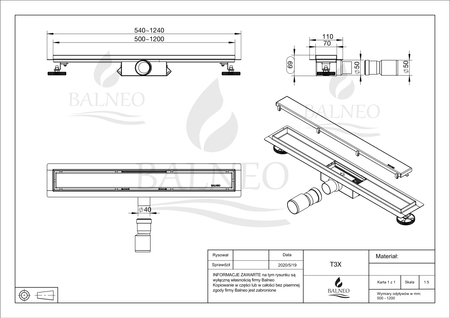

DIMENSIONS: 100 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: stainless steel
DRAIN TYPE: linear
FLOW RATE: 55 l/min
PATTERN: smooth
DRAIN DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
CHANNEL AND GRATE THICKNESS: 1.2 cm
SURROUND FLANGE: 2 cm
ROTATING SIPHON: No
TILE INSERTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDES: body, reversible panel, siphon, strainer, sealing mat, adjustable legs, 40/50 reducer, panel removal hook
EAN: 5907699005727
SKU: Duplex100N
WARRANTY: 10 years
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFIED
90-DAY RETURN
The drain is made of stainless steel.

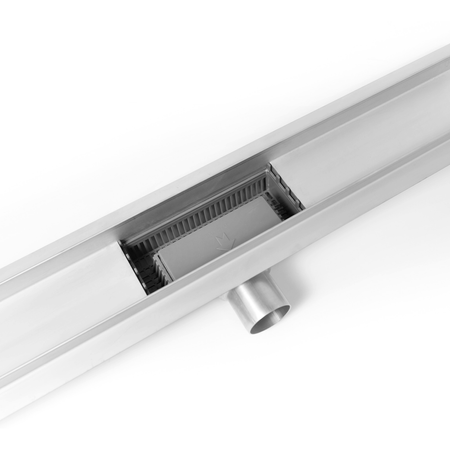

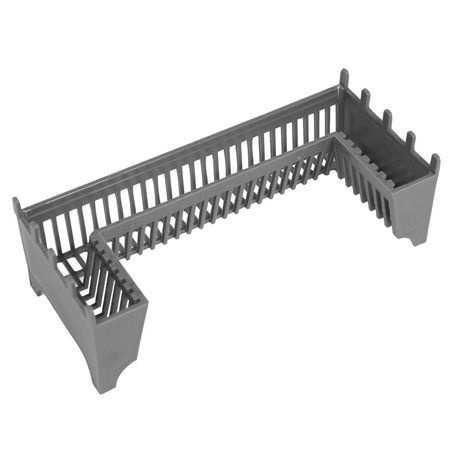

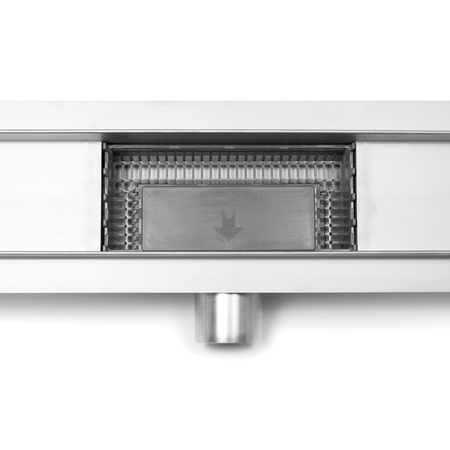

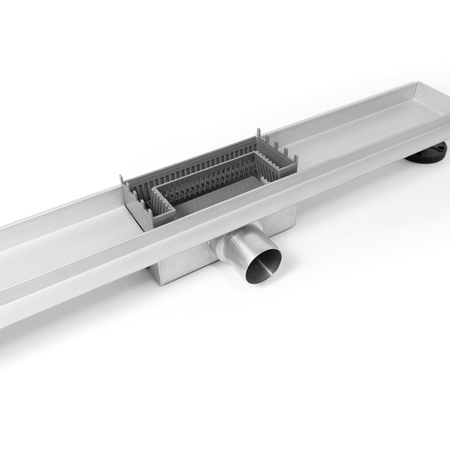

The improved strainer requires cleaning four times less frequently. The enlarged siphon chamber allowed the installation of a basket strainer.
The water flow rate is 55 l/min.
Yes, the drain has a reversible panel that allows tile installation.
The panel width is 5 cm.
52 mm
Yes, the drain legs can be adjusted.
This drain is not dedicated for this type of installation.
No. The drain comes with a wet siphon.
No.
Yes. All necessary installation components are included.
Thickness is 1.2 mm.
A key tool is included with the kit to lift the panel from the linear drain.
Yes, you can purchase a panel for this drain or a decorative panel.
Yes, thanks to the included spacers, the panel remains fixed in the drain.
Yes. Customers can purchase a decorative glass panel to replace the panel included in the kit.
