in your bathroom

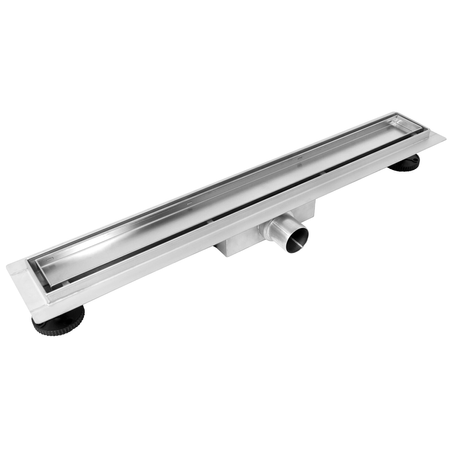

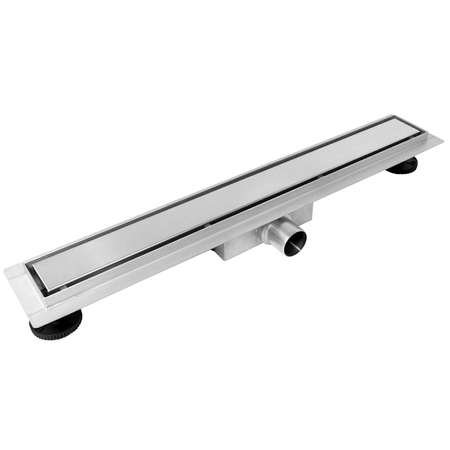

The Duplex Next Inox linear drain is the perfect solution that combines advanced functionality with aesthetics and reliability. Made from top-quality AISI 304 stainless steel, the product stands out for its durability, corrosion resistance, and ease of cleaning. With a wide range of available lengths—from 50 to 160 cm—Duplex Next Inox fits any shower space, offering not only practical performance but also a stylish finish to any bathroom.
The Duplex Next Inox model was designed with user comfort and convenience in mind. Equipped with an innovative reversible panel, it offers the option of a smooth surface or tile inlay, enabling perfect integration with your bathroom’s décor. A flow rate of 55 l/min ensures efficient water drainage even under heavy use.

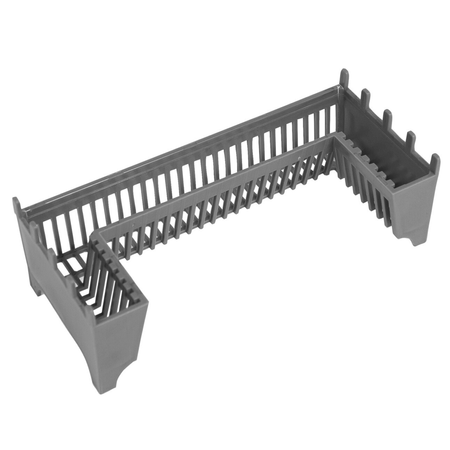

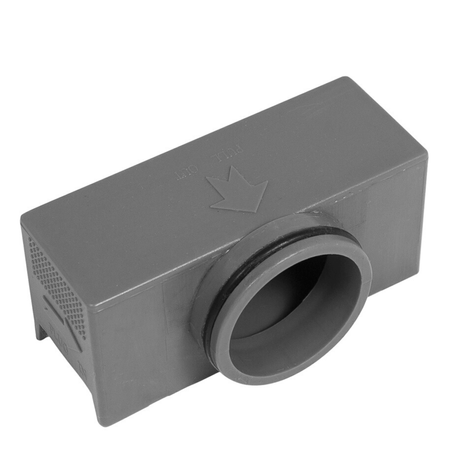

The siphon and basket-style sediment trap, made of durable ABS, make cleaning easier and reduce maintenance frequency by up to four times compared to traditional models. Adjustable legs allow for precise installation, and the included sealing mat increases user safety by preventing leaks.
The reversible Duplex Next Inox panel allows you to choose between an elegant smooth surface or a tile inlay. This functionality enables seamless integration of the drain with the bathroom floor, delivering a modern and minimalist look.
Thanks to its advanced design, the Duplex Next Inox drain is an ideal choice for those who value reliability and ease of use. Precisely engineered spacers prevent the panel from shifting, and the sealing mat ensures leak-proof installation.
The Duplex Next Inox drain merges aesthetics with functionality, offering unique technical solutions such as an improved basket sediment trap and drain grounding. It’s a product that perfectly meets modern users’ needs while highlighting the elegance of your bathroom.
BRAND: Balneo
SERIES: DUPLEX NEXT
COLOR: Chrome
SIZE: 120 cm

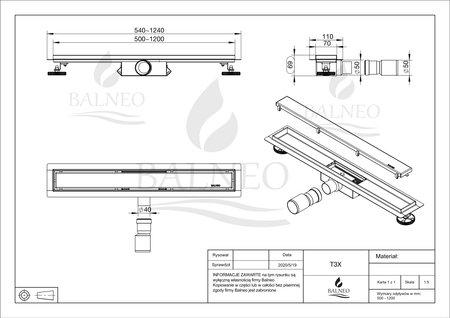

DIMENSIONS: 120 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 55 l/min
PATTERN: Smooth
DRAIN DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
CHANNEL & GRATE THICKNESS: 1.2 cm
SURROUNDING COLLAR: 2 cm
ROTATING SIPHON: No
TILE INLAY OPTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDED: body, reversible panel, siphon, sediment trap, sealing mat, adjustable legs, 40/50 reducer, panel lifting key
EAN: 5907699005741
SKU: Duplex120N
WARRANTY: 10 years
matters to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURN
The drain is made of stainless steel.

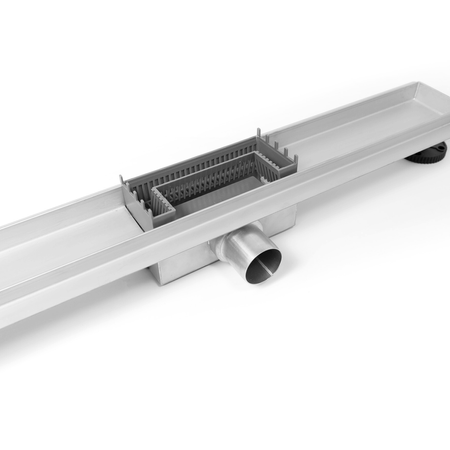

The improved trap requires cleaning four times less often. The enlarged siphon chamber allows the installation of a basket trap.
The water flow capacity is 55 l/min.
Yes, the drain has a reversible panel where a tile can be installed.
The panel width is 5 cm.
52 mm.
Yes, the drain legs are adjustable.
This drain is not dedicated to that type of installation.
No. The drain is equipped with a wet siphon.
No.
Yes. Our drains include everything needed for installation.
The thickness is 1.2 mm.
The set includes a key that allows you to lift the panel from the linear drain.
Yes, you can buy a panel for this drain or a decorative panel.
Yes, thanks to the included spacers, the panel stays securely in the drain.
Yes. The customer can purchase a decorative glass panel to replace the panel included in the set.
