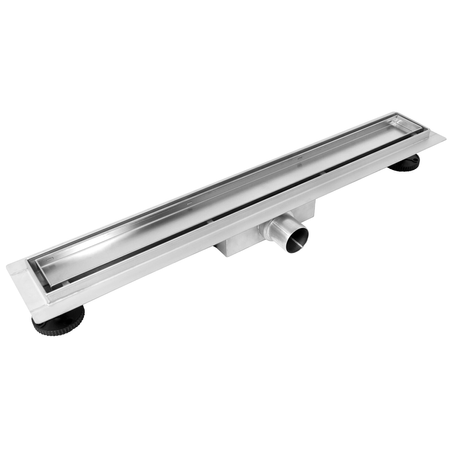

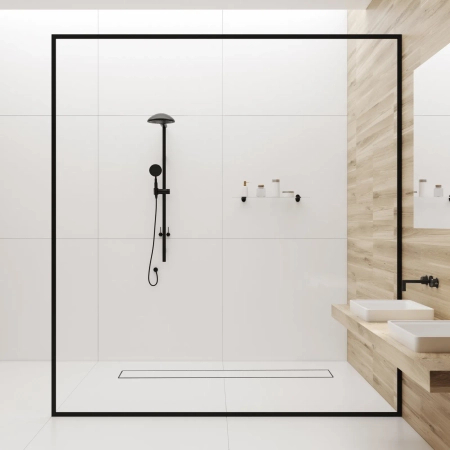

Duplex Next Inox linear drain is the perfect solution that combines advanced functionality with aesthetics and reliability. Made of premium AISI 304 stainless steel, the product stands out for its durability, corrosion resistance, and ease of cleaning. With a wide range of available lengths – from 50 to 160 cm – Duplex Next Inox fits any shower area, offering not only practical use but also a stylish finish to any bathroom.
The Duplex Next Inox model was designed with user comfort and convenience in mind. Equipped with an innovative reversible panel, it allows for a smooth surface or tile insertion, enabling perfect integration of the drain with the bathroom décor. A flow rate of 55 l/min ensures efficient water drainage even under heavy use.

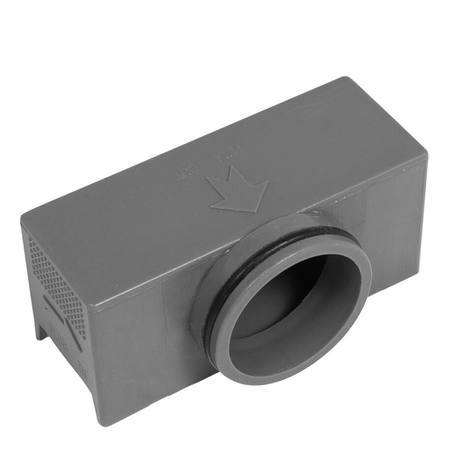

The siphon and basket-style sediment trap, made of durable ABS, facilitate cleaning and reduce maintenance needs by up to four times compared to traditional models. Adjustable feet enable precise installation, while the sealing mat included in the set enhances safety by preventing leaks.

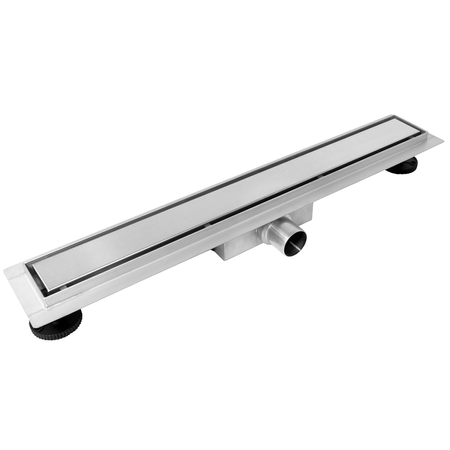

The reversible Duplex Next Inox panel allows you to choose between an elegant smooth surface or the option to insert a tile. This functionality ensures a seamless integration of the drain with the bathroom floor, delivering a modern and minimalist look.
Thanks to its advanced design, the Duplex Next Inox drain is an excellent solution for anyone who values reliability and ease of use. Precisely manufactured spacers prevent the panel from shifting, and the sealing mat ensures watertightness, eliminating the risk of leaks.
The Duplex Next Inox drain combines aesthetics with functionality, offering exceptional technical features such as an improved basket-type sediment trap and drain grounding. This product perfectly meets the needs of modern users while highlighting the elegance of the bathroom.
BRAND: Balneo
SERIES: DUPLEX NEXT
COLOR: Chrome
SIZE: 130 cm
DIMENSIONS: 130 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 55 l/min
PATTERN: Smooth
OUTLET DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
TROUGH & GRATE THICKNESS: 1.2 cm
SURROUNDING FLANGE: 2 cm
SWIVEL SYPHON: No
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDES: body, reversible panel, siphon, sediment trap, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5905351340247
SKU: Duplex130NWB
WARRANTY: 10 years
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
The drain is made of stainless steel.

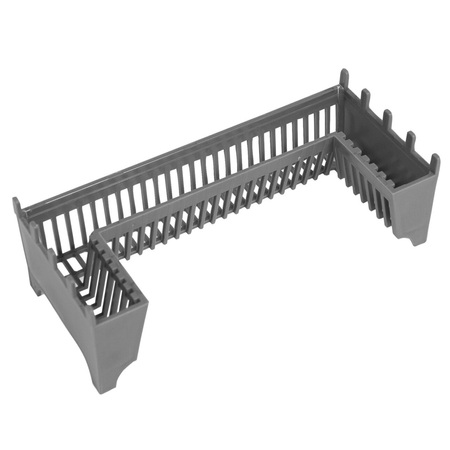

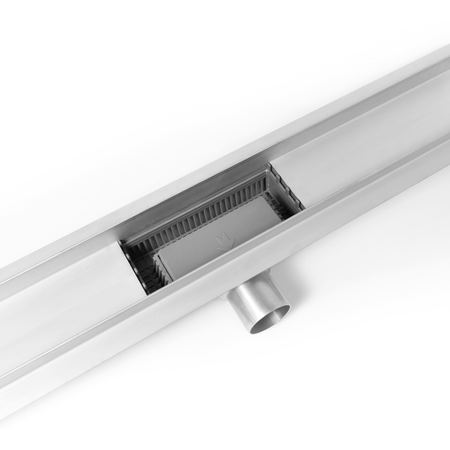

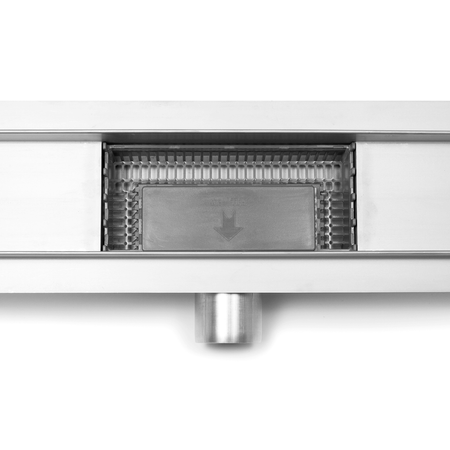

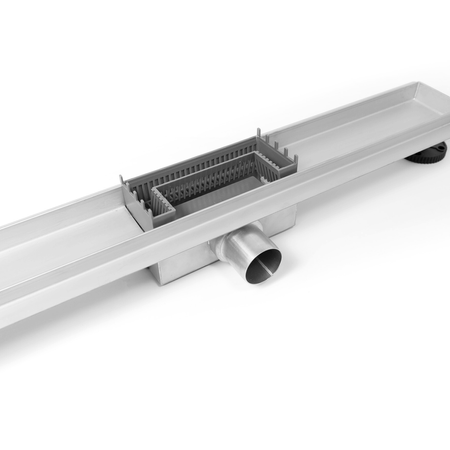

The improved sediment trap requires cleaning four times less often. The enlarged siphon chamber allows for the installation of a basket-type trap.
The water flow rate is 55 l/min.
Yes, the drain has a reversible panel in which a tile can be installed.
The panel width is 5 cm.
52 mm.
Yes, the drain feet are adjustable.
This drain is not intended for that type of installation.
No. The drain comes with a wet trap.
No.
Yes. Our drains include everything needed for installation.
Thickness: 1.2 mm.
A key is included in the set that allows you to lift the panel from the linear drain.
Yes, you can purchase a panel for this drain or a decorative panel.
Yes, thanks to the included spacers, the panel stays securely in the drain.
Yes. The customer can purchase a decorative glass panel to replace the one provided in the set.
