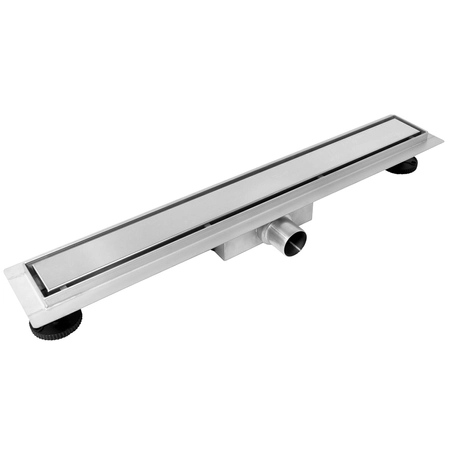

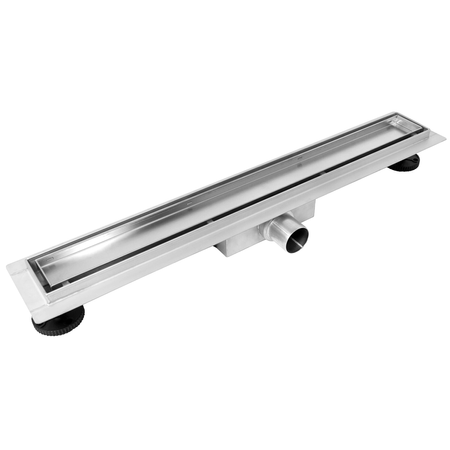

Duplex Next Inox linear drain is a perfect solution that combines advanced functionality with aesthetics and reliability. Made of top-quality AISI 304 stainless steel, this product stands out for its durability, corrosion resistance, and ease of cleaning. Thanks to a wide range of available lengths – from 50 to 160 cm – Duplex Next Inox fits every shower space, offering not only practical use but also a stylish finish for any bathroom.
Model Duplex Next Inox has been designed with user comfort and convenience in mind. Equipped with an innovative reversible panel, it allows for a smooth surface finish or tile insertion, enabling seamless integration of the drain with the bathroom décor. A flow rate of 55 l/min ensures effective water drainage even during heavy use.
The siphon and basket-type sediment trap, made of durable ABS, simplify cleaning and reduce maintenance needs by up to four times compared to traditional models. Adjustable feet allow precise installation, and the included sealing mat enhances user safety by preventing leaks.
The reversible panel of the Duplex Next Inox allows you to choose between an elegant smooth surface and the option of integrating a tile. This feature enables harmonious integration of the drain with the bathroom floor, providing a modern and minimalist look.
Thanks to its advanced design, the Duplex Next Inox drain is a perfect solution for anyone who values reliability and ease of use. Precisely manufactured spacers prevent the panel from shifting, and the sealing mat ensures watertightness, eliminating the risk of leaks.
The Duplex Next Inox drain combines aesthetics with functionality, offering exceptional technical solutions such as an improved basket sediment trap and drain grounding. It is a product that perfectly meets the needs of modern users while accentuating the elegance of the bathroom.
BRAND: Balneo
SERIES: DUPLEX NEXT
COLOR: Chrome
SIZE: 150 cm

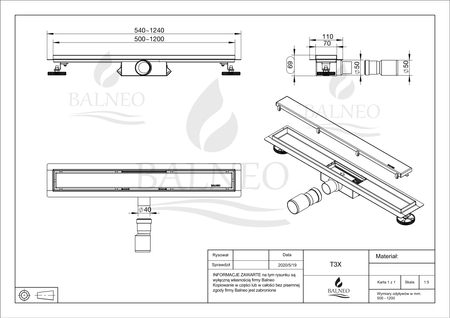

DIMENSIONS: 150 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 55 l/min
PATTERN: Smooth
DRAIN DIAMETER: 40 mm
DRAIN COVER WIDTH: 6.3 cm
CHANNEL AND GRATE THICKNESS: 1.2 cm
SURROUNDING FLANGE: 2 cm
SWIVEL SIPHON: No
TILE INSERTION POSSIBLE: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDES: body, reversible panel, siphon, sediment trap, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5905351340261
SKU: Duplex150NWB
WARRANTY: 10 years
matters to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
The drain is made of stainless steel.

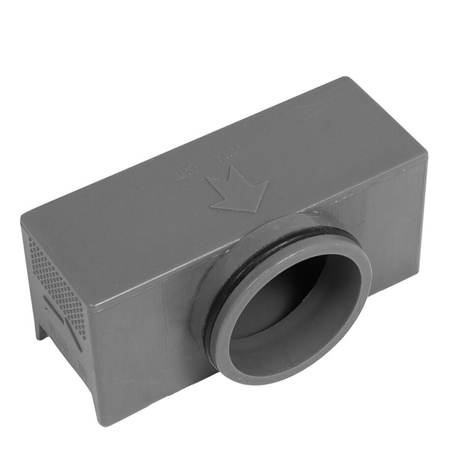

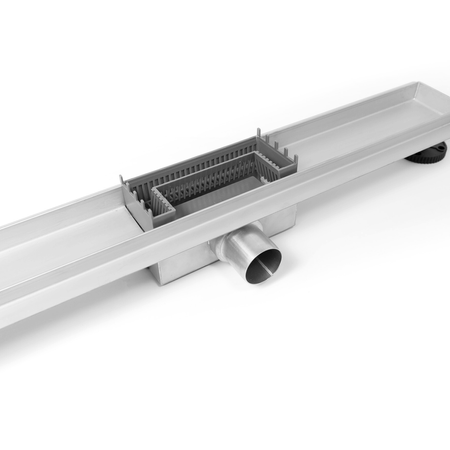

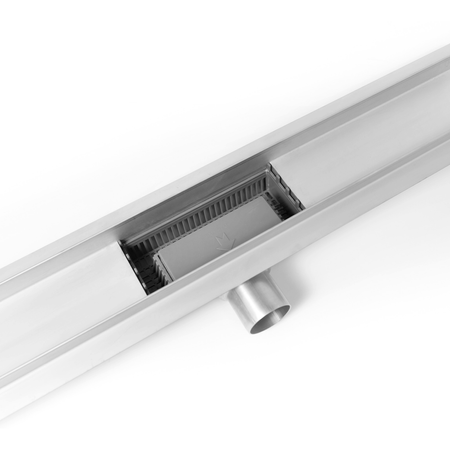

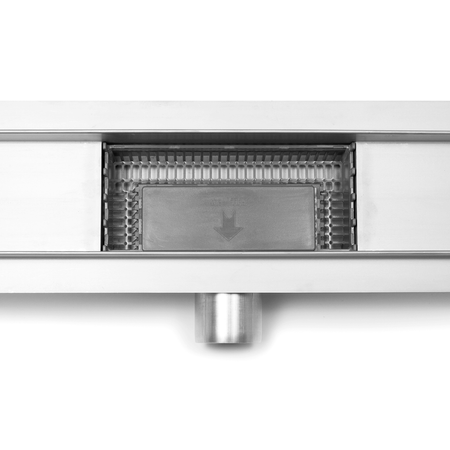

The improved sediment trap requires cleaning four times less often. The enlarged siphon chamber has allowed for the installation of a basket-style sediment trap.
The water flow rate is 55 l/min.
Yes, the drain features a reversible panel in which a tile can be installed.
The panel width is 5 cm.
52 mm
Yes, the drain feet are adjustable.
This drain is not dedicated to that type of installation.
No. The drain is equipped with a wet siphon.
No.
Yes. Our drains include everything needed for installation.
Thickness is 1.2 mm.
A key is included in the set to lift the panel from the linear drain.
Yes, you can buy a panel for this drain or a decorative panel.
Yes, thanks to the included spacers, the panel stays firmly in place in the drain.
Yes. The customer can purchase a decorative glass panel to replace the panel provided in the kit.
