in Your Bathroom

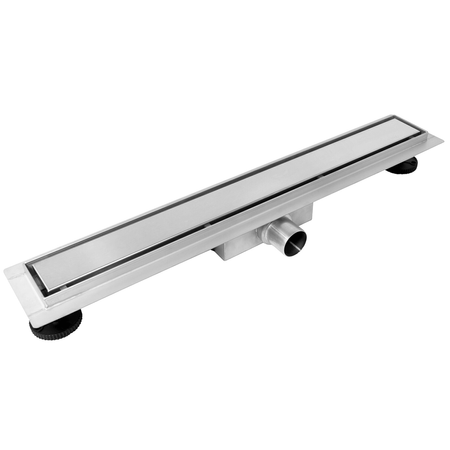

Duplex Next Inox Linear Drain is the perfect solution combining advanced functionality with aesthetics and reliability. Made of premium AISI 304 stainless steel, this product stands out for its durability, corrosion resistance, and ease of cleaning. With a wide range of available lengths—from 50 to 160 cm—Duplex Next Inox fits any shower space, offering not only practical use but also a stylish finish for every bathroom.
Model Duplex Next Inox was designed with user comfort and convenience in mind. Equipped with an innovative reversible panel, it offers the option of a smooth surface or tile inlay, allowing for perfect integration of the drain with the bathroom decor. A flow rate of 55 l/min ensures efficient water removal even under heavy use.
The siphon and basket-shaped trap made of durable ABS make cleaning easier and reduce maintenance requirements up to four times compared to traditional models. Adjustable legs enable precise installation, and the included sealing mat enhances safety by preventing leaks.
The reversible Duplex Next Inox panel allows you to choose between an elegant smooth surface and the option to embed a tile. This functionality enables seamless integration of the drain with the bathroom floor, delivering a modern, minimalist look.
Thanks to its advanced design, the Duplex Next Inox drain is an excellent solution for anyone who values reliability and ease of use. Precisely crafted spacers prevent the panel from shifting, and the sealing mat ensures watertight installation, eliminating the risk of leaks.
The Duplex Next Inox drain merges aesthetics with functionality, offering exceptional technical solutions such as an enhanced basket trap and grounding connection. This product perfectly meets the needs of modern users while underscoring the elegance of your bathroom.
BRAND: Balneo
SERIES: DUPLEX NEXT
COLOR: Chrome
SIZE: 160 cm
DIMENSIONS: 160 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 55 l/min
PATTERN: Smooth
DRAIN DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
TRENCH AND STRAINER THICKNESS: 1.2 cm
SURROUNDING FLANGE: 2 cm
ROTATING SIPHON: No
TILE INLAY POSSIBILITY: Yes
MIN. INSTALLATION DEPTH: 52 mm
INCLUDED: body, reversible panel, siphon, trap, sealing mat, adjustable legs, 40/50 reducer, panel removal hook
EAN: 5905351340278
SKU: Duplex160NWB
WARRANTY: 10 years
matters to us
WARRANTY 10 YEARS
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURN
The drain is made of stainless steel.

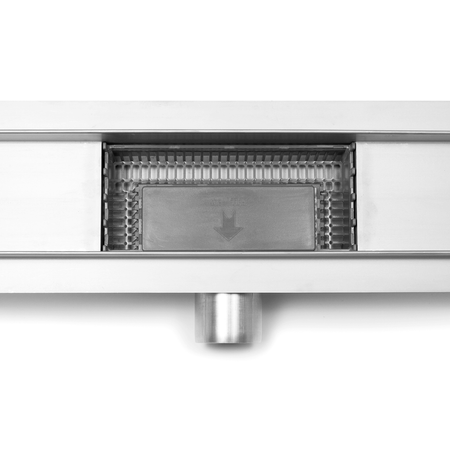

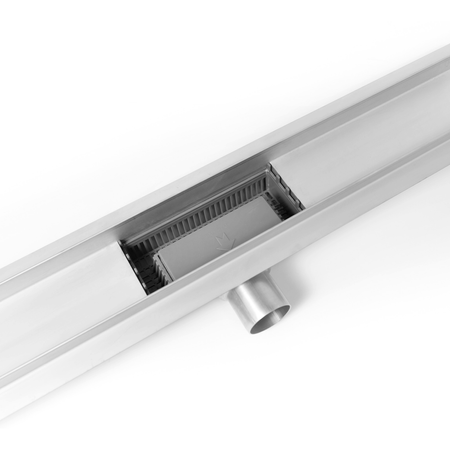

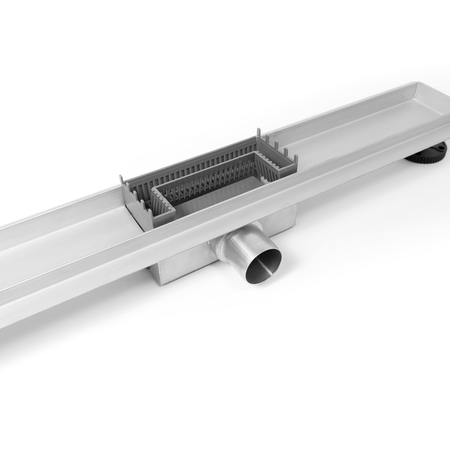

The enhanced trap reduces maintenance frequency by four times. The enlarged siphon chamber allows installation of a basket trap.
The water flow rate is 55 l/min.
Yes, the drain features a reversible panel in which you can install a tile.
The panel width is 5 cm.
52 mm
Yes, the drain legs are adjustable.
This drain is not dedicated to that type of installation.
No. The drain is equipped with a wet siphon.
No.
Yes. Our drains include everything needed for installation.
The thickness is 1.2 mm.
The set includes a key that allows lifting the panel from the linear drain.
Yes, you can buy a panel for this drain or a decorative panel.
Yes, thanks to the included spacers, the panel remains firmly in place.
Yes. The customer can purchase a decorative glass panel to replace the panel included in the set.
