in your bathroom

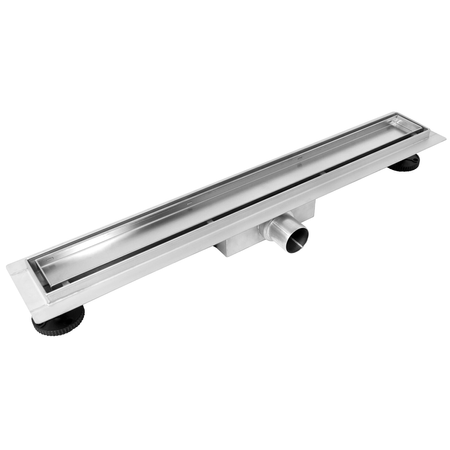

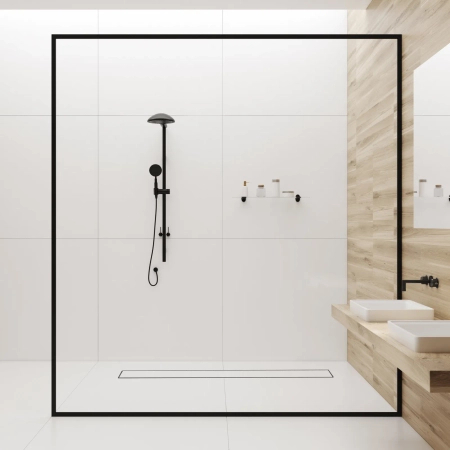

Duplex Next Inox linear drain is the perfect solution combining advanced functionality with aesthetics and reliability. Made from top-quality AISI 304 stainless steel, this product stands out for its durability, corrosion resistance, and ease of cleaning. With a wide range of available lengths—from 50 to 160 cm—Duplex Next Inox fits any shower space, offering not only practical performance but also a stylish finish to every bathroom.
Model Duplex Next Inox was created with user comfort and convenience in mind. Equipped with an innovative double-sided panel, it allows for a smooth surface or tile insertion, enabling the drain to perfectly match the bathroom décor. A flow rate of 55 l/min ensures efficient water evacuation even during heavy use.

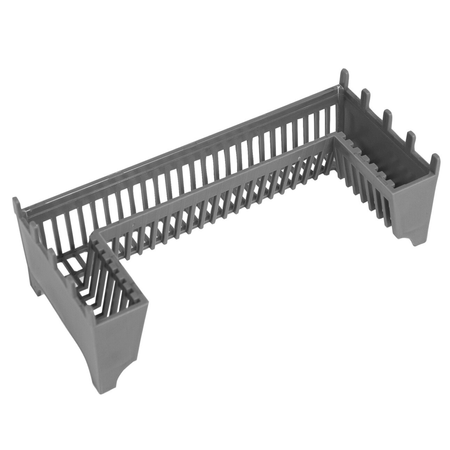

The siphon and basket-style trap made of durable ABS simplify cleaning and reduce maintenance requirements up to four times compared to traditional models. Adjustable feet allow precise installation, and the included sealing mat enhances safety by preventing leaks.

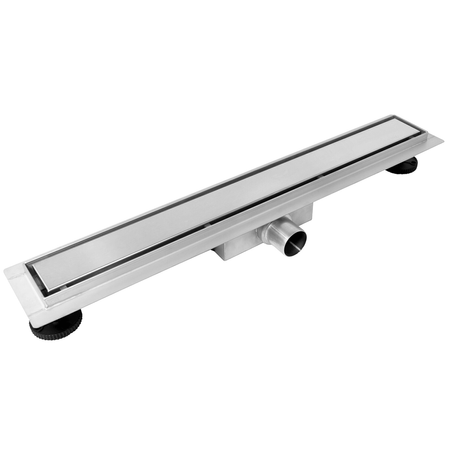

The double-sided Duplex Next Inox panel offers a choice between an elegant smooth surface and the option of embedding a tile. This feature allows the drain to blend seamlessly with the bathroom floor, ensuring a modern and minimalist appearance.
Thanks to its advanced design, the Duplex Next Inox drain is an excellent choice for anyone who values reliability and ease of use. Precisely engineered spacers prevent the panel from shifting, and the sealing mat guarantees a leak-proof installation, eliminating any risk of water ingress.
The Duplex Next Inox drain combines aesthetics with functionality, offering exceptional technical solutions such as an improved basket trap and grounded construction. This product perfectly meets the needs of modern users while highlighting the elegance of your bathroom.
BRAND: Balneo
SERIES: DUPLEX NEXT
COLOR: Chrome
SIZE: 90 cm

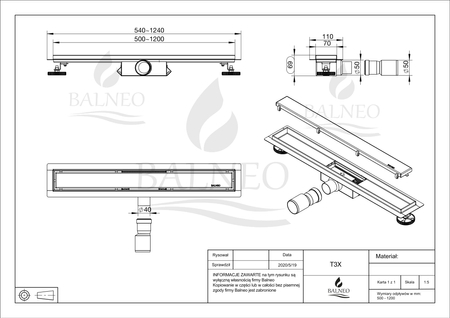

DIMENSIONS: 90 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 55 l/min.
PATTERN: Smooth
OUTLET DIAMETER: 40 mm
DRAIN COVER WIDTH: 6.3 cm
CHANNEL & GRATE THICKNESS: 1.2 cm
SURROUNDING FLANGE: 2 cm
ROTATING SIPHON: No
TILE INSERTION OPTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
IN THE SET: body, double-sided panel, siphon, trap basket, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5907699005710
SKU: Duplex90N
WARRANTY: 10 years
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
The drain is made of stainless steel.

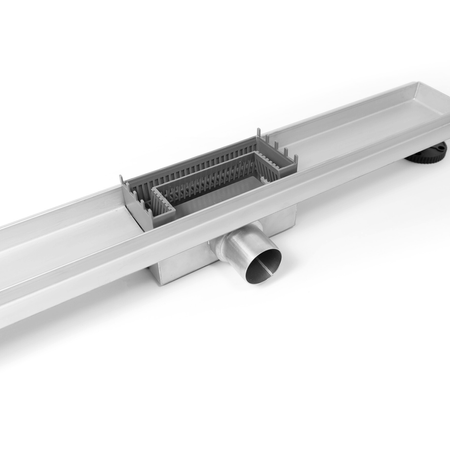

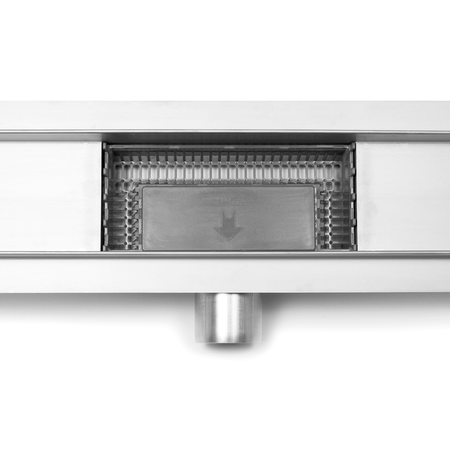

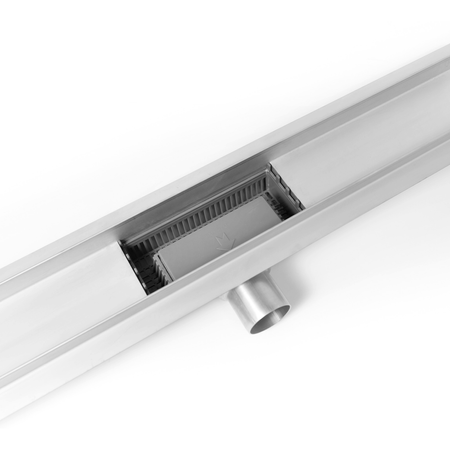

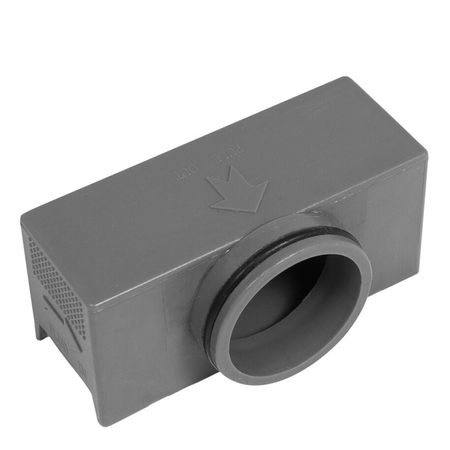

The improved trap requires cleaning four times less often. The enlarged siphon chamber allows for a basket-style trap installation.
The water flow rate is 55 l/min.
Yes, the drain has a reversible panel where you can insert a tile.
The panel width is 5 cm.
52 mm
Yes, the drain’s feet are adjustable.
This drain is not designed for that type of installation.
No. The drain is equipped with a wet siphon.
No.
Yes. Everything needed for installation is included.
1.2 mm.
The set includes a key that allows you to lift the panel out of the linear drain.
Yes, you can buy a panel or a decorative panel separately.
Yes, thanks to the included spacers, the panel stays securely in place.
Yes. You can purchase a decorative glass panel to replace the standard one included in the set.
