Odpływ liniowy podłogowy Balneo Duplex Standard 100 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Odpływ liniowy podłogowy Balneo Duplex Standard 100 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Technical data
Brand
Balneo
EAN
5907699005055
SKU
Duplex100
Producer code
5907699005055
Series
DUPLEX STANDARD
Drain type
Linear
Length
100 cm
Minimum installation depth
52 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Gutter and grate thickness
1,2 cm
Swivel siphon
No
Throughput
49 l/min.
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg

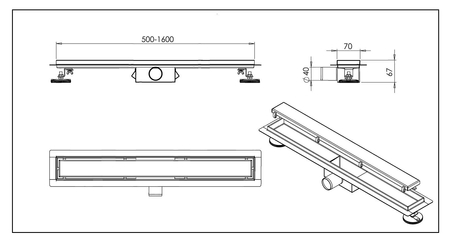

Dimensions
100 x 7 x 5,2 cm
Size
100 cm
DUPLEX STANDARD INOX – CLASSIC STYLE AND FUNCTIONALITY
in Your Bathroom
Linear drain Duplex Standard Inox is the perfect solution for any modern bathroom. Made of stainless steel, it features durability, corrosion resistance, and a sleek appearance. Precisely crafted with a dual-function panel that adapts to any interior design, it offers unmatched functionality and elegance. The Duplex Standard Inox model suits both minimalist and more traditional bathroom arrangements, ensuring years of comfortable use.
DUPLEX STANDARD INOX – STRENGTH AND ELEGANCE IN ONE
Duplex Standard Inox drain guarantees top quality. Made of durable AISI 304 stainless steel, the drain is protected against mechanical damage and corrosion, making it a long-lasting investment. Precisely welded seams ensure leak-tightness, and the 1.2 mm wall thickness sets it apart from competing products, guaranteeing exceptional robustness.
With adjustable legs, installation is easy and flexible, and the included sealing mat enhances user safety. The drain has a flow rate of 49 l/min, effectively removing water even under heavy use. The reversible panel allows for tile installation, ensuring seamless integration with your bathroom floor for a cohesive, modern look.
DUAL-FUNCTION PANEL – FITS ANY INTERIOR
The Duplex Standard Inox dual-function panel allows tile installation, ensuring perfect integration with your bathroom floor. This feature provides a modern, minimalist look while enhancing the product’s functionality.
EASE OF USE AND MAINTENANCE
The Duplex Standard Inox model is designed with users in mind. A convenient panel removal system using the included key and a durable ABS trap ensure easy cleaning and maintenance.
SAFETY AND COMFORT
The Duplex Standard Inox drain combines aesthetics with functionality. With the included sealing mat and precisely crafted welds, it guarantees user safety and leak prevention.
TECHNICAL DATA
BRAND: Balneo
SERIES: DUPLEX STANDARD
COLOR: Chrome
SIZE: 100 cm
DIMENSIONS: 100 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 303 stainless steel
FINISH: Stainless steel
TYPE OF DRAIN: Linear
FLOW RATE: 49 l/min
DRAIN DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
SURROUNDING FLANGE: 2 cm
SWIVEL TRAP: No
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDES: body, reversible panel, trap, sediment bucket, sealing mat, adjustable legs, 40/50 reducer, panel removal hook
EAN: 5907699005055
SKU: Duplex100
WARRANTY: 10 years, 2 years on coating
YOUR SAFETY
matters to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFIED
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.

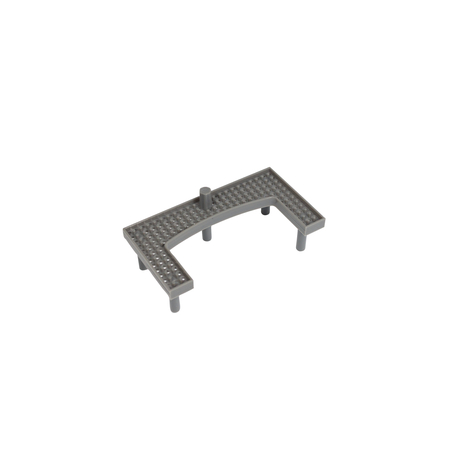

What is the difference between the sediment bucket in Duplex Standard and Duplex Next?
The sediment bucket in the drain is flat on legs.
What is the water flow rate of the drain?
The water flow rate is 49 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel that allows tile installation.
What is the panel width?
The panel width is 5 cm.
What is the minimum installation depth for this drain?
52 mm
Are the drain legs adjustable?
Yes, the drain legs are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not designed for that type of installation.
Does the drain have a dry trap?
No. The drain is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain include the full installation kit?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
The thickness is 1 mm.
How do you remove the panel from the linear drain?
The kit includes a key that allows lifting the panel from the linear drain.
Can a panel for the linear drain be purchased separately?
Yes, panels can be purchased separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays securely in the drain.
