Odpływ liniowy podłogowy Balneo Duplex Standard 110 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Odpływ liniowy podłogowy Balneo Duplex Standard 110 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Technical data
Brand
Balneo
EAN
5907699005291
SKU
Duplex110
Producer code
5907699005291
Series
DUPLEX STANDARD
Drain type
Linear
Length
110 cm
Minimum installation depth
52 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Gutter and grate thickness
1,2 cm
Swivel siphon
No
Throughput
49 l/min.
Siphon included
Yes
Contents of the kit

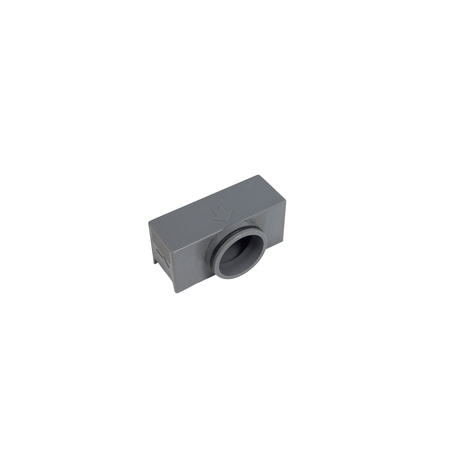

Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg

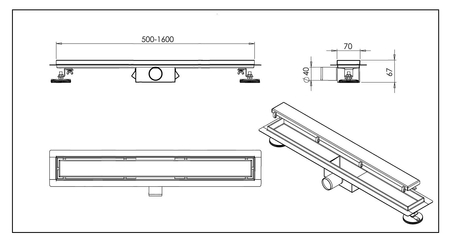

Dimensions
110 x 7 x 5,2 cm
Size
110 cm
DUPLEX STANDARD INOX - CLASSIC STYLE AND FUNCTIONALITY
in Your Bathroom

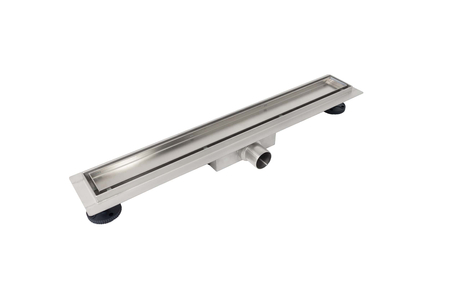

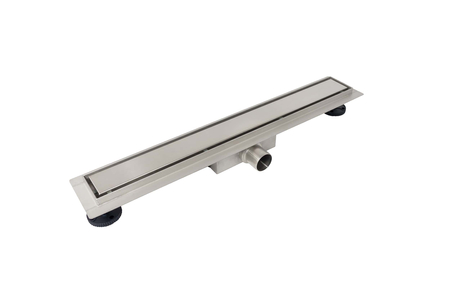

The Duplex Standard Inox linear drain is an excellent solution for any modern bathroom. Made from stainless steel, it offers durability, corrosion resistance, and an attractive appearance. Precisely crafted, with a dual-function panel that allows adaptation to any interior décor, it delivers unparalleled functionality and elegance. The Duplex Standard Inox model suits both minimalist and more traditional bathroom designs, ensuring years of comfortable use.
DUPLEX STANDARD INOX - DURABILITY AND ELEGANCE IN ONE
The Duplex Standard Inox drain guarantees top quality. Made from durable AISI 304 stainless steel, it is protected against mechanical damage and corrosion, making it a long-lasting investment. Precision welds ensure watertightness, and the 1.2 mm wall thickness sets it apart from competing products, guaranteeing exceptional sturdiness.
Thanks to its adjustable feet, installation is easy and flexible, and the included sealing mat enhances safety during use. With a flow rate of 49 l/min, the drain effectively removes water even under heavy use. The reversible panel allows for tile insertion, enabling full integration with the bathroom floor for a cohesive and modern appearance.

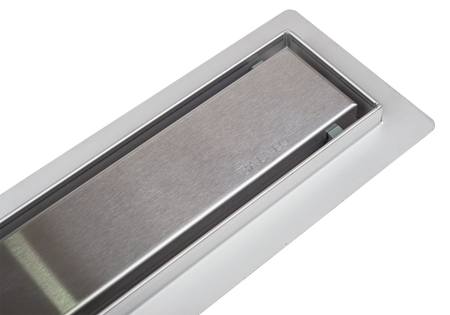

DUAL-FUNCTION PANEL - FITTING EVERY INTERIOR
The Duplex Standard Inox dual-function panel allows tile installation, so the drain seamlessly blends into the bathroom floor. This feature provides a modern, minimalist look while enhancing the product's functionality.
EASE OF USE AND MAINTENANCE
The Duplex Standard Inox model is designed with the user in mind. The convenient panel removal system, using the included key, and the durable ABS trap ensure easy cleaning and maintenance.
SAFETY AND COMFORT
The Duplex Standard Inox drain is a product that combines aesthetics with functionality. With the included sealing mat and precision welds, it ensures safe use and leak prevention.
TECHNICAL DATA
BRAND: Balneo
SERIES: DUPLEX STANDARD
COLOR: Chrome
SIZE: 110 cm
DIMENSIONS: 110 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 303 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 49 l/min.
DRAIN DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
SURROUND FLANGE: 2 cm
ROTATING TRAP: No
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDES: body, reversible panel, trap, sediment bucket, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5907699005291
SKU: Duplex110
WARRANTY: 10 years, 2 years on coating
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.

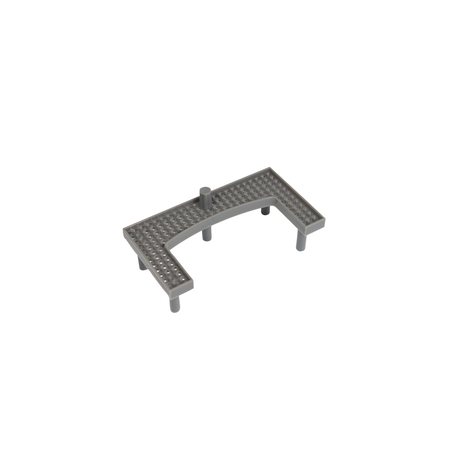

How does the sediment bucket in the Duplex Standard drain differ from the Duplex Next?
The sediment bucket in this drain is flat on legs.
What is the water flow rate of the drain?
The water flow rate is 49 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel allowing tile installation.
What is the width of the panel?
The panel width is 5 cm.
What is the minimum installation depth for this drain?
52 mm
Are the drain feet adjustable?
Yes, the drain feet are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not designed for that type of installation.
Does the drain have a dry trap?
No. The drain is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain come with the full installation kit?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
1 mm thick.
How do you remove the panel from the linear drain?
The set includes a key that allows lifting the panel from the linear drain.
Can you purchase an additional panel for the linear drain?
Yes, you can buy the panel separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel remains fixed in the drain.
