Odpływ liniowy podłogowy Balneo Duplex Standard 120 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Odpływ liniowy podłogowy Balneo Duplex Standard 120 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Technical data
Brand
Balneo
EAN
5907699005062
SKU
Duplex120
Producer code
5907699005062
Series
DUPLEX STANDARD
Drain type
Linear
Length
120 cm
Minimum installation depth
52 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Gutter and grate thickness
1,2 cm
Swivel siphon
No
Throughput
49 l/min.
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg
Dimensions
120 x 7 x 5,2 cm
Size
120 cm
DUPLEX STANDARD INOX - CLASSIC STYLE & FUNCTIONALITY
in Your Bathroom
The Duplex Standard Inox linear drain is the perfect solution for any modern bathroom. Made of stainless steel, it offers durability, corrosion resistance, and an elegant appearance. Precisely engineered with a dual-function panel that adapts to any interior style, it provides unmatched functionality and sophistication. The Duplex Standard Inox suits both minimalist and classic bathroom designs, ensuring years of comfortable use.
DUPLEX STANDARD INOX - STRENGTH & ELEGANCE COMBINED
The Duplex Standard Inox drain guarantees top quality. Constructed from durable AISI 304 stainless steel, it is protected against mechanical damage and corrosion, making it a long-lasting investment. Precision-welded seams ensure leak-proof performance, and the 1.2 mm wall thickness stands out among competing products for exceptional solidity.
With adjustable feet, installation is easy and flexible, and the included sealing mat enhances safety. Offering a 49 l/min flow rate, it efficiently drains water even under heavy use. The reversible panel allows for tile installation, fully integrating the drain into your bathroom floor for a seamless, modern look.

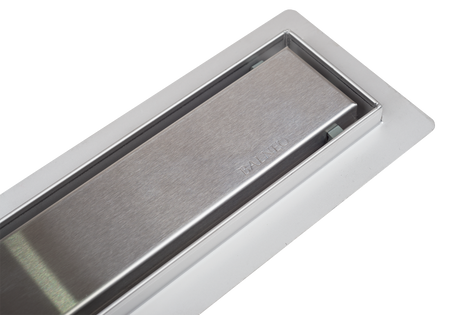

DUAL-FUNCTION PANEL – FITS ANY INTERIOR
The dual-function panel of the Duplex Standard Inox allows for tile installation, letting the drain blend seamlessly into the bathroom floor. This feature delivers a modern, minimalist look while enhancing product functionality.
EASE OF USE & MAINTENANCE

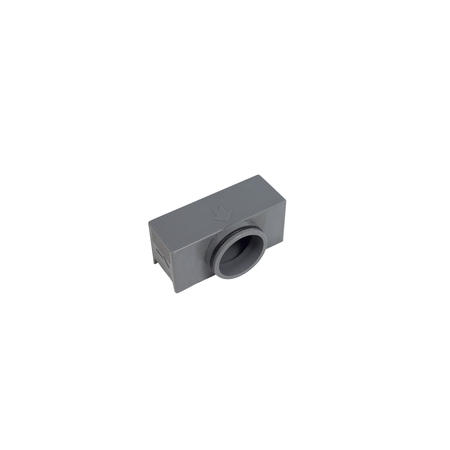

The Duplex Standard Inox model is user-focused. It features a convenient panel removal system with the included key, and the durable ABS trap makes cleaning and maintenance effortless.
SAFETY & COMFORT
The Duplex Standard Inox drain combines aesthetics with functionality. With the included sealing mat and precision-welded seams, it guarantees safe operation and leak elimination.
TECHNICAL SPECIFICATIONS
BRAND: Balneo
SERIES: DUPLEX STANDARD
COLOR: Chrome
SIZE: 120 cm
DIMENSIONS: 120 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 303 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 49 l/min
DRAIN DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
FLANGE: 2 cm
SWIVEL SYPHON: No
TILE INSERTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDES: body, reversible panel, siphon, trap, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5907699005062
SKU: Duplex120
WARRANTY: 10 years; 2 years on coating
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURN
FAQ
What material is the drain made of?
The drain is made of stainless steel.
How does the trap in the Duplex Standard differ from the Duplex Next?
The trap in this drain is flat on its legs.
What is the water flow rate of the drain?
The water flow rate is 49 l/min.
Does the drain have a reversible panel?
Yes, it features a reversible panel that can accommodate a tile.
What is the width of the panel?
The panel width is 5 cm.
What is the minimum installation depth?
52 mm
Are the drain’s feet adjustable?
Yes, the feet are adjustable.
Can the drain be installed in vinyl panels?
No, this drain is not designed for that installation method.
Is there a dry trap in the drain?
No. The drain is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain come with a full installation kit?
Yes. Everything needed for installation is included.
What is the thickness of the metal?
1 mm.
How do you remove the panel from the linear drain?
The set includes a key that allows you to lift the panel from the drain.
Can you purchase a panel separately?
Yes, the panel is available for separate purchase.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel remains securely in place.
