Odpływ liniowy podłogowy Balneo Duplex Standard 50 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Odpływ liniowy podłogowy Balneo Duplex Standard 50 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Technical data
Brand
Balneo
EAN
5907699005000
SKU
Duplex50
Producer code
5907699005000
Series
DUPLEX STANDARD
Drain type
Linear
Length
50 cm
Minimum installation depth
52 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Gutter and grate thickness
1,2 cm
Swivel siphon
No
Throughput
49 l/min.
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg
Dimensions
50 x 7 x 5,2 cm
Size
50 cm
DUPLEX STANDARD INOX - CLASSIC AND FUNCTIONALITY
in your bathroom

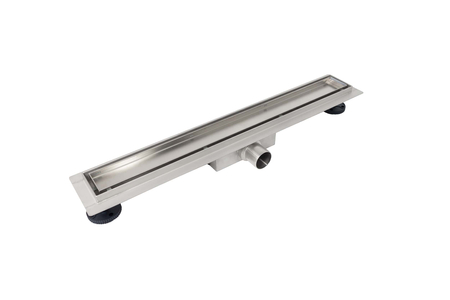

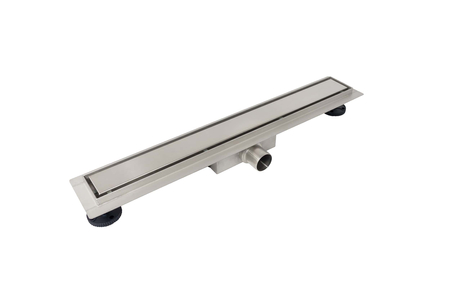

Linear drain Duplex Standard Inox is an excellent solution for any modern bathroom. Thanks to its stainless steel construction, it offers durability, corrosion resistance, and a sleek appearance. Precision-engineered with a dual-function panel that can be tailored to any décor, it provides unmatched functionality and elegance. The Duplex Standard Inox model fits both minimalist and more classic bathroom designs, ensuring years of comfortable use.
DUPLEX STANDARD INOX - SOLIDITY AND ELEGANCE IN ONE
The Duplex Standard Inox drain guarantees top quality. Constructed from durable AISI 304 stainless steel, it is protected against mechanical damage and corrosion, making it a lasting investment. Precisely executed welds ensure watertightness, and the 1.2 mm wall thickness sets it apart from competing products, delivering exceptional robustness.
Thanks to adjustable feet, installation is simple and flexible, and the included sealing mat enhances user safety. With a flow rate of 49 l/min, it effectively evacuates water even under heavy use. The reversible panel allows for tile insertion, achieving full integration with the bathroom floor for a cohesive, modern look.
DUAL-FUNCTION PANEL - ADAPTS TO ANY INTERIOR

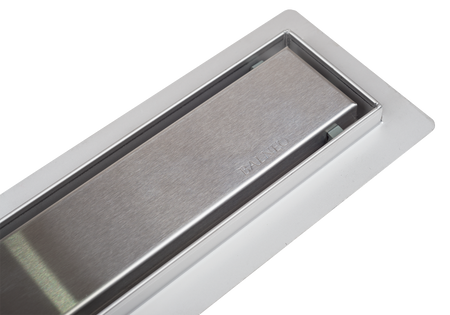

The dual-function panel of the Duplex Standard Inox allows tile installation, so the drain blends seamlessly into the bathroom floor. This feature ensures a modern, minimalist look while enhancing product functionality.
EASE OF USE AND MAINTENANCE

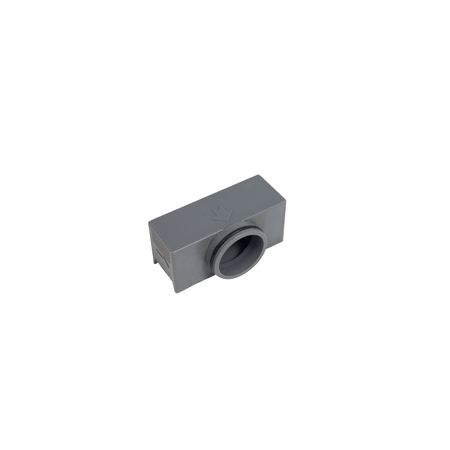

The Duplex Standard Inox model is designed with users in mind. A convenient panel-removal system using the included key and a durable ABS trap ensure easy cleaning and maintenance.
SAFETY AND COMFORT
The Duplex Standard Inox drain combines aesthetics with functionality. The included sealing mat and precisely executed welds guarantee user safety and leak prevention.
TECHNICAL DATA
BRAND: Balneo
SERIES: DUPLEX STANDARD
COLOR: Chrome
SIZE: 50 cm
DIMENSIONS: 50 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 303 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 49 l/min
DRAIN DIAMETER: 40 mm
DRAIN COVER WIDTH: 6.3 cm
SURROUNDING FLANGE: 2 cm
ROTATING SIPHON: No
TILE INSERTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDED: body, double-sided panel, siphon, trap, sealing mat, adjustable feet, 40/50 reducer, panel-removal hook
EAN: 5907699005000
SKU: Duplex50
WARRANTY: 10 years; 2 years on the coating
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.
What is the difference between the sediment trap of the Duplex Standard and Duplex Next?

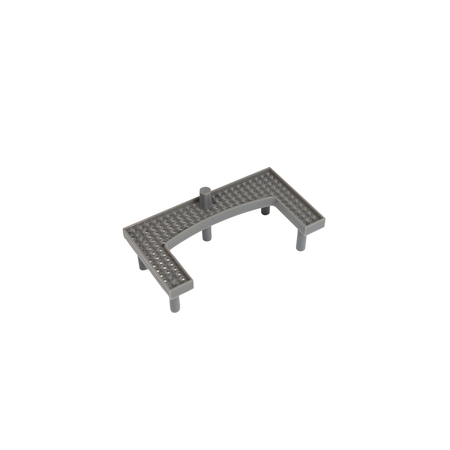

The sediment trap in this drain is flat on legs.
What is the water flow rate of the drain?
The flow rate is 49 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel in which a tile can be installed.
What is the width of the panel?
The panel width is 5 cm.
What is the minimum installation depth for this drain?
52 mm
Are the drain’s feet adjustable?
Yes, the drain’s feet can be adjusted.
Is it possible to install the drain in vinyl panels?
This drain is not dedicated to this type of installation.
Does the drain have a dry trap?
No. The drain is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain include a full installation kit?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
The thickness is 1 mm.
How do you remove the panel from the linear drain?
A key is included in the kit that allows lifting the panel from the linear drain.
Can a panel for the linear drain be purchased separately?
Yes, the panel can be purchased separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays securely in place.
