Odpływ liniowy podłogowy Balneo Duplex Standard 60 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Odpływ liniowy podłogowy Balneo Duplex Standard 60 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Technical data
Brand
Balneo
EAN
5907699005017
SKU
Duplex60
Producer code
5907699005017
Series
DUPLEX STANDARD
Drain type
Linear
Length
60 cm
Minimum installation depth
52 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Gutter and grate thickness
1,2 cm
Swivel siphon
No
Throughput
49 l/min.
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg

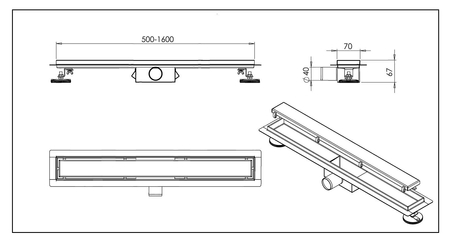

Dimensions
60 x 7 x 5,2 cm
Size
60 cm
DUPLEX STANDARD INOX - CLASSIC STYLE & FUNCTIONALITY
in Your Bathroom

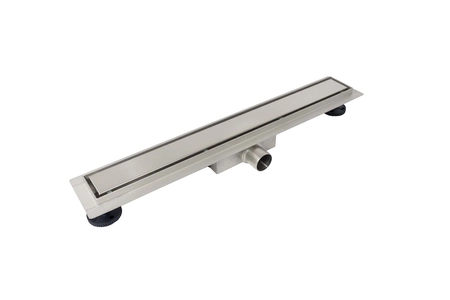

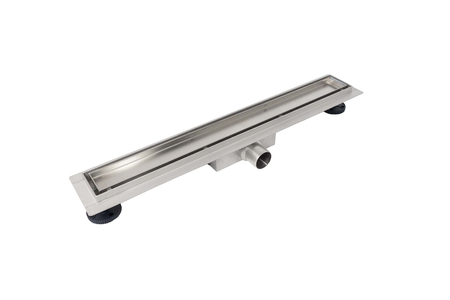

The linear drain Duplex Standard Inox is an excellent solution for any modern bathroom. Thanks to its stainless steel construction, it offers durability, corrosion resistance, and a sleek appearance. Precisely crafted with a dual-function panel that adapts to any interior décor, it delivers unmatched functionality and elegance. The Duplex Standard Inox model suits both minimalist and more classic bathroom designs, ensuring comfortable use for many years.
DUPLEX STANDARD INOX - DURABILITY & ELEGANCE IN ONE
The Duplex Standard Inox drain guarantees top quality. Made from robust AISI 304 stainless steel, it is protected against mechanical damage and corrosion, making it a long-lasting investment. Precision welds ensure watertightness, and a 1.2 mm wall thickness sets it apart from competing products, offering exceptional sturdiness.
Thanks to adjustable feet, installation is easy and flexible, and the included sealing mat enhances user safety. With a flow rate of 49 l/min, it effectively drains water even under heavy use. The reversible panel allows for tile insertion, enabling full integration with the bathroom floor for a cohesive, modern look.
DUAL-FUNCTION PANEL - FITS ANY INTERIOR

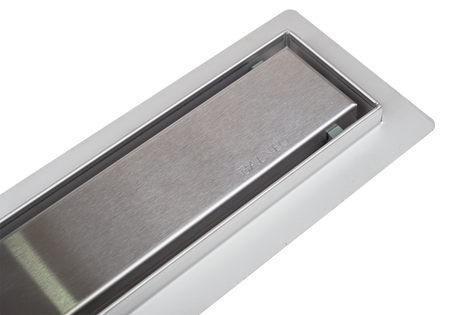

The dual-function panel of the Duplex Standard Inox allows for tile installation, so the drain blends seamlessly with the bathroom floor. This feature provides a modern, minimalist look while enhancing product functionality.
EASE OF USE AND MAINTENANCE

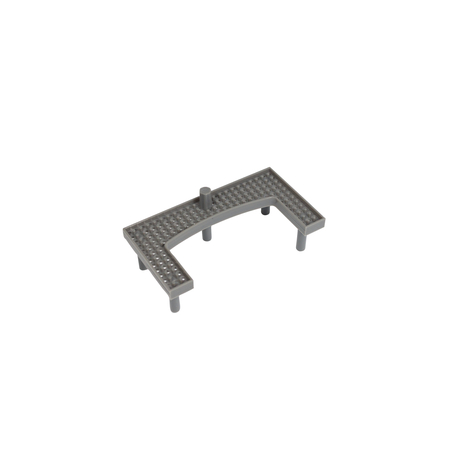

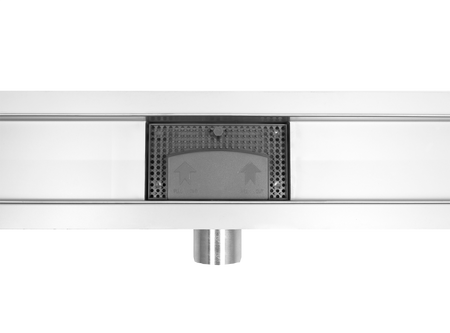

The Duplex Standard Inox model was designed with users in mind. Its convenient panel removal system using the included key, and the durable ABS strainer ensure easy cleaning and maintenance.
SAFETY & COMFORT
The Duplex Standard Inox drain combines aesthetics with functionality. The included sealing mat and precision welds ensure safe use and prevent leaks.
TECHNICAL SPECIFICATIONS
BRAND: Balneo
SERIES: DUPLEX STANDARD
COLOR: Chrome
SIZE: 60 cm
DIMENSIONS: 60 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 303 stainless steel
FINISH: Stainless steel
TYPE OF DRAIN: Linear
FLOW RATE: 49 l/min
DRAIN DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
FLANGE: 2 cm
SWIVEL TRAP: No
TILE INSERTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm

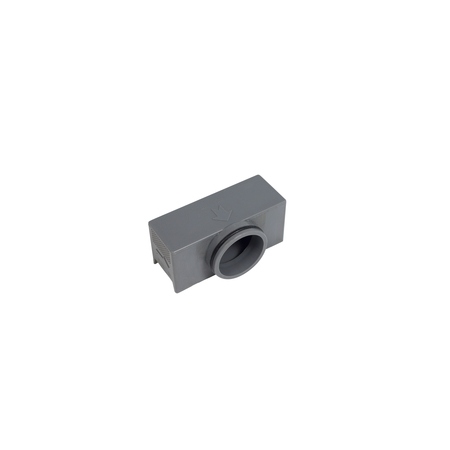

INCLUDED: housing, reversible panel, siphon, strainer, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5907699005017
SKU: Duplex60
WARRANTY: 10 years, 2 years on coating
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What material is the drain made of?
The drain is made of stainless steel.
What is the difference between the sediment trap in the Duplex Standard and Duplex Next drains?
The sediment trap is flat with feet.
What is the water flow rate of the drain?
The flow rate is 49 l/min.
Do the drains have a reversible panel?
Yes, it has a reversible panel where a tile can be installed.
What is the width of the panel?
The panel width is 5 cm.
What is the minimum installation depth for this drain?
52 mm
Are the drain feet adjustable?
Yes, the feet can be adjusted.
Is it possible to install the drain in vinyl panels?
This drain is not dedicated to that type of installation.
Does the drain have a dry trap?
No. The drain is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain come with the complete installation set?
Yes. Everything needed for installation is included.
What is the metal thickness?
1 mm.
How to remove the panel from the linear drain?
A key is included, which allows lifting the panel from the linear drain.
Is it possible to purchase the panel separately?
Yes, the panel can be purchased separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays firmly in place.
