Odpływ liniowy podłogowy Balneo Duplex Standard 90 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Odpływ liniowy podłogowy Balneo Duplex Standard 90 cm dwustronny ze stali nierdzewnej szczotkowanej z niskim syfonem
Technical data
Brand
Balneo
EAN
5907699005031
SKU
Duplex90
Producer code
5907699005031
Series
DUPLEX STANDARD
Drain type
Linear
Length
90 cm
Minimum installation depth
52 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Gutter and grate thickness
1,2 cm
Swivel siphon
No
Throughput
49 l/min.
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg

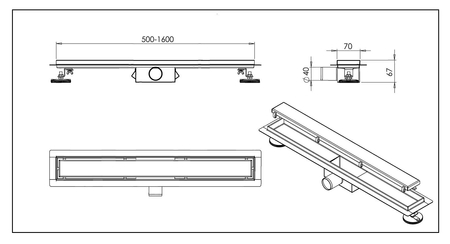

Dimensions
90 x 7 x 5,2 cm
Size
90 cm
DUPLEX STANDARD INOX - CLASSIC STYLE AND FUNCTIONALITY
in Your Bathroom

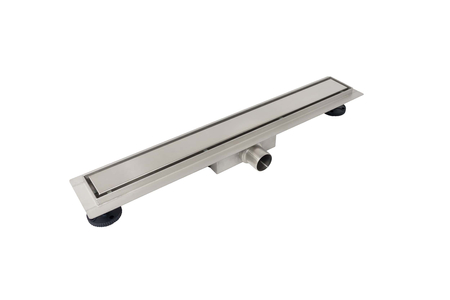

The Duplex Standard Inox linear drain is an excellent solution for any modern bathroom. Made of stainless steel, it is characterized by durability, corrosion resistance, and an attractive design. Precisely crafted with a dual-function panel that adapts to any interior style, it offers unmatched functionality and elegance. The Duplex Standard Inox model suits both minimalist and more classic bathroom arrangements, ensuring years of comfortable use.
DUPLEX STANDARD INOX - STRENGTH AND ELEGANCE IN ONE
The Duplex Standard Inox drain guarantees the highest quality. Made of durable AISI 304 stainless steel, it is protected against mechanical damage and corrosion, making it a long-lasting investment. Precisely executed welds ensure watertightness, and a 1.2 mm wall thickness sets it apart from competing products, ensuring exceptional solidity.
With adjustable legs, installation is easy and flexible, and the included sealing mat enhances safety. The drain’s 49 l/min flow rate means it effectively removes water even under heavy use. The reversible panel allows tile installation for full integration with the bathroom floor, giving the room a cohesive, modern look.

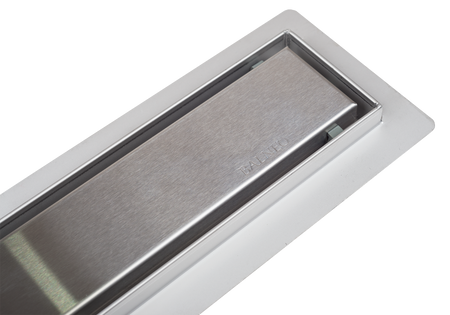

DUAL-FUNCTION PANEL – SUITABLE FOR ANY INTERIOR
The dual-function panel of the Duplex Standard Inox allows tile installation, enabling the drain to seamlessly integrate with the bathroom floor. This feature provides a modern, minimalist look while enhancing the product’s functionality.
EASE OF USE AND MAINTENANCE

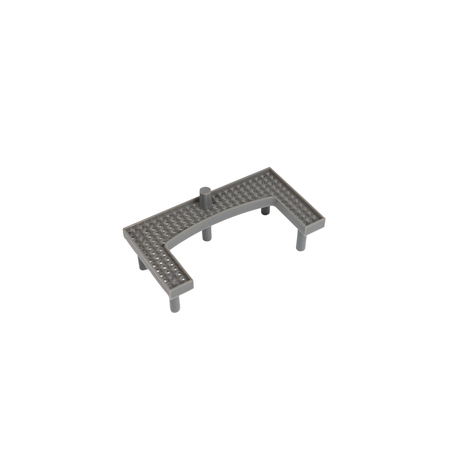

The Duplex Standard Inox model is designed with users in mind. The convenient panel removal system, operated with the included key, and the durable ABS sediment trap ensure easy cleaning and maintenance.
SAFETY AND COMFORT
The Duplex Standard Inox drain combines aesthetics with functionality. Thanks to the included sealing mat and precisely executed welds, it guarantees safe use and eliminates leaks.
TECHNICAL DATA
BRAND: Balneo
SERIES: DUPLEX STANDARD
COLOR: Chrome
SIZE: 90 cm
DIMENSIONS: 90 × 7 × 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 303 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 49 l/min
DRAIN DIAMETER: 40 mm
DRAIN COVER WIDTH: 6.3 cm
SURROUNDING FLANGE: 2 cm
ROTATING S-TRAP: No
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDED: body, reversible panel, siphon, sediment trap, sealing mat, adjustable legs, 40/50 reducer, panel removal hook
EAN: 5907699005031
SKU: Duplex90
WARRANTY: 10 years, 2 years on coating
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.
How does the sediment trap of Duplex Standard differ from Duplex Next?
The sediment trap in the drain is flat on its legs.
What is the water flow rate of the drain?
The water flow rate is 49 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel where a tile can be installed.
What is the width of the panel?
The panel width is 5 cm.
What is the minimum installation depth for this drain?
52 mm
Are the drain legs adjustable?
Yes, the drain legs can be adjusted.
Is it possible to install the drain in vinyl panels?
This drain is not intended for that installation method.
Is there a dry siphon in the drain?
No. The drain is equipped with a wet siphon.
Can the siphon be replaced with a dry one?
No.
Does the drain come with a complete installation kit?
Yes. Our drains include everything needed for installation.
What is the thickness of the metal?
Thickness is 1 mm.
How do you remove the panel from the linear drain?
The set includes a key that allows you to lift the panel from the linear drain.
Can a panel for the linear drain be purchased separately?
Yes, you can purchase the panel separately.
Is the panel stationary in the linear drain?
Yes, thanks to the included spacers, the panel stays firmly in place.
