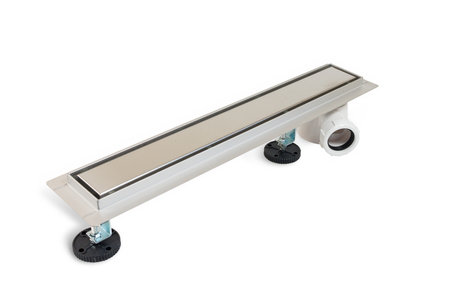

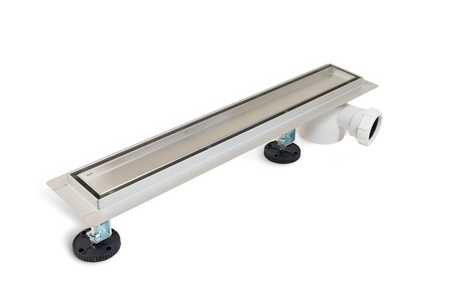

Odpływ liniowy podłogowy Balneo Side Drain 100 cm dwustronny z panelem ze stali nierdzewnej szczotkowanej z bocznym syfonem
Odpływ liniowy podłogowy Balneo Side Drain 100 cm dwustronny z panelem ze stali nierdzewnej szczotkowanej z bocznym syfonem
Technical data
Brand
Balneo
EAN
5907699005550
SKU
S-D 1000
Producer code
5907699005550
Series
SIDE-DRAIN
Drain type
Linear
Length
100 cm
Throughput
49 l/min.
Minimum installation depth
85 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Possibility to paste a plate
Yes
Swivel siphon
Yes
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Gutter and grate thickness
1,2 cm
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg
Dimensions
100 x 11 x 10,5 cm
Size
100 cm
SIDE-DRAIN LINEAR DRAIN - INNOVATIVE DESIGN
and Functionality
The Side-Drain series is an innovative solution in the world of bathroom fixtures, combining modern design with reliable functionality. Made from high-quality AISI 304 stainless steel, these drains stand out for their exceptional durability and aesthetics. They are the only drains on the market with a side siphon, designed for maximum user comfort and ease of installation. The Side-Drain series is the perfect choice for those seeking durable and contemporary solutions for their bathroom.
SIDE-DRAIN INOX - MODERNITY AND DURABILITY

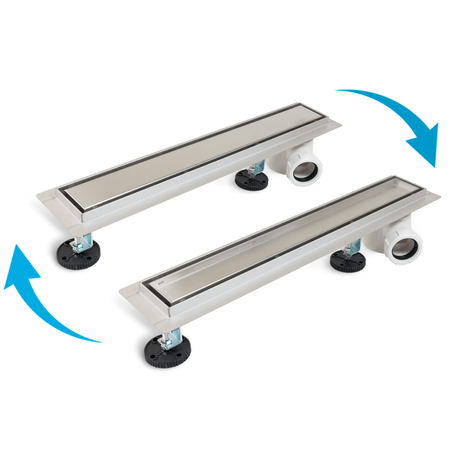

The Side-Drain Inox linear drain combines solid construction and functionality, making it a perfect fit for modern bathrooms. Thanks to its reversible panel, users can choose between a smooth surface or tile inlay, allowing full customization to any interior design. This innovative solution not only enhances aesthetics but also ensures durability and resistance to daily use. The drain is equipped with a rotating siphon, which allows precise alignment of the water outlet with the plumbing, significantly simplifying installation even in more complex piping layouts.
With a compact installation depth of only 85 mm, Side-Drain Inox is suitable for both minimalist and more elaborate bathroom projects, offering installation flexibility. The set includes all necessary installation accessories, such as a sealing mat, spacers, and a hook for easy panel removal. Thoughtful details, such as perfectly matched spacers and panel locks that prevent shifting, make the drain extremely user-friendly.
A flow rate of 49 l/min ensures reliable and fast water drainage, even during heavy usage. Side-Drain Inox is also easy to maintain – the basket strainer made of durable ABS plastic allows quick cleaning, reducing maintenance frequency. It is the ideal solution for those looking for reliable and stylish products for their bathroom.
SIDE OUTLET - A BREAKTHROUGH IN INSTALLATION
The unique feature of the Side-Drain series is the side discharge siphon. This innovative solution allows for much more flexible positioning of the drain, making it ideal for non-standard plumbing layouts. Customers will appreciate the ease of installation and the ability to precisely adapt the drain to their specific bathroom design.
UNMATCHED DURABILITY AND AESTHETICS
Constructed from AISI 304 stainless steel with robotic welds, this product delivers outstanding quality. The wall thickness of 1.2 mm is 20% greater than in standard drains, ensuring durability and resistance to damage. The reversible panel allows full customization, and the precisely engineered spacers prevent panel movement, enhancing ease of use.
EASY MAINTENANCE
A flow capacity of 49 l/min and an easily accessible basket strainer minimize cleaning frequency. The set also includes a hook for panel removal, making cleaning quick and effortless. With these features, the Side-Drain Inox drain meets the expectations of even the most demanding users.
ELEGANCE IN EVERY DETAIL
With its modern design and customizable panel, the Side-Drain Inox drain becomes not only a functional element but also an elegant accent in any bathroom. It's a choice that combines aesthetics with reliability.
TECHNICAL DATA
BRAND: Balneo
SERIES: SIDE-DRAIN
COLOR: Chrome
SIZE: 100 cm

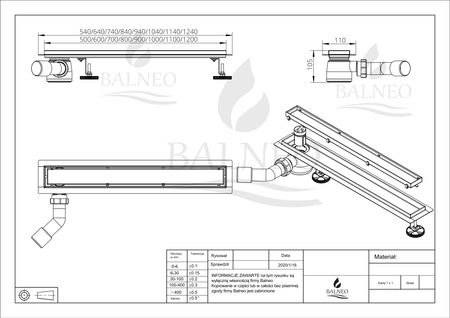

DIMENSIONS: 100 x 11 x 10.5 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 49 l/min
PATTERN: Smooth
OUTLET DIAMETER: 40 mm
DRAIN COVER WIDTH: 6.3 cm
CHANNEL AND GRATE THICKNESS: 1.2 cm
SURROUND FLANGE: 2 cm
ROTATING SIPHON: Yes
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 85 mm
INCLUDED: body, reversible panel, siphon, strainer, sealing mat, adjustable feet, 40/50 reducer, hook for panel removal
EAN: 5907699005550
SKU: S-D 1000
WARRANTY: 10 years
YOUR SAFETY
matters to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.
What is the water flow capacity of the drain?
The water flow capacity is 49 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel that can accommodate a tile.
What is the width of the panel?
The panel width is 5 cm.
What is the minimum installation depth for this drain?
85 mm
Are the drain's legs adjustable?
Yes, the drain's legs are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not intended for that type of installation.
Does the drain have a dry siphon?
No. The drain is equipped with a wet siphon.
Can the siphon be replaced with a dry one?
No.
Does the drain come with a complete installation kit?
Yes. Our drains include everything needed for installation.
What is the thickness of the metal?
1 mm.
How do you remove the panel from the linear drain?
The set includes a key that allows you to lift the panel from the linear drain.
Can you purchase an additional panel for the linear drain?
Yes, you can buy a panel for this drain or a decorative panel.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel holds firmly in the drain.
