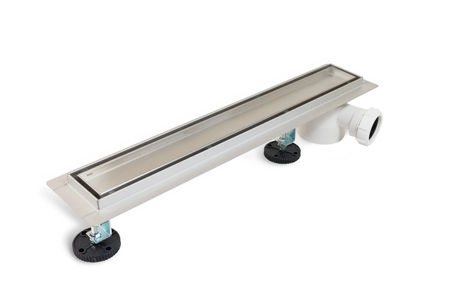

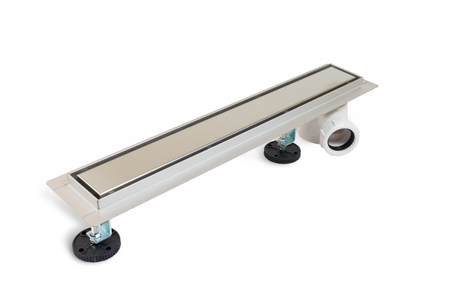

Odpływ liniowy podłogowy Balneo Side Drain 120 cm dwustronny z panelem ze stali nierdzewnej szczotkowanej z bocznym syfonem
Odpływ liniowy podłogowy Balneo Side Drain 120 cm dwustronny z panelem ze stali nierdzewnej szczotkowanej z bocznym syfonem
Technical data
Brand
Balneo
EAN
5907699005567
SKU
S-D 1200
Producer code
5907699005567
Series
SIDE-DRAIN
Drain type
Linear
Length
120 cm
Throughput
49 l/min.
Minimum installation depth
85 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Possibility to paste a plate
Yes
Swivel siphon
Yes
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Gutter and grate thickness
1,2 cm
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg

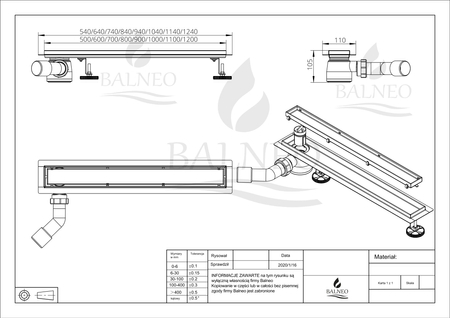

Dimensions
120 x 11 x 10,5 cm
Size
120 cm
LINEAR DRAIN SIDE-DRAIN - INNOVATIVE DESIGN
and Functionality
The Side-Drain series of drains is an innovative solution in the world of bathroom fixtures that combines modern design with reliable functionality. Made from high-quality AISI 304 stainless steel, these drains stand out for their exceptional durability and aesthetics. They are the only side-siphon drains on the market, designed for maximum user comfort and ease of installation. The Side-Drain series is an excellent choice for those seeking durable, contemporary solutions for their bathroom.
SIDE-DRAIN INOX - MODERNITY AND DURABILITY

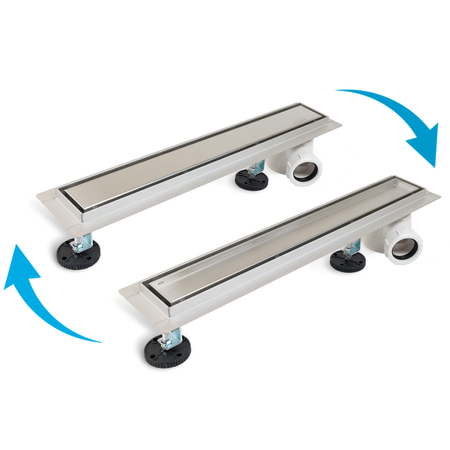

The linear drain Side-Drain Inox combines solid craftsmanship and functionality, making it perfect for modern bathrooms. Thanks to its reversible panel, users can choose between a smooth surface or tile-in option, allowing full personalization and adaptation to any interior design. This innovative solution not only enhances aesthetics but also ensures durability and resistance to everyday use. The drain is equipped with a swivel siphon that enables precise alignment of the water outlet towards the sewage system, significantly simplifying installation even in complex plumbing layouts.
With a compact installation height of only 85 mm, Side-Drain Inox is suitable for both minimalist and more elaborate bathroom projects, offering installation flexibility. The set includes all necessary mounting accessories: a sealing mat, spacers, and a hook for easy panel removal. Refined details, such as perfectly fitted spacers and stoppers preventing panel slippage, make the drain extremely user-friendly.
A flow rate of 49 l/min guarantees reliable and fast water drainage even under heavy use. Side-Drain Inox also offers easy maintenance – the basket trap made of durable ABS plastic allows quick cleaning, reducing service frequency. It is the ideal solution for those seeking reliable and stylish products for their bathroom.
SIDE OUTLET - A BREAKTHROUGH IN INSTALLATION
The unique feature of the Side-Drain series is the side outlet siphon. This innovative solution allows for much more flexible drain positioning, making it ideal for nonstandard plumbing layouts. Customers will appreciate the ease of installation and the ability to precisely tailor the drain to their specific bathroom project.
UNMATCHED DURABILITY AND AESTHETICS
Constructed from AISI 304 stainless steel with robotic welding for exceptional product quality. The wall thickness of 1.2 mm is 20% greater than standard drains, ensuring durability and resistance to damage. The reversible panel allows full customization, and the refined spacers prevent panel movement, enhancing user convenience.
EASY MAINTENANCE
A flow rate of 49 l/min and the easily accessible basket trap minimize cleaning frequency. The set also includes a hook for panel removal, making maintenance quick and hassle-free. With this functionality, the Side-Drain Inox drain meets the demands of even the most discerning users.
ELEGANCE IN EVERY DETAIL
Thanks to its modern design and panel customization options, the Side-Drain Inox drain becomes not only a functional element but also a decorative accent in any bathroom. It's a choice that combines aesthetics with reliability.
TECHNICAL DATA
BRAND: Balneo
SERIES: SIDE-DRAIN
COLOR: Chrome
SIZE: 120 cm
DIMENSIONS: 120 x 11 x 10.5 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 49 l/min
PATTERN: Smooth
OUTLET DIAMETER: 40 mm
OUTLET COVER WIDTH: 6.3 cm
CHANNEL AND GRATE THICKNESS: 1.2 cm
SURROUND FLANGE: 2 cm
SWIVEL SIPHON: Yes
TILE-IN OPTION: Yes
MINIMUM INSTALLATION DEPTH: 85 mm
IN THE SET: body, reversible panel, siphon, trap, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5907699005567
SKU: S-D 1200
WARRANTY: 10 years
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90 DAYS RETURN
FAQ
What is the drain made of?
The drain is made of stainless steel.
What is the water flow rate of the drain?
The water flow rate is 49 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel in which a tile can be installed.
What is the width of the panel?
The panel width is 5 cm.
What is the minimum installation depth for this drain?
85 mm
Are the drain feet adjustable?
Yes, the drain feet are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not designed for that type of installation.
Does the drain have a dry siphon?
No. The drain is equipped with a wet siphon.
Can the siphon be replaced with a dry one?
No.
Does the drain come with a full installation kit?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
The thickness is 1 mm.
How to remove the panel from the linear drain?
A key is included in the set that allows you to lift the panel from the linear drain.
Can I purchase an extra panel for the linear drain?
Yes, you can buy a panel for this drain or a decorative panel.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel remains firmly in place in the drain.
