Size
56,00 €
incl. VAT / szt.
Lowest price in 30 days before discount: / szt.
Regular price: / szt.
of
You can also buy using:
90 days for easy returns
This product is not available in a stationary store
Safe shopping
Technical data
Brand
Balneo
Series
EAN
5907699005505
Series
SKU
S-D 500
Producer code
5907699005505
Series
Series
SIDE-DRAIN
Drain type
Linear
Length
50 cm
Throughput
49 l/min.
Minimum installation depth
85 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Possibility to paste a plate
Yes
Swivel siphon
Yes
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Gutter and grate thickness
1,2 cm
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg
Dimensions
50 x 11 x 10,5 cm
Size
50 cm

SIDE-DRAIN LINEAR DRAIN - INNOVATIVE DESIGN

and Functionality

The Side-Drain series is an innovative solution in the world of bathroom fittings, combining modern design with reliable functionality. Made from high-quality AISI 304 stainless steel, these drains stand out for their exceptional durability and aesthetics. They are the only drains on the market with a side siphon, designed for maximum user comfort and ease of installation. The Side-Drain series is the perfect choice for anyone seeking durable and contemporary solutions for their bathroom.

SIDE-DRAIN INOX - MODERNITY AND DURABILITY

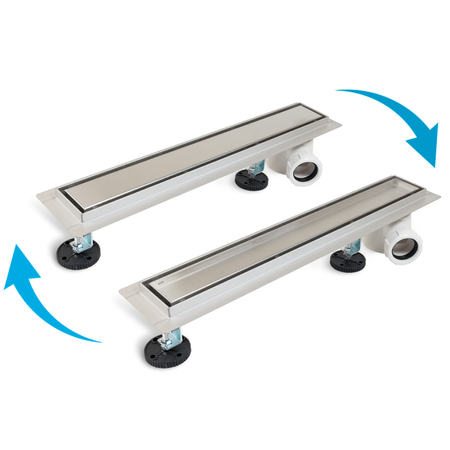

The Side-Drain Inox linear drain combines solid construction and functionality, making it ideal for modern bathrooms. Thanks to its reversible panel, users can choose between a smooth surface or embedding a tile, allowing full customization to suit any interior design. This innovative solution not only enhances aesthetics but also ensures durability and resistance to everyday use. The drain is equipped with a swivel siphon, enabling precise alignment of the wastewater outlet toward the sewage system, which significantly simplifies installation—even in complex piping layouts.

With a compact installation height of just 85 mm, Side-Drain Inox works perfectly in both minimalist and more elaborate bathroom projects, offering installation flexibility. The package includes all necessary mounting accessories, such as a sealing mat, spacers, and a hook for easy panel removal. Refined details—like perfectly fitted spacers and stops that prevent panel shifting—make the drain extremely user-friendly.

A flow rate of 49 l/min guarantees reliable and fast water drainage, even during heavy use. Side-Drain Inox also offers easy maintenance: the basket strainer made of durable ABS plastic allows quick cleaning, reducing the need for frequent servicing. It’s the ideal solution for those looking for dependable and stylish bathroom products.

Odpływ
Odpływ side drain

INNOVATION THAT MAKES A DIFFERENCE -
SIDE-DRAIN BY BALNEO.


SIDE OUTFLOW - A BREAKTHROUGH IN INSTALLATION

The unique feature of the Side-Drain series is its side siphon outlet. This innovative solution allows for far greater flexibility in positioning the drain, making it perfect for unconventional piping layouts. Customers will appreciate the ease of installation and the ability to precisely adapt the drain to any bathroom design.


UNRIVALED DURABILITY AND AESTHETICS

Constructed from AISI 304 stainless steel with robot‐welded seams, this product guarantees exceptional quality. The 1.2 mm wall thickness is 20% greater than standard drains, ensuring long-lasting durability and damage resistance. The reversible panel offers full customization, while the precise spacers prevent any movement, enhancing user convenience.

EASY MAINTENANCE

A flow rate of 49 l/min and an easily accessible basket strainer minimize cleaning frequency. The set also includes a hook for panel removal, making upkeep quick and hassle-free. With these features, Side-Drain Inox meets the expectations of even the most demanding users.

Odpływ liniowy 360 drain

ELEGANCE IN EVERY DETAIL

With its modern design and customizable panel, Side-Drain Inox becomes not only a functional component but also a decorative accent in any bathroom. It’s a choice that marries aesthetics with reliability.

personalizacja i styl odpływu liniowego side drain
TECHNICAL DATA
Marka

BRAND: Balneo

Seria

SERIES: SIDE-DRAIN

Kolor

COLOR: Chrome

Rozmiar

SIZE: 50 cm

Wymiary

DIMENSIONS: 50 x 11 x 10.5 cm

Waga

WEIGHT: 3 kg

Materiał

MATERIAL: AISI 304 stainless steel

Wykończenie

FINISH: Stainless steel

Rodzaj

DRAIN TYPE: Linear

Przepustowość

FLOW RATE: 49 l/min

Wzór

DESIGN: Smooth

Średnica odpływu

DRAIN DIAMETER: 40 mm

Szerokość maskownicy odpływu

COVER WIDTH: 6.3 cm

Rynna i ruszt grubości

CHANNEL & GRATE THICKNESS: 1.2 cm

Kołnierz okalający

SURROUNDING FLANGE: 2 cm

Obrotowy syfon

SWIVEL SIPHON: Yes

Możliwość wklejenia płytki

TILE INSERT OPTION: Yes

Minimalna głębokość montażu

MINIMUM INSTALLATION DEPTH: 85 mm

W zestawie

INCLUDED: body, reversible panel, siphon, strainer, sealing mat, adjustable feet, 40/50 reducer, panel removal hook

EAN

EAN: 5907699005505

SKU

SKU: S-D 500

Gwarancja

WARRANTY: 10 years


YOUR SAFETY

is important to us


10-YEAR WARRANTY


TECHNICAL SUPPORT


PZH CERTIFICATE


90-DAY RETURNS

odpływ side drain

ORDER THE SIDE-DRAIN INOX TODAY
AND DISCOVER A NEW LEVEL OF QUALITY IN YOUR BATHROOM!

FAQ
What is the drain made of?

The drain is made of stainless steel.

What is the water flow capacity of the drain?

The water flow rate is 49 l/min.

Do the drains have a reversible panel?

Yes, the drain has a reversible panel where you can install a tile.

What is the width of the panel?

The panel width is 5 cm.

What is the minimum installation depth for this drain?

85 mm

Are the drain's feet adjustable?

Yes, the drain's feet are adjustable.

Is it possible to install the drain in vinyl panels?

It is not dedicated to that form of installation.

Does the drain have a dry siphon?

No. The drain is equipped with a wet siphon.

Can the siphon be replaced with a dry one?

No.

Does the drain include the complete installation kit?

Yes. Our drains include everything for installation.

What is the metal thickness?

The thickness is 1 mm.

How do you remove the panel from the linear drain?

The set includes a key that allows you to lift the panel from the linear drain.

Can you purchase an additional panel for the linear drain?

Yes, you can buy a panel for this drain or a decorative panel.

Is the panel fixed in the linear drain?

Yes, thanks to the included spacers, the panel stays firmly in the drain.
