Odpływ liniowy podłogowy Balneo Side Drain 60 cm dwustronny z panelem ze stali nierdzewnej szczotkowanej z bocznym syfonem
Odpływ liniowy podłogowy Balneo Side Drain 60 cm dwustronny z panelem ze stali nierdzewnej szczotkowanej z bocznym syfonem
Technical data
Brand
Balneo
EAN
5907699005512
SKU
S-D 600
Producer code
5907699005512
Series
SIDE-DRAIN
Drain type
Linear
Length
60 cm
Throughput
49 l/min.
Minimum installation depth
85 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Possibility to paste a plate
Yes
Swivel siphon
Yes
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Gutter and grate thickness
1,2 cm
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg
Dimensions
60 x 11 x 10,5 cm
Size
60 cm
LINEAR DRAIN SIDE-DRAIN - INNOVATIVE DESIGN
and Functionality
The Side-Drain series of linear drains is an innovative solution in the world of bathroom fittings, combining modern design with reliable functionality. Made from high-quality AISI 304 stainless steel, these drains stand out for their exceptional durability and aesthetics. They are the only drains on the market with a side siphon, engineered for maximum user comfort and ease of installation. The Side-Drain series is a perfect choice for those seeking durable and contemporary solutions for their bathroom.
SIDE-DRAIN INOX - MODERNITY AND DURABILITY

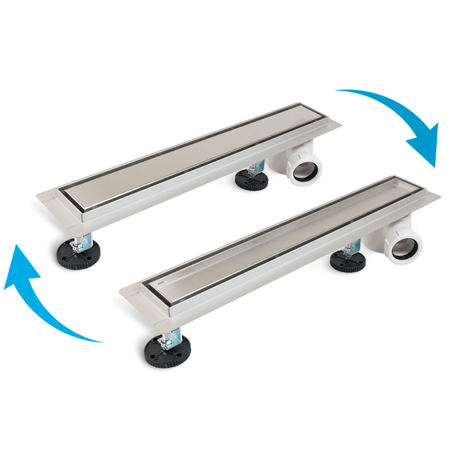

The linear drain Side-Drain Inox combines robust construction with functionality, making it ideal for modern bathrooms. Thanks to the double-sided panel, users can choose between a smooth surface and inlaying a tile, allowing full personalization and adaptation to any interior design. This innovative solution not only enhances aesthetics but also ensures durability and resistance to daily use. The drain is equipped with a swivel siphon that enables precise orientation of the water outlet toward the sewage system, significantly simplifying installation even in complex plumbing layouts.
With a compact installation height of only 85 mm, Side-Drain Inox is suitable for both minimalist and more elaborate bathroom projects, offering installation flexibility. The set includes all necessary mounting accessories, such as a sealing mat, spacers, and a hook for easy panel removal. Refined details like perfectly fitted spacers and limiters to prevent panel shifting make the drain extremely convenient to use.
A flow rate of 49 l/min guarantees reliable and fast water drainage even during intensive use. Side-Drain Inox is also easy to maintain – the basket-style sediment trap made of durable ABS plastic allows quick cleaning, reducing service frequency. It is the ideal solution for those looking for reliable and aesthetically pleasing bathroom products.
SIDE OUTLET - A BREAKTHROUGH IN INSTALLATION
The unique feature of the Side-Drain series is the side siphon outlet. This innovative solution allows for much greater flexibility in drain placement, making it ideal for unconventional plumbing layouts. Clients will appreciate the ease of installation and the ability to precisely adapt the drain to their specific bathroom design.
UNRIVALLED DURABILITY AND AESTHETICS
Manufactured from AISI 304 stainless steel with robotic welding, it ensures top product quality. The 1.2 mm wall thickness is 20% greater than that of standard drains, guaranteeing durability and resistance to damage. The double-sided panel enables full personalization, and the precisely engineered spacers prevent panel shifting, enhancing user convenience.
EASY MAINTENANCE
With a flow rate of 49 l/min and an easily accessible basket-style trap, cleaning frequency is minimized. The set also includes a hook for panel removal, making maintenance quick and hassle-free. Thanks to these features, the Side-Drain Inox drain meets the expectations of even the most demanding users.
ELEGANCE IN EVERY DETAIL
Thanks to its modern design and panel customization options, the Side-Drain Inox drain becomes not only a functional element but also a decorative accent in any bathroom. It is a choice that blends aesthetics with reliability.
TECHNICAL DATA
BRAND: Balneo
SERIES: SIDE-DRAIN
COLOR: Chrome
LENGTH: 60 cm
DIMENSIONS: 60 x 11 x 10.5 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 49 l/min
PATTERN: Smooth
DRAIN DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
TROUGH AND GRATE THICKNESS: 1.2 cm
SURROUNDING COLLAR: 2 cm
SWIVEL SIPHON: Yes
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 85 mm
INCLUDED: body, double-sided panel, siphon, trap, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5907699005512
SKU: S-D 600
WARRANTY: 10 years
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.
What is the water flow rate in the drain?
The water flow rate is 49 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel where a tile can be installed.
What is the panel width?
The panel width is 5 cm.
What is the minimum installation depth for this drain?
85 mm
Are the drain's feet adjustable?
Yes, the drain’s feet are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not dedicated for that installation type.
Does the drain have a dry trap?
No. The drain is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain come with a complete installation set?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
1 mm.
How do you remove the panel from the linear drain?
The set includes a key that allows you to lift the panel from the linear drain.
Can a panel for the linear drain be purchased separately?
Yes, you can buy a panel for this drain or a decorative panel.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays stationary in the drain.
