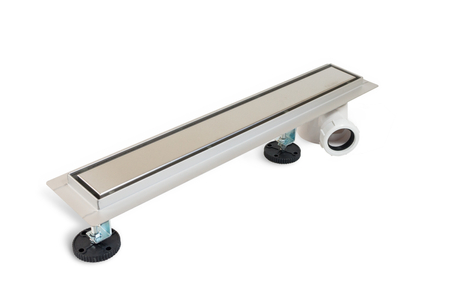

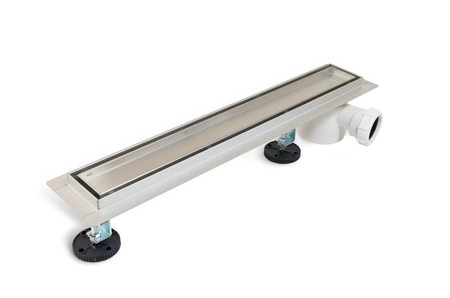

Odpływ liniowy podłogowy Balneo Side Drain 70 cm dwustronny z panelem ze stali nierdzewnej szczotkowanej z bocznym syfonem
Odpływ liniowy podłogowy Balneo Side Drain 70 cm dwustronny z panelem ze stali nierdzewnej szczotkowanej z bocznym syfonem
Technical data
Brand
Balneo
EAN
5907699005529
SKU
S-D 700
Producer code
5907699005529
Series
SIDE-DRAIN
Drain type
Linear
Length
70 cm
Throughput
49 l/min.
Minimum installation depth
85 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Possibility to paste a plate
Yes
Swivel siphon
Yes
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Gutter and grate thickness
1,2 cm
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg
Dimensions
70 x 11 x 10,5 cm
Size
70 cm
SIDE-DRAIN LINEAR DRAIN – INNOVATIVE DESIGN
Design & Functionality
The Side-Drain series offers an innovative solution in bathroom fittings, combining modern design with reliable functionality. Made from high-quality AISI 304 stainless steel, these drains stand out for exceptional durability and aesthetics. They are the only floor channels on the market with a side outlet trap, engineered for maximum user comfort and ease of installation. The Side-Drain series is the perfect choice for anyone seeking durable, contemporary bathroom solutions.
SIDE-DRAIN INOX – MODERNITY & DURABILITY

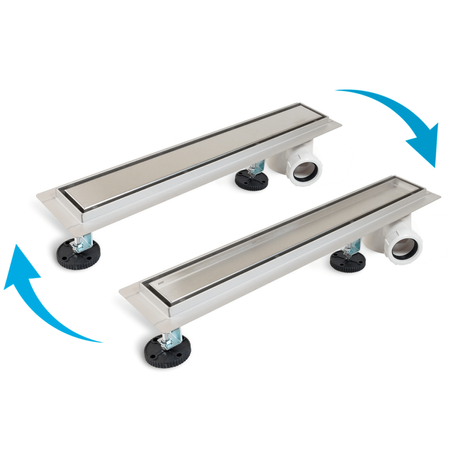

The Side-Drain Inox linear drain combines robust construction with functionality, ideal for modern bathrooms. Its reversible panel allows you to choose between a sleek metal finish or embedding a tile for full customization. This innovative feature enhances aesthetics while ensuring durability against daily use. Equipped with a rotating trap, it enables precise alignment of the outlet towards the sewage line, simplifying installation even in complex layouts.
With a compact installation height of just 85 mm, Side-Drain Inox is suited to minimalist or elaborate bathroom designs, offering flexible installation. The set includes all necessary mounting accessories—sealing mat, spacers, adjustable feet, reducer, and a hook for easy panel removal. Precision-engineered spacers and panel stops guarantee the panel stays perfectly in place, maximizing user comfort.
A flow rate of 49 l/min ensures fast, reliable drainage even under heavy use. Maintenance is a breeze thanks to the ABS plastic basket trap, which you can clean quickly, reducing service frequency. Perfect for anyone seeking dependable, stylish bathroom fittings.
SIDE OUTLET – A BREAKTHROUGH IN INSTALLATION
The unique feature of the Side-Drain series is its side-mounted trap outlet. This innovative design allows far greater flexibility in positioning, making it perfect for unconventional plumbing layouts. Installers will appreciate the ease and precision it brings to any bathroom project.
UNMATCHED DURABILITY & AESTHETICS
Crafted from AISI 304 stainless steel and precision-welded by robotic systems, it guarantees outstanding quality. The 1.2 mm wall thickness is 20% greater than standard drains, offering superior resistance to wear and damage. The reversible panel allows full personalization, while engineered spacers ensure the cover stays securely in place, enhancing everyday comfort.
EASY TO KEEP CLEAN
A flow rate of 49 l/min and an easily accessible basket trap minimize cleaning frequency. The included hook makes panel removal effortless, so maintenance is quick and hassle-free. The Side-Drain Inox exceeds even the highest expectations.
ELEGANCE IN EVERY DETAIL
With its modern lines and customizable panel, the Side-Drain Inox drain is not just functional but also a decorative accent in any bathroom. It’s the choice that blends style with reliability.

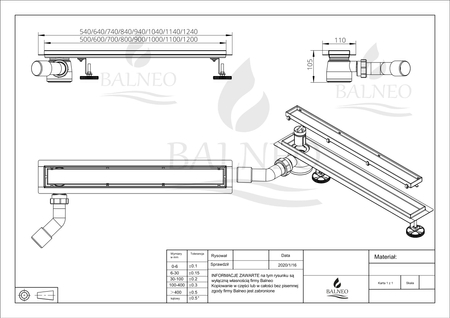

TECHNICAL DATA
BRAND: Balneo
SERIES: SIDE-DRAIN
COLOR: Chrome
SIZE: 70 cm
DIMENSIONS: 70 × 11 × 10.5 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 49 l/min
PATTERN: Smooth
OUTLET DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
CHANNEL & GRATE THICKNESS: 1.2 cm
SURROUNDING FLANGE: 2 cm
ROTATING TRAP: Yes
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 85 mm
INCLUDES: body, reversible panel, trap, sediment basket, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5907699005529
SKU: S-D 700
WARRANTY: 10 years
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.
What is the water flow capacity of the drain?
The water flow capacity is 49 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel in which you can install a tile.
What is the width of the panel?
The width of the panel is 5 cm.
What is the minimum installation depth for this drain?
85 mm
Are the drain feet adjustable?
Yes, the drain feet are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not designed for this type of installation.
Does the drain have a dry trap?
No. The drain is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain come with a full installation kit?
Yes. Our drains include everything for installation.
What is the thickness of the metal?
Thickness of 1 mm.
How do you remove the panel from the linear drain?
A key is included that allows you to lift the panel from the linear drain.
Can you purchase an additional panel for the linear drain?
Yes, you can purchase a panel for this drain or a decorative panel.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel remains firmly in the drain.
