Odpływ liniowy podłogowy Balneo Side Drain 80 cm dwustronny z panelem ze stali nierdzewnej szczotkowanej z bocznym syfonem
Odpływ liniowy podłogowy Balneo Side Drain 80 cm dwustronny z panelem ze stali nierdzewnej szczotkowanej z bocznym syfonem
Technical data
Brand
Balneo
EAN
5907699005536
SKU
S-D 800
Producer code
5907699005536
Series
SIDE-DRAIN
Drain type
Linear
Length
80 cm
Throughput
49 l/min.
Minimum installation depth
85 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Possibility to paste a plate
Yes
Swivel siphon
Yes
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Gutter and grate thickness
1,2 cm
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg
Dimensions
80 x 11 x 10,5 cm
Size
80 cm
SIDE-DRAIN LINEAR DRAIN – INNOVATIVE DESIGN
and Functionality
The Side-Drain series is an innovative solution in the world of bathroom fittings, combining modern design with reliable functionality. Made from high-quality AISI 304 stainless steel, these drains stand out for their exceptional durability and aesthetics. They are the only drains on the market with a side siphon, designed for maximum user comfort and ease of installation. The Side-Drain series is the perfect choice for anyone seeking durable and contemporary solutions for their bathroom.
SIDE-DRAIN INOX – MODERNITY AND DURABILITY

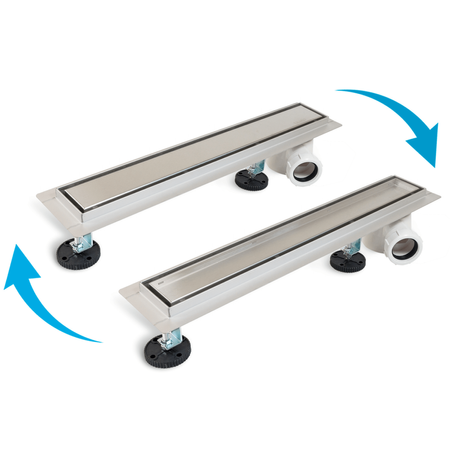

The Side-Drain Inox linear drain combines robust construction with functionality, making it ideal for modern bathrooms. Thanks to its reversible panel, users can choose between a smooth surface or tile insert, allowing full personalization to any interior design. This innovative solution enhances aesthetics while ensuring durability and resistance to everyday use. The drain features a rotating siphon for precise alignment of the outlet toward the waste connection, greatly simplifying installation even in complex plumbing layouts.
With a compact installation height of only 85 mm, Side-Drain Inox performs equally well in minimalist and more elaborate bathroom projects, offering installation flexibility. The set includes all necessary mounting accessories, such as a sealing mat, spacers, and a panel removal hook. Refined details—like perfectly fitted spacers and panel–stop limiters—make the drain extremely user-friendly.
A flow rate of 49 l/min guarantees fast and reliable water removal even under heavy use. Side-Drain Inox is also easy to maintain—a durable ABS plastic basket trap allows quick cleaning, reducing servicing frequency. It’s the ideal solution for those seeking reliable and stylish bathroom products.
SIDE OUTLET – A BREAKTHROUGH IN INSTALLATION
The one-of-a-kind feature of the Side-Drain series is the side siphon outlet. This innovative solution allows for much more flexible drain positioning, making it ideal for unconventional plumbing layouts. Customers will appreciate the ease of installation and the ability to precisely adapt the drain to any bathroom design.
UNRIVALED DURABILITY AND AESTHETICS
Constructed from AISI 304 stainless steel and robot-welded to ensure top quality. The 1.2 mm wall thickness is 20% greater than standard drains, guaranteeing durability and resistance to damage. The reversible panel allows full customization, and the refined spacers prevent panel movement, enhancing user convenience.
EASY CLEANING
With a flow rate of 49 l/min and an easily accessible basket trap, cleaning frequency is minimized. The set also includes a panel removal hook, making maintenance quick and hassle-free. Thanks to these features, Side-Drain Inox meets the expectations of even the most demanding users.
ELEGANCE IN EVERY DETAIL
With its modern design and panel customization options, the Side-Drain Inox drain becomes not only a functional element but also a decorative accent in any bathroom. It’s the choice that combines aesthetics with reliability.
TECHNICAL DATA
BRAND: Balneo
SERIES: SIDE-DRAIN
COLOR: Chrome
SIZE: 80 cm

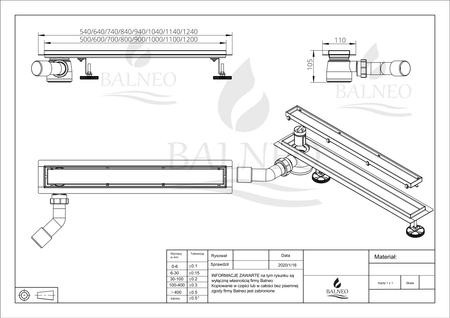

DIMENSIONS: 80 × 11 × 10.5 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 49 l/min
PATTERN: Smooth
OUTLET DIAMETER: 40 mm
COVER WIDTH: 6.3 cm
TROUGH AND GRATE THICKNESS: 1.2 cm
SURROUND FLANGE: 2 cm
ROTATING SIPHON: Yes
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 85 mm
INCLUDES: body, reversible panel, siphon, filter basket, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5907699005536
SKU: S-D 800
WARRANTY: 10 years
YOUR SAFETY
matters to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.
What is the water flow rate of the drain?
The water flow rate is 49 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel in which a tile can be installed.
What is the width of the panel?
The panel width is 5 cm.
What is the minimum installation depth for this drain?
85 mm
Are the drain’s feet adjustable?
Yes, the drain’s feet are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not suitable for that type of installation.
Does the drain have a dry siphon?
No. The drain is equipped with a wet siphon.
Can the siphon be replaced with a dry one?
No.
Does the drain come with a full installation set?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
The thickness is 1 mm.
How do you remove the panel from the linear drain?
The set includes a key that allows you to lift the panel from the linear drain.
Can you purchase an additional panel for the linear drain?
Yes, you can purchase a panel for this drain or a decorative panel.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays firmly in the drain.
