Odpływ liniowy podłogowy Balneo Side Drain 90 cm dwustronny z panelem ze stali nierdzewnej szczotkowanej z bocznym syfonem
Odpływ liniowy podłogowy Balneo Side Drain 90 cm dwustronny z panelem ze stali nierdzewnej szczotkowanej z bocznym syfonem
Technical data
Brand
Balneo
EAN
5907699005543
SKU
S-D 900
Producer code
5907699005543
Series
SIDE-DRAIN
Drain type
Linear
Length
90 cm
Throughput
49 l/min.
Minimum installation depth
85 mm
Drain diameter
40 mm
Width of drain cover
6,3 cm
Possibility to paste a plate
Yes
Swivel siphon
Yes
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Gutter and grate thickness
1,2 cm
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg
Dimensions
90 x 11 x 10,5 cm
Size
90 cm
SIDE-DRAIN LINEAR DRAIN - INNOVATIVE DESIGN
and Functionality
The Side-Drain series of drains is an innovative solution in the world of bathroom fittings, combining modern design with reliable functionality. Made from high-quality AISI 304 stainless steel, these drains stand out for their exceptional durability and aesthetics. They are the only side-siphon drains on the market, designed for maximum user comfort and ease of installation. The Side-Drain series is the perfect choice for those seeking durable and contemporary solutions for their bathroom.
SIDE-DRAIN INOX - MODERNITY AND DURABILITY

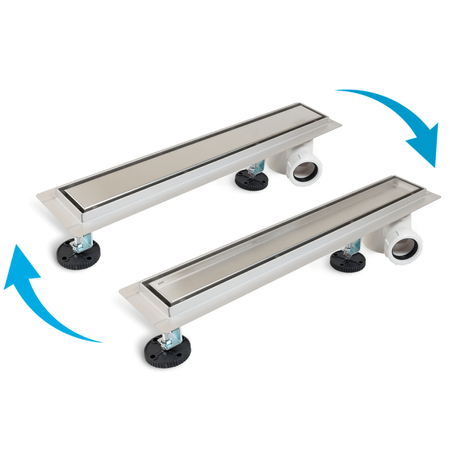

The linear drain Side-Drain Inox is a combination of robust craftsmanship and functionality, perfectly suited for modern bathrooms. Thanks to its two-sided panel, users can choose between a smooth surface or inserting a tile, allowing full customization to any interior design. This innovative solution not only enhances aesthetics but also ensures durability and resistance to daily use. The drain is equipped with a swivel siphon, which allows precise alignment of the water outlet toward the sewage system, significantly simplifying installation even in more complex plumbing layouts.
With a compact installation height of only 85 mm, Side-Drain Inox works equally well in minimalist and more elaborate bathroom designs, offering flexible installation options. The set includes all necessary mounting accessories, such as a sealing mat, spacers, and a hook for easy panel removal. Refined details, like perfectly matched spacers and stoppers preventing panel movement, make the drain extremely user-friendly.
A flow rate of 49 l/min guarantees reliable and fast water drainage, even during intensive use. Side-Drain Inox also offers easy maintenance – the basket filter made of durable ABS plastic allows quick cleaning, reducing service frequency. It is an ideal solution for those seeking reliable and aesthetically pleasing bathroom products.
SIDE OUTLET - A BREAKTHROUGH IN INSTALLATION
The unique feature of the Side-Drain series is the side siphon outlet. This innovative solution allows for much more flexible drain positioning, making it ideal for non-standard plumbing layouts. Customers will appreciate the ease of installation and the ability to precisely adapt the drain to a specific bathroom design.
UNRIVALLED DURABILITY AND AESTHETICS
Constructed from AISI 304 stainless steel and welded by robotic welding machines to ensure excellent product quality. The wall thickness of 1.2 mm is 20% greater than standard drains, guaranteeing durability and resistance to damage. The two-sided panel allows full customization, and the refined spacers prevent panel movement, enhancing user convenience.
EASY MAINTENANCE
A flow rate of 49 l/min and an easily accessible basket filter minimize cleaning frequency. The set also includes a hook for panel removal, making cleaning quick and hassle-free. Thanks to this functionality, the Side-Drain Inox drain meets the expectations of even the most demanding users.
ELEGANCE IN EVERY DETAIL
With its modern design and panel customization options, the Side-Drain Inox drain becomes not only a functional element but also a decorative accent in any bathroom. It is a choice that combines aesthetics with reliability.
TECHNICAL DATA
BRAND: Balneo
SERIES: SIDE-DRAIN
COLOR: Chrome
SIZE: 90 cm
DIMENSIONS: 90 x 11 x 10.5 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 49 l/min
PATTERN: Smooth
DRAIN DIAMETER: 40 mm
DRAIN COVER WIDTH: 6.3 cm
CHANNEL AND GRID THICKNESS: 1.2 cm
SURROUNDING FLANGE: 2 cm
SWIVEL SIPHON: Yes
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 85 mm
INCLUDED: body, two-sided panel, siphon, filter, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5907699005543
SKU: S-D 900
WARRANTY: 10 years
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURN
FAQ
What is the drain made of?
The drain is made of stainless steel.
What is the water flow rate?
The flow rate is 49 l/min.
Do the drains feature a reversible panel?
Yes, the drain has a reversible panel where you can install a tile.
What is the panel width?
The panel width is 5 cm.
What is the minimum installation depth for this drain?
85 mm
Are the drain feet adjustable?
Yes, the drain feet can be adjusted.
Is it possible to install the drain in vinyl panels?
This drain is not dedicated for this type of installation.
Does the drain have a dry trap?
No. The drain is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain come with a complete installation kit?
Yes. Our drains come with everything needed for installation.
What is the metal thickness?
The thickness is 1 mm.
How do you remove the panel from the linear drain?
The set includes a key that allows you to lift the panel from the linear drain.
Can an additional panel be purchased for the linear drain?
Yes, you can buy a panel for this drain or a decorative panel.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays firmly in place in the drain.
