Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 100 cm czarny dwustronny
Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 100 cm czarny dwustronny
Technical data
Brand
Balneo
EAN
5905591096300
SKU
A0301020102-5
Producer code
5905591096300
Series
W-DRAIN NEXT
Drain type
Linear
Length
100 cm
Throughput
55 l/min.
Minimum installation depth
66 mm
Drain diameter
40 mm
Width of drain cover
4,4 cm
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Swivel siphon
No
Finishing
Teflon coating
Siphon included
Yes
Contents of the kit

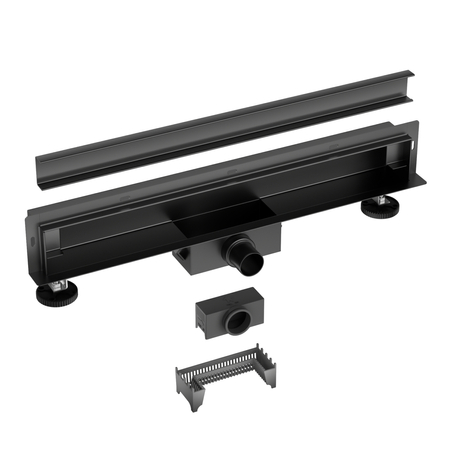

Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 304 stainless steel
Colour
Black
Weight
3,8 kg
Dimensions
100 x 4,4 x 6,6 cm
Size
100 cm
W-DRAIN NEXT: WALL-MOUNTED LINEAR DRAINS
Next Generation
The W-Drain Next series is the perfect solution for modern bathrooms, combining aesthetics, functionality, and durability. The drains are made of AISI 304 stainless steel, ensuring corrosion resistance and high strength. They stand out with a wide range of colors, including inox, black, and gold, making them easy to match to any interior. The reversible decorative panel allows for personalization, and the advanced design eliminates the need for spacer inserts.
W-DRAIN NEXT BLACK – THE BLACK OF ELEGANCE AND DURABILITY
The W-Drain Next Black model is an exceptional wall-mounted drain with a matte finish coated with a durable Teflon layer. This not only gives the drain a stylish look but also makes it resistant to aggressive detergents and cleaning agents. The reversible panel offers the option of a smooth surface or tile insertion, allowing adaptation to various bathroom styles.

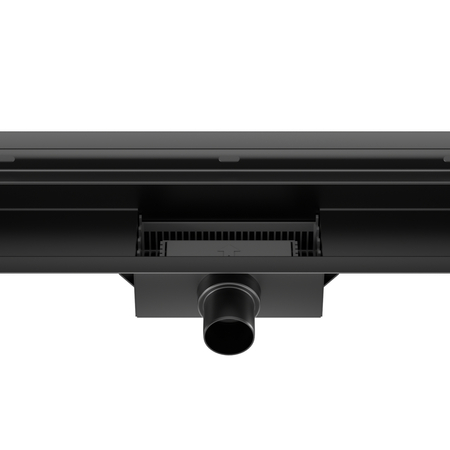

With a flow rate of 55 l/min and a wet siphon with a basket trap, it guarantees reliability even under intensive use. Adjustable feet and easy installation make the W-Drain Next Black both a practical and aesthetic choice. The product is designed for maximum user convenience, and its advanced construction ensures years of durability.
MATTE FINISH FOR PERFECT AESTHETICS
The black finish of the W-Drain Next Black drain is a synonym for elegance and modernity. The Teflon coating not only gives the product an aesthetic look but also enhances its resistance to abrasion and chemical agents. As a result, the drain retains its quality for years, perfectly blending with other bathroom elements.
EASE OF INSTALLATION AND USE
Adjustable feet and no need for spacer inserts make installing the W-Drain Next Black quick and simple. The basket-style trap allows for easy cleaning, minimizing the need for frequent maintenance. It’s a practical solution for those who value user convenience.
DURABILITY AND RELIABILITY FOR YEARS
Constructed from AISI 304 stainless steel, with a 10-year warranty on the body and a well-thought-out design, the W-Drain Next Black is an investment for years to come. The enlarged siphon chamber and high flow rate ensure reliability even under heavy load.
TECHNICAL DATA
BRAND: Balneo
SERIES: W-DRAIN NEXT
COLOR: Black
SIZE: 100 cm
DIMENSIONS: 100 × 4.4 × 6.6 cm
WEIGHT: 3.8 kg
MATERIAL: AISI 304 stainless steel
FINISH: Teflon coating
DRAIN TYPE: Linear
FLOW RATE: 55 l/min
OUTLET DIAMETER: 40 mm
COVER WIDTH: 4.4 cm
SURROUNDING FLANGE: 2 cm
SWIVEL SIPHON: No
TILE INSERTION CAPABILITY: Yes
MINIMUM INSTALLATION DEPTH: 66 mm
INCLUDED: body, reversible panel, siphon, trap, sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5905591096300
SKU: A0301020102-5
WARRANTY: 10 years on the body, 2 years on the finish
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.
Is the black drain matte or glossy?
The W-Drain Next Black drain is matte. It is coated with Teflon. The product color matches our other ranges.
What is the water flow rate of the drain?
The water flow rate is 55 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel into which a tile can be inserted.
What is the panel width?
The panel width is 4.4 cm.
What is the minimum installation depth for this drain?
66 mm.
Are the drain’s feet adjustable?
Yes, the drain’s feet are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not dedicated to that type of installation.
Does the drain have a dry siphon?
No. The drain is equipped with a wet siphon.
Can the siphon be replaced with a dry one?
No.
Does the drain come with a full installation kit?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
1 mm.
How do you remove the panel from the linear drain?
A key is included in the set, allowing you to lift the panel from the linear drain.
Can a panel be purchased separately for the linear drain?
Yes, the panel can be purchased separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays securely in the drain.
