Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 100 cm złoty dwustronny
Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 100 cm złoty dwustronny
Technical data
Brand
Balneo
EAN
5905591096256
SKU
A0301030102-5
Producer code
5905591096256
Series
W-DRAIN NEXT
Drain type
Linear
Length
100 cm
Throughput
55 l/min.
Minimum installation depth
66 mm
Drain diameter
40 mm
Width of drain cover
4,4 cm
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Swivel siphon
No
Finishing
Coating PVD
Siphon included
Yes

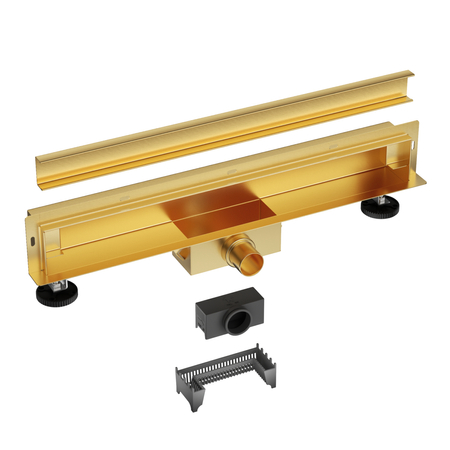

Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 304 stainless steel
Colour
Gold
Weight
3,8 kg

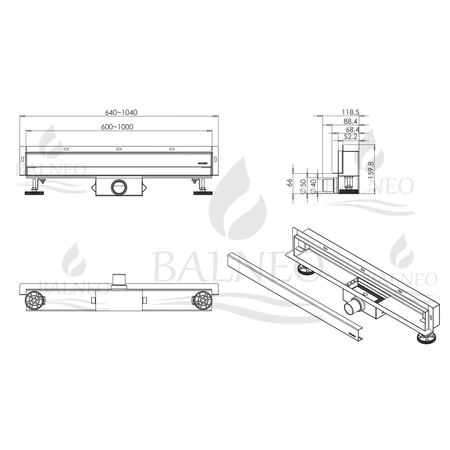

Dimensions
100 x 4,4 x 6,6 cm
Size
100 cm
W-DRAIN NEXT: STYLISH DRAINS
wall-mounted linear
The W-Drain Next series is a modern solution for bathrooms that combines functionality, durability, and elegance. Made of high-quality AISI 304 stainless steel, these drains are corrosion-resistant and available in a wide range of colors. The reversible panel offers a choice between a smooth surface and the option to inset a tile, providing complete design freedom. The drain’s construction eliminates the need for spacer inserts, ensuring easy installation and excellent stability.
W-DRAIN NEXT GOLD - LUXURY IN A GOLD FINISH
The W-Drain Next Gold model is designed for those who appreciate a luxurious finish and high functionality. The drain stands out with an elegant gold PVD coating that is durable, damage-resistant, and perfectly complements glamour, classic, and modern interiors. The reversible panel allows you to insert a tile or use the smooth surface, making this model highly versatile.
With a flow rate of 55 l/min and a basket-type strainer, the drain ensures user convenience and easy maintenance. Adjustable feet and precise panel fit mean installation is quick and straightforward. W-Drain Next Gold is an investment in aesthetics and durability for years to come.
PURE ELEGANCE FOR EXCEPTIONAL INTERIORS
The W-Drain Next Gold drain has been designed with the most demanding users in mind. The PVD coating not only gives the product a luxurious appearance but also enhances its resistance to corrosion and chemicals. It is the ideal solution for those seeking refined style and durability.
EASY INSTALLATION AND USE
Adjustable feet, no need for spacer inserts, and a basket strainer ensure quick and convenient installation and maintenance. The drain’s design guarantees stability and precise fit, while the wet siphon provides effective water drainage.
BUILT TO LAST
High-quality AISI 304 stainless steel and the drain’s well-thought-out design ensure reliability for many years. The product comes with a 10-year warranty on the body and a 2-year warranty on the PVD coating, which speaks to its exceptional quality.
TECHNICAL DATA
BRAND: Balneo
SERIES: W-DRAIN NEXT
COLOR: Gold
LENGTH: 100 cm
DIMENSIONS: 100 × 4.4 × 6.6 cm
WEIGHT: 3.8 kg
MATERIAL: AISI 304 stainless steel
FINISH: PVD
DRAIN TYPE: Linear
FLOW RATE: 55 l/min.
OUTLET DIAMETER: 40 mm
COVER WIDTH: 4.4 cm
SURROUNDING FLANGE: 2 cm
ROTARY SIPHON: No
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 66 mm
INCLUDED: body, reversible panel, siphon, strainer,
sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5905591096256
SKU: A0301030102-5
WARRANTY: 10 years, 2 years on the coating
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURN
FAQ
What material is the drain made of?
The drain is made of stainless steel.
What is the water flow rate of the drain?
The water flow rate is 55 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel where you can install a tile.
What is the panel width?
The panel width is 4.4 cm.
What is the minimum installation depth for this drain?
66 mm.
Are the drain feet adjustable?
Yes, the drain feet can be adjusted.
Is it possible to install the drain in vinyl panels?
This drain is not dedicated to this type of installation.
Does the drain have a dry siphon?
No. The drain is equipped with a wet siphon.
Is it possible to replace the siphon with a dry one?
No.
Does the drain come with a full installation kit?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
The thickness is 1 mm.
How do you remove the panel from the linear drain?
The kit includes a key that allows you to lift the panel from the linear drain.
Can you purchase an extra panel for the linear drain?
Yes, you can purchase the panel separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays firmly in the drain.
