Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 70 cm złoty dwustronny
Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 70 cm złoty dwustronny
Technical data
Brand
Balneo
EAN
5905591096225
SKU
A0301030102-2
Producer code
5905591096225
Series
W-DRAIN NEXT
Drain type
Linear
Length
70 cm
Throughput
55 l/min.
Minimum installation depth
66 mm
Drain diameter
40 mm
Width of drain cover
4,4 cm
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Swivel siphon
No
Finishing
Coating PVD
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 304 stainless steel
Colour
Gold
Weight
3 kg
Dimensions
70 x 4,4 x 6,6 cm
Size
70 cm
W-DRAIN NEXT: STYLISH DRAINS
linear wall-mounted
The W-Drain Next series is a modern solution for bathrooms that combines functionality, durability and elegance. Made of high-quality AISI 304 stainless steel, these drains are corrosion-resistant and available in a wide range of colors. The reversible panel offers the choice of a smooth surface or tile insertion, providing complete design freedom. The drain’s construction eliminates the need for spacer inserts, ensuring easy installation and excellent stability.
W-DRAIN NEXT GOLD - LUXURY IN GOLD FINISH
The W-Drain Next Gold model is designed for those who appreciate a luxurious finish and high functionality. The drain features an elegant gold PVD coating that is durable, damage-resistant, and perfectly suited to glamour, classic, and modern interiors. The reversible panel allows for tile insertion or use of the smooth surface, making this model extremely versatile.
With a flow rate of 55 l/min and a basket trap, the drain ensures user convenience and easy maintenance. Adjustable feet and precise panel fitting make installation quick and simple. W-Drain Next Gold is an investment in aesthetics and durability for years to come.
GOLDEN ELEGANCE FOR EXCEPTIONAL INTERIORS
The W-Drain Next Gold drain has been designed with the most demanding users in mind. The PVD coating not only gives the product a luxurious appearance but also increases its resistance to corrosion and chemicals. It is the ideal solution for those seeking refined style and durability.
SIMPLE INSTALLATION AND USE
Adjustable feet, no need for spacer inserts, and a basket trap make installation and maintenance quick and convenient. The drain’s design guarantees stability and precise fitting, while the wet siphon ensures effective water drainage.
DURABILITY FOR YEARS
High-quality AISI 304 stainless steel and a thoughtful drain design ensure reliability for many years. The product comes with a 10-year warranty on the body and a 2-year warranty on the PVD coating, reflecting its exceptional quality.
TECHNICAL DATA
BRAND: Balneo
SERIES: W-DRAIN NEXT
COLOR: Gold
SIZE: 70 cm
DIMENSIONS: 70 × 4.4 × 6.6 cm
WEIGHT: 3 kg
MATERIAL: AISI 304 stainless steel
FINISH: PVD
DRAIN TYPE: Linear
FLOW RATE: 55 l/min
OUTLET DIAMETER: 40 mm
COVER WIDTH: 4.4 cm
SURROUNDING FLANGE: 2 cm
ROTATING TRAP: No
TILE INSERTION OPTION: Yes
MINIMUM INSTALLATION DEPTH: 66 mm

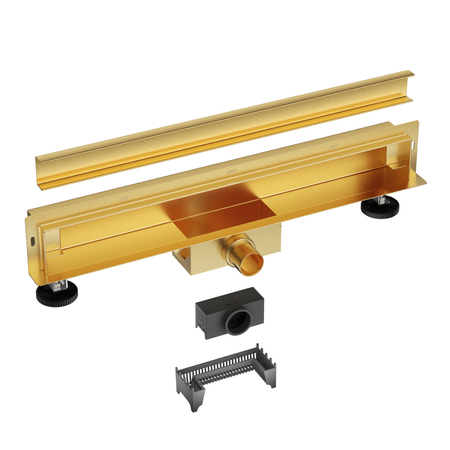

IN THE KIT: body, reversible panel, trap, basket,
sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5905591096225
SKU: A0301030102-2
WARRANTY: 10 years, 2 years on coating
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What material is the drain made of?
The drain is made of stainless steel.
What is the water flow rate of the drain?
The water flow rate is 55 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel in which a tile can be mounted.
What is the width of the panel?
The panel width is 4.4 cm.
What is the minimum installation depth for this drain?
66 mm.
Are the drain’s feet adjustable?
Yes, the drain feet are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not dedicated to that type of installation.
Does the drain have a dry siphon?
No. The drain is equipped with a wet siphon.
Can the siphon be replaced with a dry one?
No.
Does the drain come with a full installation kit?
Yes. Our drains include everything needed for installation.
What is the thickness of the metal?
The thickness is 1 mm.
How to remove the panel from the linear drain?
A key tool is included in the kit that allows lifting the panel from the linear drain.
Can you purchase a panel for the linear drain separately?
Yes, the panel can be purchased separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays firmly in the drain.
