Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 80 cm złoty dwustronny
Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 80 cm złoty dwustronny
Technical data
Brand
Balneo
EAN
5905591096232
SKU
A0301030102-3
Producer code
5905591096232
Series
W-DRAIN NEXT
Drain type
Linear
Length
80 cm
Throughput
55 l/min.
Minimum installation depth
66 mm
Drain diameter
40 mm
Width of drain cover
4,4 cm
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Swivel siphon
No
Finishing
Coating PVD
Siphon included
Yes

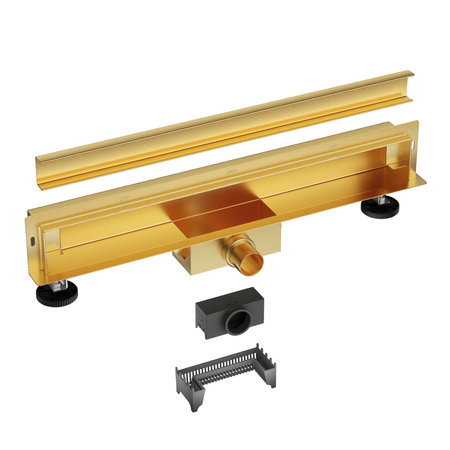

Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 304 stainless steel
Colour
Gold
Weight
3,2 kg

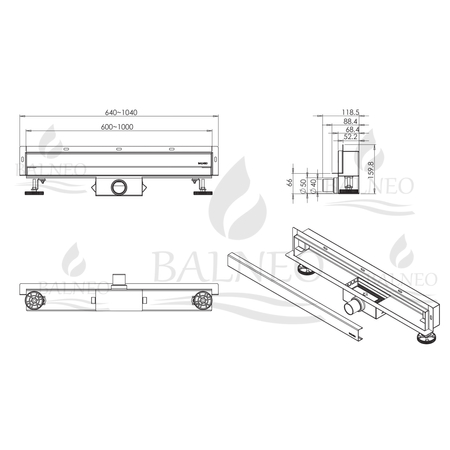

Dimensions
80 x 4,4 x 6,6 cm
Size
80 cm
W-DRAIN NEXT: STYLISH DRAINS
linear wall drains
The W-Drain Next series is a modern solution for bathrooms that combines functionality, durability, and elegance. Made of high-quality AISI 304 stainless steel, these drains are corrosion-resistant and available in a wide range of colors. The reversible panel offers a choice between a smooth surface and an option to insert a tile, giving you full design flexibility. The drain’s construction eliminates the need for spacer inserts, ensuring easy installation and excellent stability.
W-DRAIN NEXT GOLD - LUXURY IN A GOLDEN FINISH
Model W-Drain Next Gold is designed for those who appreciate luxurious finishes and high functionality. This drain features an elegant PVD gold coating that is durable, damage-resistant, and perfectly suited for glamour, classic, and modern interiors. The reversible panel allows you to insert a tile or use the smooth surface, making this model extremely versatile.
With a flow rate of 55 l/min and a basket-style sediment trap, this drain offers user convenience and easy maintenance. The adjustable legs and precise panel fit ensure quick and simple installation. W-Drain Next Gold is an investment in aesthetics and durability for years to come.
GOLDEN ELEGANCE FOR EXCEPTIONAL INTERIORS
The W-Drain Next Gold drain is designed with the most demanding users in mind. The PVD coating not only gives the product a luxurious appearance but also increases its resistance to corrosion and chemical agents. It’s the perfect solution for those seeking refined style and long-lasting durability.
EASY INSTALLATION AND USE
Adjustable legs, no need for spacer inserts, and a basket-style sediment trap make installation and maintenance quick and convenient. The drain’s construction ensures stability and precise fit, and the wet siphon provides efficient water drainage.
DURABILITY FOR YEARS
High-quality AISI 304 stainless steel and the thoughtfully designed drain structure ensure reliability for many years. The product comes with a 10-year warranty on the body and a 2-year warranty on the PVD coating, reflecting its exceptional quality.
TECHNICAL DATA
BRAND: Balneo
SERIES: W-DRAIN NEXT
COLOR: Gold
SIZE: 80 cm
DIMENSIONS: 80 × 4.4 × 6.6 cm
WEIGHT: 3.2 kg
MATERIAL: AISI 304 stainless steel
FINISH: PVD
DRAIN TYPE: Linear
FLOW RATE: 55 l/min.
DRAIN DIAMETER: 40 mm
COVER WIDTH: 4.4 cm
SURROUNDING FLANGE: 2 cm
ROTARY SIPHON: No
TILE INSERT OPTION: Yes
MINIMAL INSTALLATION DEPTH: 66 mm
INCLUDED: body, reversible panel, siphon, sediment trap,
waterproofing mat, adjustable legs, 40/50 reducer, panel removal tool
EAN: 5905591096232
SKU: A0301030102-3
WARRANTY: 10 years, 2 years on coating
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURN
FAQ
What is the drain made of?
The drain is made of stainless steel.
What is the water flow rate of the drain?
The flow rate is 55 l/min.
Do the drains have a reversible panel?
Yes, the drain features a reversible panel that allows tile insertion.
What is the panel width?
The panel width is 4.4 cm.
What is the minimum installation depth for this drain?
66 mm.
Are the drain legs adjustable?
Yes, the drain legs are adjustable.
Is it possible to install the drain in vinyl panels?
No, this drain is not intended for that type of installation.
Is there a dry siphon in the drain?
No. The drain is equipped with a wet siphon.
Can the siphon be replaced with a dry one?
No.
Does the drain include the complete installation set?
Yes. Everything needed for installation is included.
What is the thickness of the metal?
1 mm.
How do you remove the panel from the linear drain?
A key is included to lift the panel out of the linear drain.
Can the panel for the linear drain be purchased separately?
Yes, the panel can be bought separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays securely in place.
