Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 90 cm czarny dwustronny
Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 90 cm czarny dwustronny
Technical data
Brand
Balneo
EAN
5905591096294
SKU
A0301020102-4
Producer code
5905591096294
Series
W-DRAIN NEXT
Drain type
Linear
Length
90 cm
Throughput
55 l/min.
Minimum installation depth
66 mm
Drain diameter
40 mm
Width of drain cover
4,4 cm
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Swivel siphon
No
Finishing
Teflon coating
Siphon included
Yes

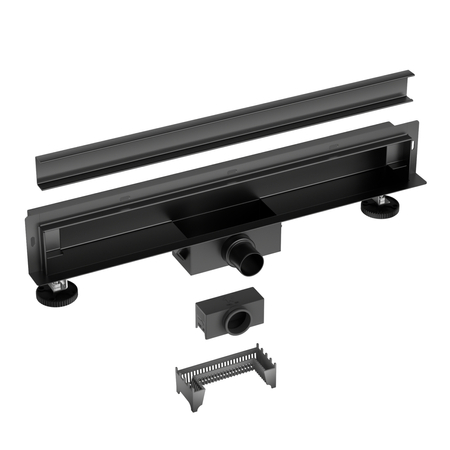

Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 304 stainless steel
Colour
Black
Weight
3,4 kg

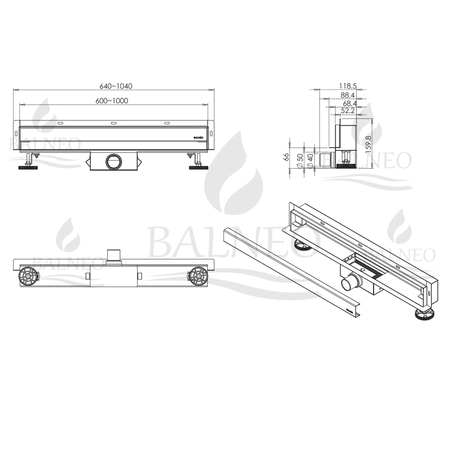

Dimensions
90 x 4,4 x 6,6 cm
Size
90 cm
W-DRAIN NEXT: WALL-MOUNTED LINEAR DRAINS
New Generation
The W-Drain Next series is the ideal solution for modern bathrooms, combining aesthetics, functionality, and durability. The drains are made of AISI 304 stainless steel, ensuring corrosion resistance and high strength. They stand out with a wide range of colors, including inox, black, and gold, making them easy to match with any interior. The reversible decorative panel allows for personalization, and the advanced design eliminates the need for spacer inserts.
W-DRAIN NEXT BLACK – THE BLACK OF ELEGANCE AND DURABILITY
Model W-Drain Next Black is a unique wall-mounted drain with a matte finish coated in durable Teflon. This not only gives the drain a stylish look but also makes it resistant to aggressive detergents and cleaning agents. The reversible panel lets you choose between a smooth surface or a tile insert, adapting to various bathroom styles.
The 55 l/min flow rate and the wet siphon with a basket strainer ensure reliability even with heavy use. Adjustable legs and easy installation make W-Drain Next Black a practical and aesthetic choice. The product has been designed for maximum user convenience, and its advanced construction guarantees long-term durability.
MATTE FINISH FOR PERFECT AESTHETICS
The black finish of the W-Drain Next Black drain is synonymous with elegance and modernity. The Teflon coating not only gives the product an attractive appearance but also increases its resistance to abrasion and chemical agents. As a result, the drain maintains its quality for years and integrates perfectly with other bathroom elements.
EASE OF INSTALLATION AND USE
Adjustable legs and no need for spacer inserts make the installation of W-Drain Next Black quick and simple. The basket strainer allows for easy cleaning, minimizing maintenance requirements. This practical solution is perfect for those who value convenience.
DURABILITY AND RELIABILITY FOR YEARS
Constructed from AISI 304 stainless steel, with a 10-year warranty on the body and a well-planned design, the W-Drain Next Black is an investment for years to come. The enlarged siphon chamber and high flow rate ensure reliability even under heavy load.
TECHNICAL DATA
BRAND: Balneo
SERIES: W-DRAIN NEXT
COLOR: Black
SIZE: 90 cm
DIMENSIONS: 90 × 4.4 × 6.6 cm
WEIGHT: 3.4 kg
MATERIAL: AISI 304 stainless steel
FINISH: Teflon coating
DRAIN TYPE: Linear
FLOW RATE: 55 l/min
DRAIN DIAMETER: 40 mm
GRATE WIDTH: 4.4 cm
FLANGE WIDTH: 2 cm
ROTATABLE SIPHON: No
TILE INSERTABLE PANEL: Yes
MINIMUM INSTALLATION DEPTH: 66 mm
INCLUDED: body, reversible panel, siphon, strainer, sealing mat, adjustable legs, 40/50 reducer, panel lifting hook
EAN: 5905591096294
SKU: A0301020102-4
WARRANTY: 10 years on the body; 2 years on the coating
YOUR SAFETY
is important to us
10 YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURN
FAQ
What is the drain made of?
The drain is made of stainless steel.
Is the black drain matte or glossy?
The W-Drain Next Black drain has a matte finish. It is coated with Teflon. The color matches our other products.
What is the water flow rate of the drain?
The water flow rate is 55 l/min.
Do the drains have a reversible panel?
Yes, the drain has a reversible panel that allows tile insertion.
What is the panel width?
The panel width is 4.4 cm.
What is the minimum installation depth for this drain?
66 mm.
Are the drain legs adjustable?
Yes, the drain legs are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not designed for that type of installation.
Does the drain have a dry siphon?
No. The drain is equipped with a wet siphon.
Can the siphon be replaced with a dry one?
No.
Does the drain come with the full installation kit?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
The thickness is 1 mm.
How do you remove the panel from the linear drain?
A tool is included with the kit that allows you to lift the panel from the linear drain.
Is it possible to purchase an additional panel for the linear drain?
Yes, an additional panel can be purchased separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays securely in place in the drain.
