Odpływ podłogowy kwadratowy Balneo SQ-Drain 20 x 20 cm dwustronny ze stali nierdzewnej szczotkowanej
Odpływ podłogowy kwadratowy Balneo SQ-Drain 20 x 20 cm dwustronny ze stali nierdzewnej szczotkowanej
Technical data
Brand
Balneo
EAN
5907699005239
SKU
SQ20
Producer code
5907699005239
Series
SQ-DRAIN
Drain type
Square
Length
20 cm
Minimum installation depth
52 mm
Drain diameter
40 mm
Width of drain cover
15 cm
Finishing
Stainless steel
Design
Smooth
Surrounding flange
2 cm
Possibility to paste a plate
Yes
Gutter and grate thickness
1,2 cm
Swivel siphon
No
Throughput
49 l/min.
Siphon included
Yes
Contents of the kit
Casing, double-sided panel, siphon trap, sediment trap, sealing mat, adjustable feet, reduction 40/50, hook for removing panel
Material
AISI 303 stainless steel
Colour
Chrome
Weight
3 kg
Dimensions
20 x 20 x 5,2 cm
Size
20 cm
SQ-DRAIN SQUARE DRAINS: COMPACT SOLUTION
for Any Bathroom
The SQ-Drain series offers modern and functional square drains distinguished by high-quality craftsmanship and universal design. Made from AISI 304 stainless steel, products in this series ensure durability, corrosion resistance, and an attractive appearance, seamlessly fitting into any bathroom style. The reversible panel allows you to choose between a smooth surface or tile integration, enabling full customization of your space.
SQ-DRAIN INOX - DURABILITY AND ELEGANCE IN ONE
The SQ-Drain Inox model is a classic proposal crafted from high-quality matte-finished stainless steel. Available in two sizes (15×15 cm and 20×20 cm), it offers versatility and fits various bathroom projects. The drain features a basket strainer and adjustable legs, ensuring easy installation and user convenience.
The dual-function panel lets you tailor the appearance to your needs—smooth surface for minimalist designs or tile integration for a more personalized effect. Increased water flow up to 55 l/min and a wet siphon make the drain reliable even under heavy use.
FLEXIBILITY AND ADAPTABILITY FOR ANY BATHROOM
The SQ-Drain Inox model is an excellent choice for those who value versatile solutions. Available in two sizes and with a customizable panel, this product fits both modern and classic bathroom designs. It offers the flexibility to meet the needs of the most demanding users.
EASE OF INSTALLATION AND MAINTENANCE

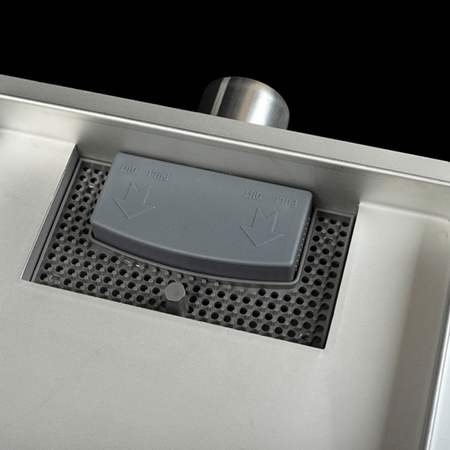

The set includes a sealing mat, reducer, and a removal hook for the panel, greatly simplifying installation. The siphon design and basket strainer ensure quick and easy cleaning, while the adjustable legs guarantee precise alignment in any bathroom.
QUALITY AND DURABILITY GUARANTEE
Products from the SQ-Drain series stand out for their high-quality craftsmanship. The offered 10-year warranty on the body confirms their reliability and durability. The SQ-Drain Inox model is an investment for years, providing functionality and elegance in one.
TECHNICAL DATA
BRAND: Balneo
SERIES: SQ DRAIN
COLOR: Chrome
SIZE: 20 cm
DIMENSIONS: 20 x 20 x 5.2 cm
WEIGHT: 3 kg
MATERIAL: AISI 303 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Square
FLOW RATE: 49 l/min
PATTERN: Smooth
OUTLET DIAMETER: 40 mm
DRAIN COVER WIDTH: 20 cm
CHANNEL AND GRATE THICKNESS: 1.2 cm
SURROUNDING COLLAR: 2 cm
ROTATING SIPHON: No
TILE INTEGRATION POSSIBLE: Yes
MINIMUM INSTALLATION DEPTH: 52 mm
INCLUDED: body, reversible panel, siphon, strainer, sealing mat, adjustable legs, 40/50 reducer, panel removal hook
EAN: 5907699005239
SKU: SQ20
WARRANTY: 10 years
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What material is the drain made of?
The drain is made of stainless steel.
What is the water flow rate of the drain?
The water flow rate is 49 l/min.
Does the drain have a reversible panel?
Yes, the drain features a reversible panel that can accommodate a tile.
What are the panel dimensions?
The panel size is 15×15 cm or 20×20 cm.
What is the minimum installation depth?
52 mm
Are the drain legs adjustable?
Yes, the drain legs are adjustable.
Can the drain be installed in vinyl panels?
This drain is not designed for vinyl panel installation.
Does the drain have a dry siphon?
No. The drain is equipped with a wet siphon.
Can the siphon be replaced with a dry one?
No.
Is the full installation set included?
Yes. Everything needed for installation is included.
What is the metal thickness?
The thickness is 1 mm.
How do you remove the panel from the linear drain?
A key is included in the set to lift the panel from the linear drain.
Can I purchase an additional panel?
Yes, you can buy a panel for this drain or a decorative panel.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays firmly in place.
