Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 80 cm chrom dwustronny
Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 80 cm chrom dwustronny
Technical data
Brand
Balneo
EAN
5905591091046
SKU
A0301010102-3
Producer code
5905591091046
Series
W-DRAIN NEXT
Throughput
55 l/min.
W-DRAIN NEXT: INNOVATIVE SERIES
wall drains

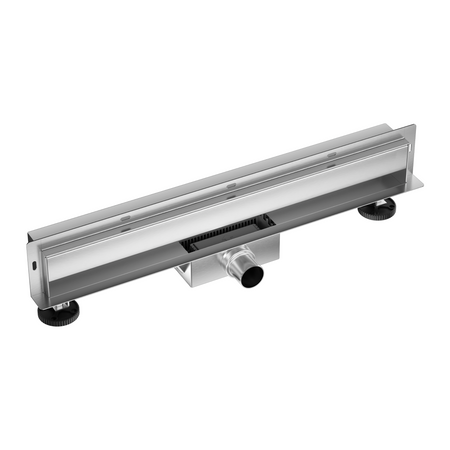

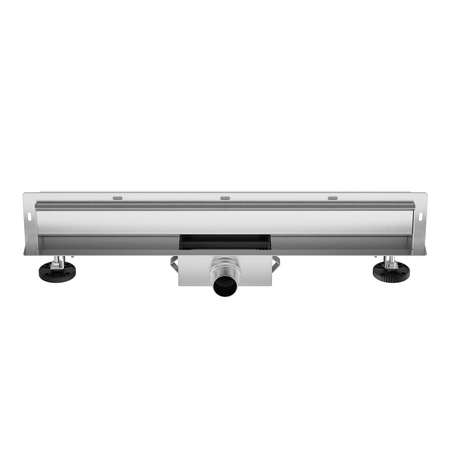

The W-Drain Next series of wall-mounted linear drains combines modern design, high functionality, and durability. Made of AISI 304 stainless steel, these products meet the highest quality standards. A wide range of available finishes—including inox, black, and gold—allows perfect integration into any bathroom project. Thanks to their advanced construction, these drains are easy to install and provide reliable everyday performance.
W-DRAIN NEXT INOX – ELEGANCE AND FUNCTIONALITY IN ONE
The W-Drain Next Inox model is an exceptional wall-mounted drain that marries robust construction with minimalist aesthetics. Crafted from premium stainless steel, it is corrosion-resistant and built to last. Its reversible cover lets you choose between a smooth surface or a tile-inset finish, providing design flexibility.

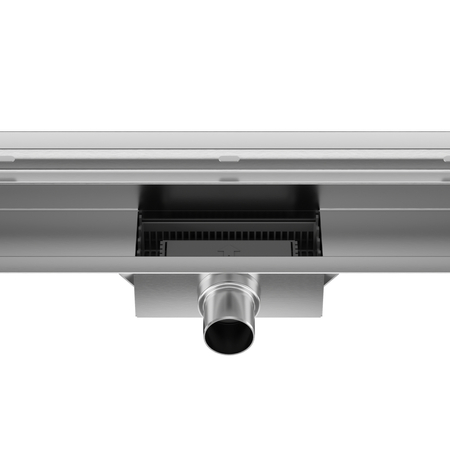

With a flow rate of 55 l/min and a wet trap featuring an easy-access debris basket, this drain ensures dependable performance even under heavy use. Adjustable legs allow precise leveling, and its advanced design eliminates the need for spacers. All required mounting accessories—including a sealing mat, panel removal hook, and reducers—are included.
Thanks to thoughtful engineering and high-grade materials, the W-Drain Next Inox is the perfect choice for those seeking both style and functionality.
SIMPLE INSTALLATION AND ADJUSTMENT

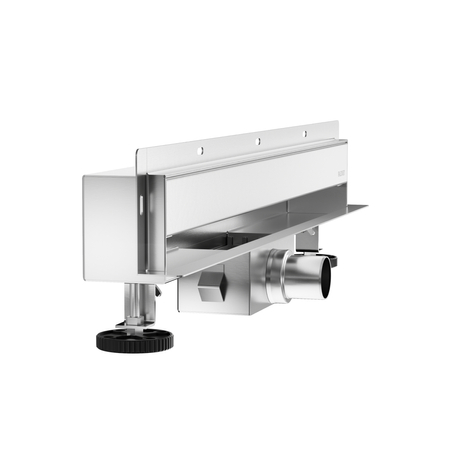

The W-Drain Next Inox was designed for ease of installation. Its adjustable legs allow precise positioning in various mounting conditions. A rotating trap makes it easy to align with the drain outlet, and no spacers are needed, simplifying the entire process.
MINIMALIST DESIGN AND VERSATILITY
The sleek look of the W-Drain Next Inox fits seamlessly into diverse interior styles. Its reversible decorative cover allows personalization, and the slim 4.4 cm width adds elegance. Ideal for both minimalist and classic bathrooms.
BUILT TO LAST
Using top-quality materials and advanced robotic welding, the W-Drain Next Inox offers a 10-year warranty on its body. Enhanced flow capacity and resistance to heavy use ensure long-term reliability.
TECHNICAL SPECIFICATIONS
BRAND: Balneo
SERIES: W-DRAIN NEXT
COLOR: Chrome
SIZE: 80 cm

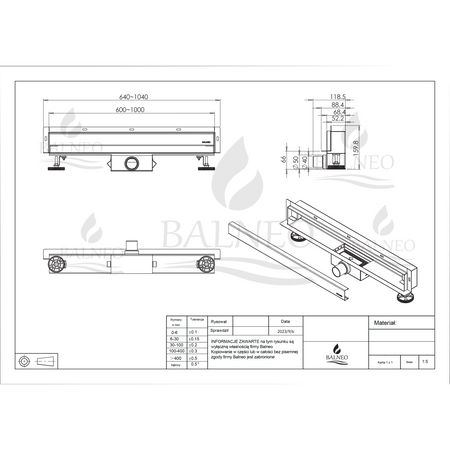

DIMENSIONS: 80 × 4.4 × 6.6 cm
WEIGHT: 5 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW CAPACITY: 55 l/min
OUTLET DIAMETER: 40 mm
COVER WIDTH: 4.4 cm
FLANGE WIDTH: 2 cm
ROTATABLE TRAP: No
TILE INSERTABLE: Yes
MINIMUM INSTALLATION DEPTH: 66 mm

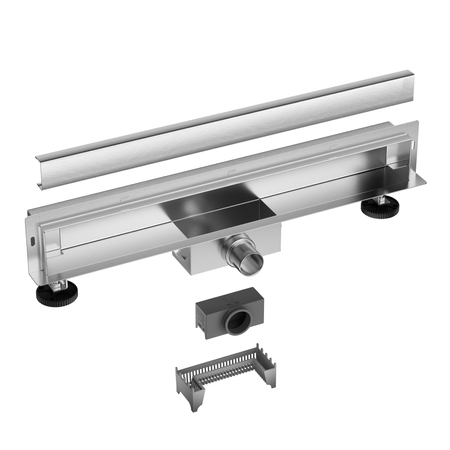

IN THE SET: body, reversible cover, trap, debris basket,
sealing mat, adjustable legs, 40/50 reducer, panel removal hook
EAN: 5905591091046
SKU: A0301010102-3
WARRANTY: 10 years (2 years on finish)
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.
What is the water flow rate?
The water flow rate is 55 l/min.
Does the drain have a reversible panel?
Yes, it has a reversible panel that can accommodate a tile.
What is the panel width?
The panel width is 4.4 cm.
What is the minimum installation depth?
66 mm
Are the drain feet adjustable?
Yes, the feet are adjustable.
Can this drain be installed in vinyl panels?
No, it is not designed for that type of installation.
Is there a dry trap in the drain?
No, it is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain come with all installation components?
Yes. Everything needed for installation is included.
What is the metal thickness?
1 mm.
How to remove the panel from the linear drain?
A removal key is included to lift the panel out of the linear drain.
Can I purchase an additional panel?
Yes, panels are sold separately.
Is the panel fixed in the linear drain?
Yes, the included spacers keep the panel securely in place.
