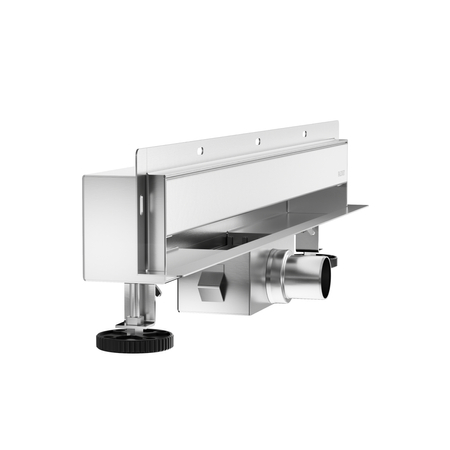

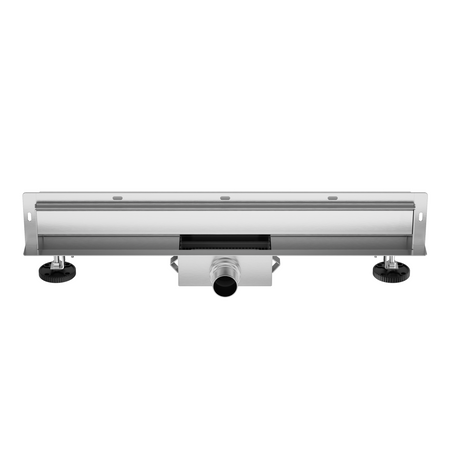

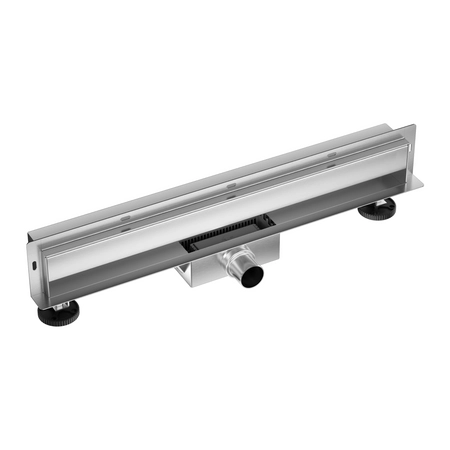

Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 60 cm chrom dwustronny
Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 60 cm chrom dwustronny
Technical data
Brand
Balneo
EAN
5905591091022
SKU
A0301010102-1
Producer code
5905591091022
Series
W-DRAIN NEXT
Throughput
55 l/min.
W-DRAIN NEXT: INNOVATIVE SERIES
wall drains
The W-Drain Next series of wall-mounted linear drains combines modern design, high functionality, and durability. Made from AISI 304 stainless steel, these products meet the highest quality standards, and the wide range of available finishes—such as inox, black, or gold—allows perfect integration into any bathroom project. Thanks to their advanced construction, these drains are easy to install and provide reliable performance in daily use.
W-DRAIN NEXT INOX – ELEGANCE AND FUNCTIONALITY IN ONE
The W-Drain Next Inox model is a unique wall drain that blends robust construction with minimalist styling. Manufactured from high-grade stainless steel, it offers excellent corrosion resistance and long-lasting durability. The reversible panel lets you choose between a smooth finish or tile insertion for maximum design flexibility.

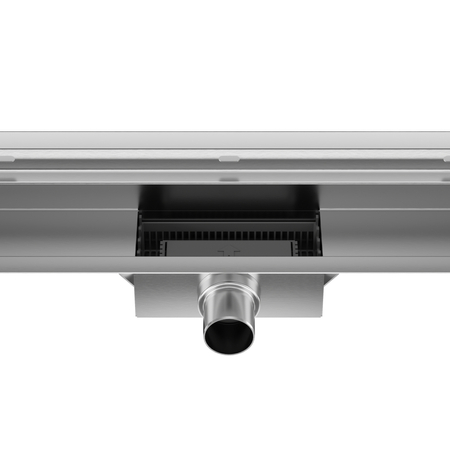

With a flow rate of 55 l/min and a wet trap featuring easy access to the basket strainer, it delivers dependable performance even under heavy use. Adjustable feet enable precise positioning, and the advanced design eliminates the need for spacer inserts. The complete installation kit includes a sealing mat, panel-removal hook, and reducers.
Thanks to its thoughtful engineering and premium materials, W-Drain Next Inox is the ideal choice for anyone seeking both aesthetic appeal and functional reliability.
SIMPLE INSTALLATION AND ADJUSTMENT
The W-Drain Next Inox model is designed for easy installation. Adjustable feet allow precise positioning in various conditions. The rotating trap adapts effortlessly to the plumbing layout, and the elimination of spacer inserts streamlines the entire installation process.
MINIMALIST DESIGN AND VERSATILITY
The contemporary appearance of W-Drain Next Inox complements a wide range of interior styles. The reversible decorative panel offers personalization, and its slim 4.4 cm width adds an elegant touch. Perfect for both minimalist and classic bathroom designs.
LONG-LASTING DURABILITY
Leveraging top-quality materials and advanced production techniques such as robotic welding, W-Drain Next Inox comes with a 10-year warranty on the body. Its enhanced flow capacity and robust performance ensure years of dependable service.
TECHNICAL SPECIFICATIONS
BRAND: Balneo
SERIES: W-DRAIN NEXT
COLOR: Chrome
SIZE: 60 cm
DIMENSIONS: 60 × 4.4 × 6.6 cm
WEIGHT: 5 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 55 l/min
DRAIN DIAMETER: 40 mm
DRAIN COVER WIDTH: 4.4 cm
SURROUNDING FLANGE: 2 cm
SWIVEL TRAP: No
TILE INSERTION OPTION: Yes
MINIMUM INSTALLATION DEPTH: 66 mm

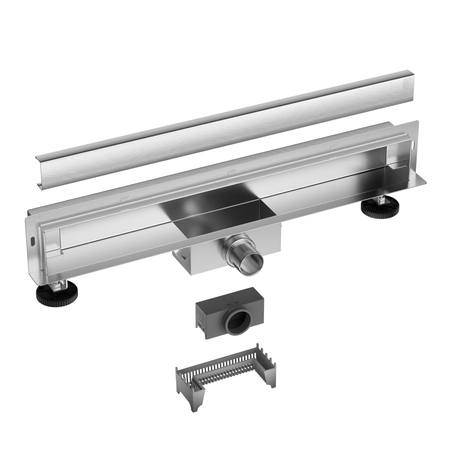

INCLUDED: body, reversible panel, trap, strainer,
sealing mat, adjustable feet, 40/50 reducer, panel removal hook
EAN: 5905591091022
SKU: A0301010102-1
WARRANTY: 10 years, 2 years on coating
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURNS
FAQ
What is the drain made of?
The drain is made of stainless steel.
What is the water flow rate of the drain?
The water flow rate is 55 l/min.
Do the drains have a reversible panel?
Yes, the drain features a reversible panel that allows tile installation.
What is the width of the panel?
The panel width is 4.4 cm.
What is the minimum installation depth for this drain?
66 mm
Are the drain’s feet adjustable?
Yes, the drain’s feet are adjustable.
Can the drain be installed in vinyl panels?
This drain is not dedicated to that type of installation.
Does the drain have a dry trap?
No. The drain is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain come with a complete installation kit?
Yes. All required installation accessories are included.
What is the metal thickness?
1 mm.
How do you remove the panel from the linear drain?
The included key allows you to lift the panel from the linear drain.
Can a panel be purchased separately?
Yes, the panel can be purchased separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays firmly in place.
