Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 70 cm chrom dwustronny
Odpływ liniowy ścienny Balneo W-Drain NEXT 2w1 70 cm chrom dwustronny
Technical data
Brand
Balneo
EAN
5905591091039
SKU
A0301010102-2
Producer code
5905591091039
Series
W-DRAIN NEXT
Throughput
55 l/min.
W-DRAIN NEXT: INNOVATIVE SERIES
wall drains
The W-Drain Next series of wall linear drains combines modern design, high functionality and durability. Made of AISI 304 stainless steel, these products meet the highest quality standards, and the wide range of available finishes—such as inox, black or gold—allows for a perfect match to any bathroom project. Thanks to their advanced construction, the products in this series are easy to install and ensure reliability in everyday use.
W-DRAIN NEXT INOX – ELEGANCE AND FUNCTIONALITY IN ONE
Model W-Drain Next Inox is an exceptional wall drain that combines robust craftsmanship with minimalist design. Made from high-grade stainless steel, this drain is resistant to corrosion and built to last. The reversible panel allows you to choose between a smooth surface or the option to insert a tile, providing design flexibility.
With a flow rate of 55 l/min and a special wet trap with easy access to the basket strainer, it guarantees reliability even under heavy use. Adjustable legs enable precise positioning of the drain, and the advanced design eliminates the need for spacer inserts. All necessary installation accessories are included, such as a sealing mat, a panel removal hook, and reducers.
Thanks to its thoughtful construction and the use of advanced materials, W-Drain Next Inox is the ideal choice for those seeking both aesthetic and functional solutions.
EASY INSTALLATION AND ADJUSTMENT
The W-Drain Next Inox model was designed with ease of installation in mind. Adjustable legs allow precise positioning of the drain in various installation conditions. The use of a rotating trap enables effortless alignment with the plumbing layout, and the elimination of spacer inserts simplifies the entire installation process.
MINIMALIST DESIGN AND VERSATILITY
The modern look of W-Drain Next Inox perfectly fits a variety of interior styles. The reversible decorative panel allows customization, and its slim 4.4 cm width adds a touch of elegance. This solution is ideal for both minimalist and more classic bathrooms.
DURABILITY FOR YEARS
Thanks to the use of top-quality materials and advanced production technologies, such as robotic welding, W-Drain Next Inox offers a 10-year warranty on the body. Increased flow capacity and resistance to heavy use ensure the product remains reliable over time.
TECHNICAL DATA
BRAND: Balneo
SERIES: W-DRAIN NEXT
COLOR: Chrome
SIZE: 70 cm
DIMENSIONS: 70 × 4.4 × 6.6 cm
WEIGHT: 5 kg
MATERIAL: AISI 304 stainless steel
FINISH: Stainless steel
DRAIN TYPE: Linear
FLOW RATE: 55 l/min
OUTLET DIAMETER: 40 mm
COVER WIDTH: 4.4 cm
FLANGE HEIGHT: 2 cm
ROTATING TRAP: No
TILE INSERT OPTION: Yes
MINIMUM INSTALLATION DEPTH: 66 mm

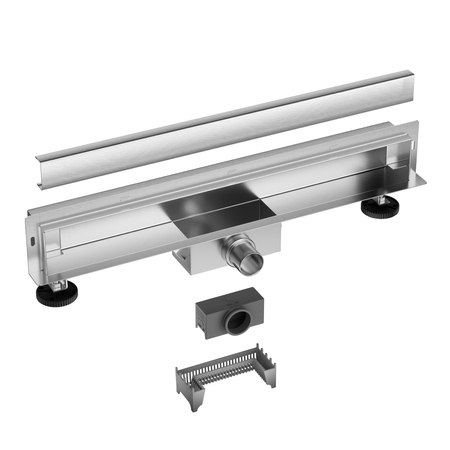

IN THE SET: body, reversible panel, trap, strainer basket,
sealing mat, adjustable legs, 40/50 reducer, panel removal hook
EAN: 5905591091039
SKU: A0301010102-2
WARRANTY: 10 years, 2 years on coating
YOUR SAFETY
is important to us
10-YEAR WARRANTY
TECHNICAL SUPPORT
PZH CERTIFICATE
90-DAY RETURN
FAQ
What material is the drain made of?
The drain is made of stainless steel.
What is the water flow capacity of the drain?
The water flow capacity is 55 l/min.
Does the drain have a reversible panel?
Yes, the drain has a reversible panel that allows you to install a tile.
What is the panel width?
The panel width is 4.4 cm.
What is the minimum installation depth for this drain?
66 mm.
Are the drain legs adjustable?
Yes, the drain legs are adjustable.
Is it possible to install the drain in vinyl panels?
This drain is not intended for that type of installation.
Is there a dry trap in the drain?
No. The drain is equipped with a wet trap.
Can the trap be replaced with a dry one?
No.
Does the drain come with the full installation set?
Yes. Our drains include everything needed for installation.
What is the metal thickness?
Thickness is 1 mm.
How do you remove the panel from the linear drain?
A key is included in the set that allows you to lift the panel from the linear drain.
Can you purchase the panel separately for the linear drain?
Yes, you can purchase the panel separately.
Is the panel fixed in the linear drain?
Yes, thanks to the included spacers, the panel stays securely in place in the drain.
